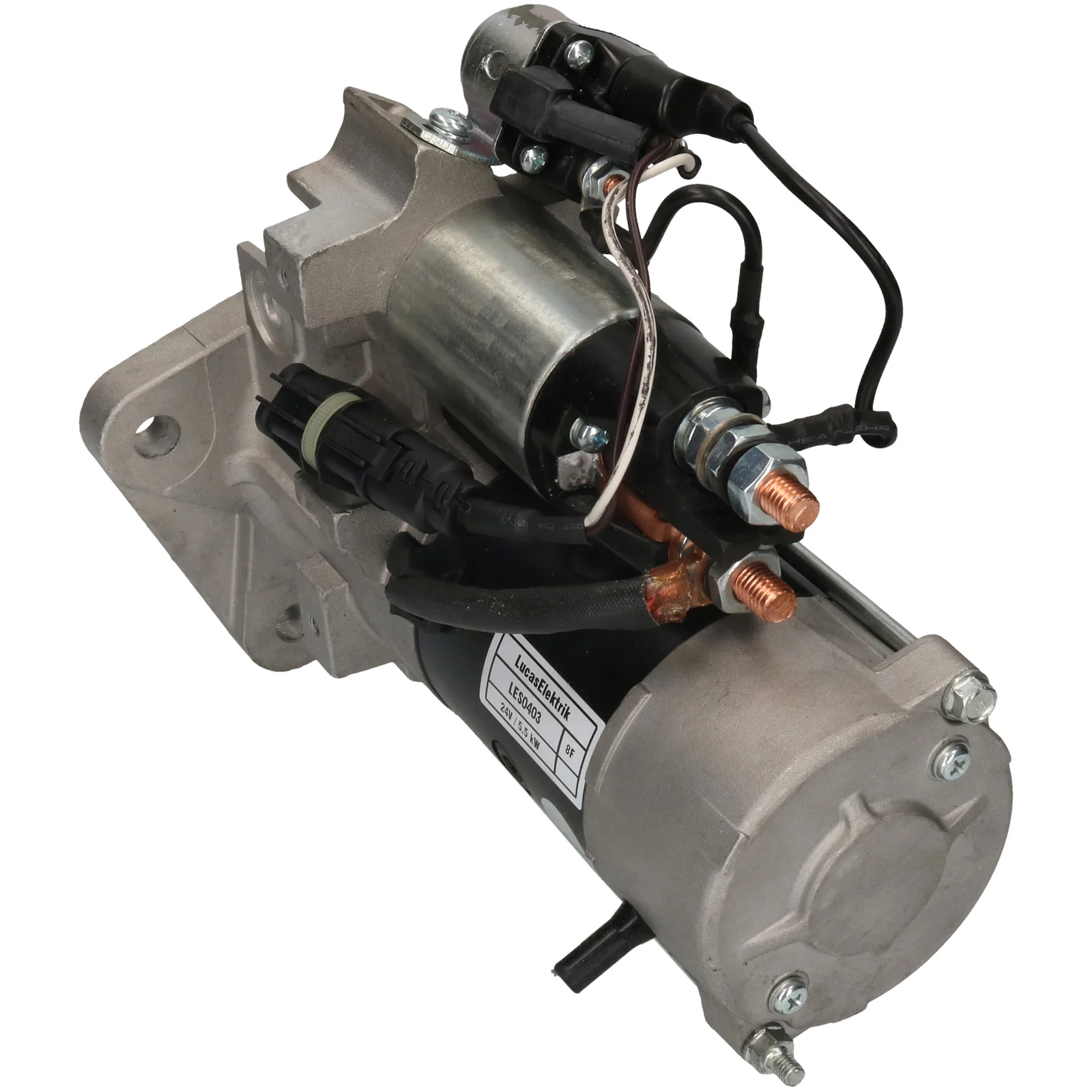

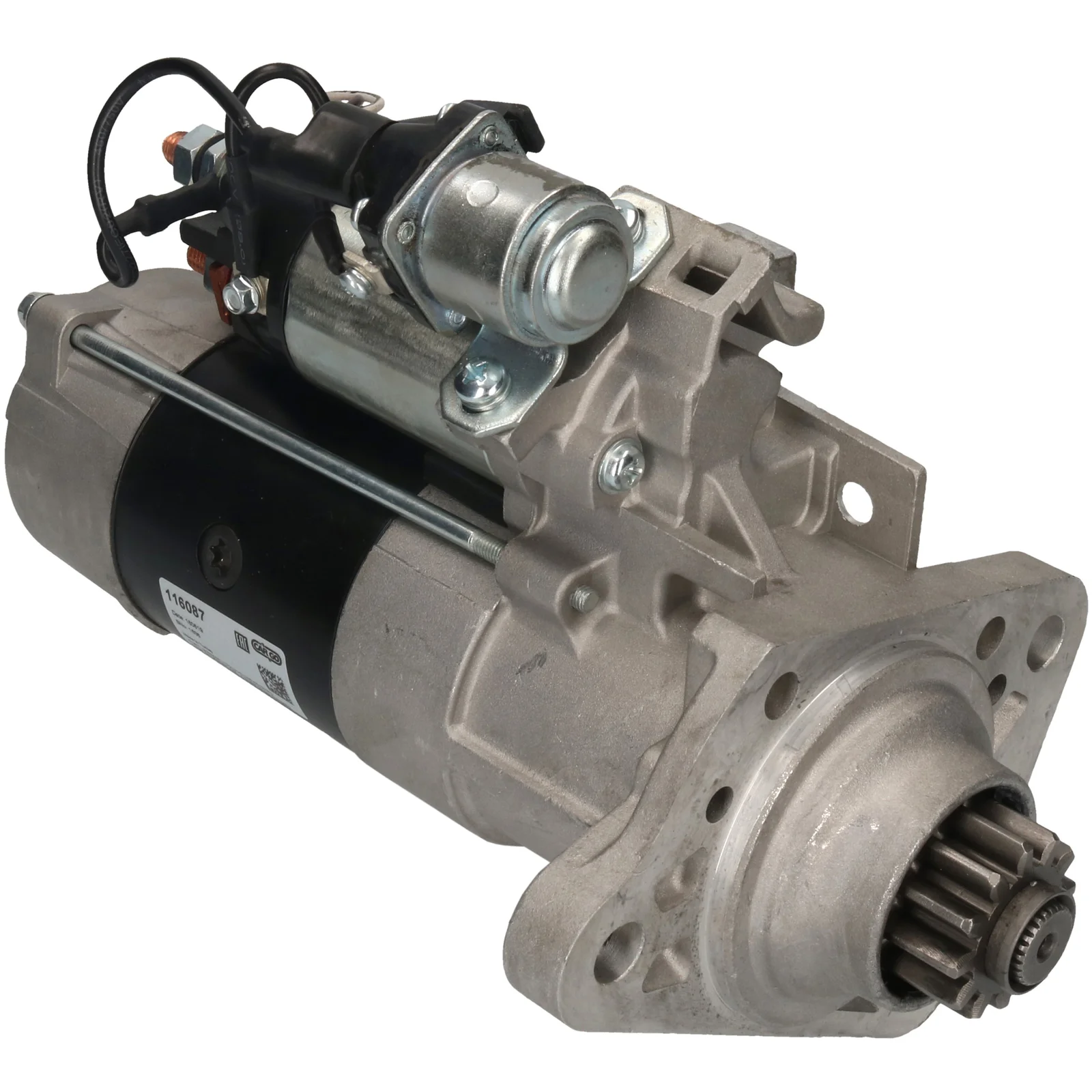

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116087

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 12, Rotation: CW

Description

MAN Starter motor 24V-5.5kW 24V - 5.5kW, 12k. A - 92mm, B - 48mm For Yourex product order 91-336-7238

Voltage: 24
kW: 5.5
Mounting flange: 92.00
Drive distance: 47.50
Mounting hole 3 mm: 14.00
Mounting hole 2 mm: 14.00
Mounting hole 1 mm: 14.00
Distance/back: 263.00
Distance/front: 55.50
Number of teeth: 12
B+: M10
Thread length mm: 8.00
Terminal 50: Plug
Gear type: GR
Distance 2: 129.50
Distance 3: 144.00
Distance mm: 88.00
Rotation: CW
Total length mm: 327.50
Number of mounting holes: 3 (0)

Files

  • OEM
    F032116087, M009T65571, M9T-65571, M9T65571, 51.26201-7238, 51.26201-9238, 1986S10029, 116087, 51262017238, 51262019238

  • Normalised article numbler
    cst35666, drs0986, f032116087, les0403, lrs04121, m009t65571, m9t65571, mitm9t65571, s5301s, 1986s10029, 30321n, 116087, 203052, 255252, 455284, 460252, 11025280, 551541123, 0986025280, 51262017238, 51262019238
  • Description
    MAN Starter motor 24V-5.5kW 24V - 5.5kW, 12k. A - 92mm, B - 48mm For Yourex product order 91-336-7238

    Voltage: 24
    kW: 5.5
    Mounting flange: 92.00
    Drive distance: 47.50
    Mounting hole 3 mm: 14.00
    Mounting hole 2 mm: 14.00
    Mounting hole 1 mm: 14.00
    Distance/back: 263.00
    Distance/front: 55.50
    Number of teeth: 12
    B+: M10
    Thread length mm: 8.00
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 129.50
    Distance 3: 144.00
    Distance mm: 88.00
    Rotation: CW
    Total length mm: 327.50
    Number of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116087, M009T65571, M9T-65571, M9T65571, 51.26201-7238, 51.26201-9238, 1986S10029, 116087, 51262017238, 51262019238

    • Normalised article numbler
      cst35666, drs0986, f032116087, les0403, lrs04121, m009t65571, m9t65571, mitm9t65571, s5301s, 1986s10029, 30321n, 116087, 203052, 255252, 455284, 460252, 11025280, 551541123, 0986025280, 51262017238, 51262019238
