Article no.: F032113609

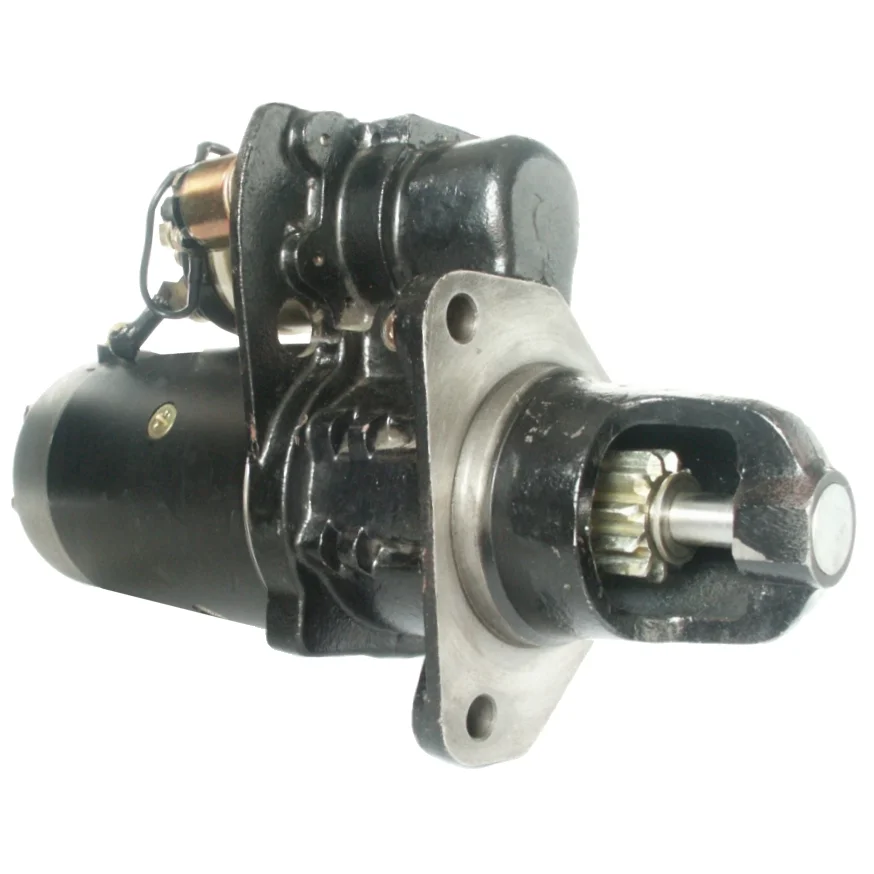

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 6.2, No./teeth: 11, Rotation: CW

Description

Mercedes Actros Starter motor 24V - 6.2kW, 11k Alternative: 91-365-6690 Mitsubishi type 7.5kW For Yourex product order 91-365-1837 Voltage: 24 kW: 6.2 Mounting flange: 92.00 Drive distance: 48.00 Mounting hole 3 mm: 13.50 Mounting hole 2 mm: 13.50 Mounting hole 1 mm: 13.50 Distance back: 288.50 Distance front: 101.00 Number of teeth: 11 B+ terminal: M12 Position/15a: 15 Terminal 15a: M6 Position/50: 45 Terminal 50: M6 Gear type: DD/GR Distance 2: 127.00 Distance 3: 127.00 Distance mm: 127.00 Rotation: CW Total length mm: 391.00 Clutch type: Dry Drive type: Steel Product info: BN Waterproof: No Oil sealed: No Number of mounting holes: 3 (0)

Files

  • OEM
    A0051515001, A005151500180, cs1269, F032113609, FS60PR006, M105R3031, M105R3031AM, M9T-80472, 0001 372 006, 005 151 5001, 005 151 6401, 006 151 1501, 0986 018 370, 113609, 0001372006, 1518391R, 0041515001, 0051515001, 005151500180

  • Normalised article numbler
    a0051515001, a005151500180, cs1269, cst10816, drs8370, f032113609, f042002099, f042003087, f042s02099, f042s03087, fs60pr006, lrs01961, m105r3031, m105r3031am, m9t80472, ms405, ms558, s0074, str2370, str2371, str4396, str80024, 8ea012586391, 30111n, 30111ndr, 101269, 104568, 113609, 203032, 203044, 220265, 220265a, 438242, 453281, 458198, 0001372006, 1518391r, 11018370, 0041515001, 0051515001, 0051516401, 0061511501, 551555123, 625022114, 0986018370, 0986018373, 005151500180
  • Description
    Mercedes Actros Starter motor 24V - 6.2kW, 11k Alternative: 91-365-6690 Mitsubishi type 7.5kW For Yourex product order 91-365-1837 Voltage: 24 kW: 6.2 Mounting flange: 92.00 Drive distance: 48.00 Mounting hole 3 mm: 13.50 Mounting hole 2 mm: 13.50 Mounting hole 1 mm: 13.50 Distance back: 288.50 Distance front: 101.00 Number of teeth: 11 B+ terminal: M12 Position/15a: 15 Terminal 15a: M6 Position/50: 45 Terminal 50: M6 Gear type: DD/GR Distance 2: 127.00 Distance 3: 127.00 Distance mm: 127.00 Rotation: CW Total length mm: 391.00 Clutch type: Dry Drive type: Steel Product info: BN Waterproof: No Oil sealed: No Number of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A0051515001, A005151500180, cs1269, F032113609, FS60PR006, M105R3031, M105R3031AM, M9T-80472, 0001 372 006, 005 151 5001, 005 151 6401, 006 151 1501, 0986 018 370, 113609, 0001372006, 1518391R, 0041515001, 0051515001, 005151500180

    • Normalised article numbler
      a0051515001, a005151500180, cs1269, cst10816, drs8370, f032113609, f042002099, f042003087, f042s02099, f042s03087, fs60pr006, lrs01961, m105r3031, m105r3031am, m9t80472, ms405, ms558, s0074, str2370, str2371, str4396, str80024, 8ea012586391, 30111n, 30111ndr, 101269, 104568, 113609, 203032, 203044, 220265, 220265a, 438242, 453281, 458198, 0001372006, 1518391r, 11018370, 0041515001, 0051515001, 0051516401, 0061511501, 551555123, 625022114, 0986018370, 0986018373, 005151500180
