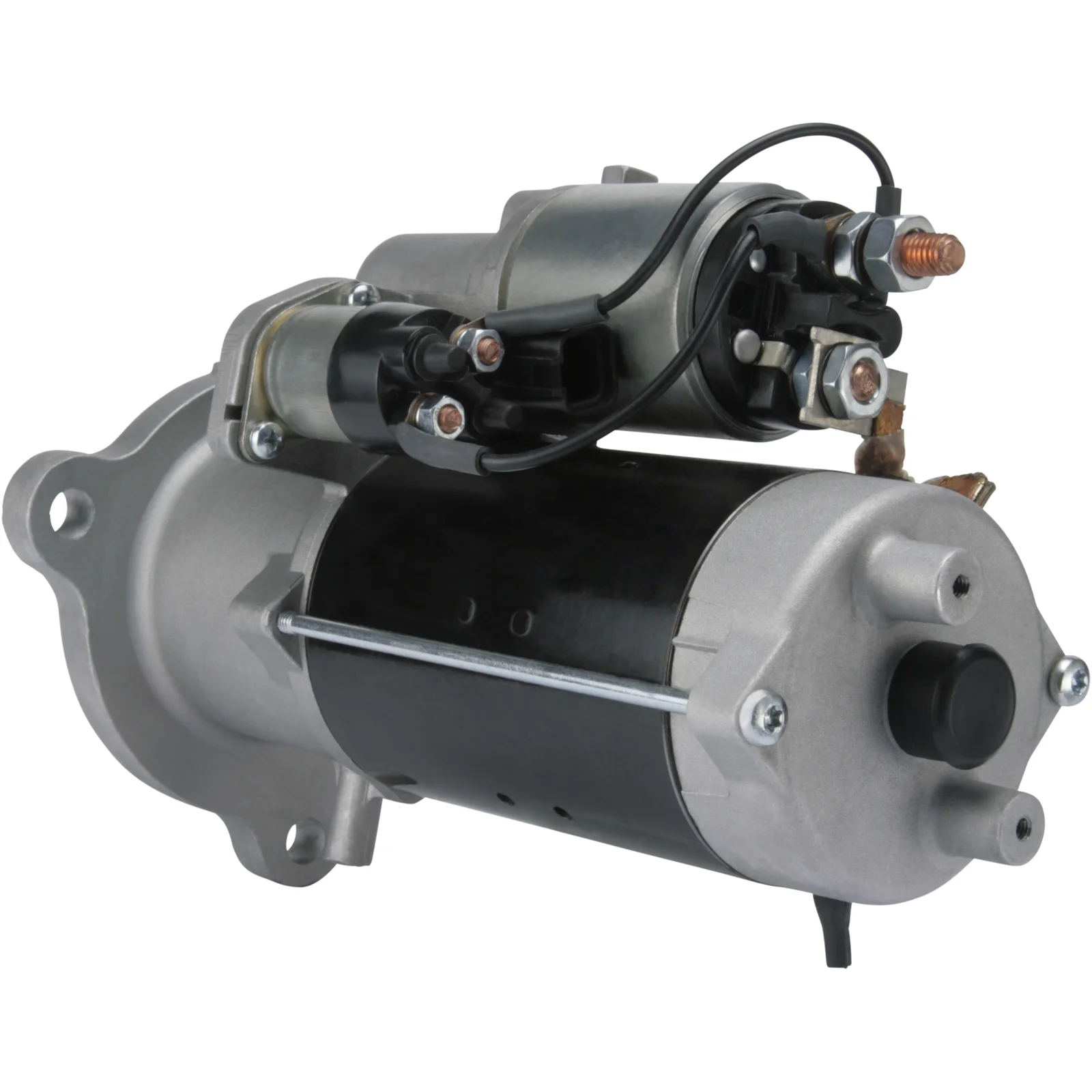

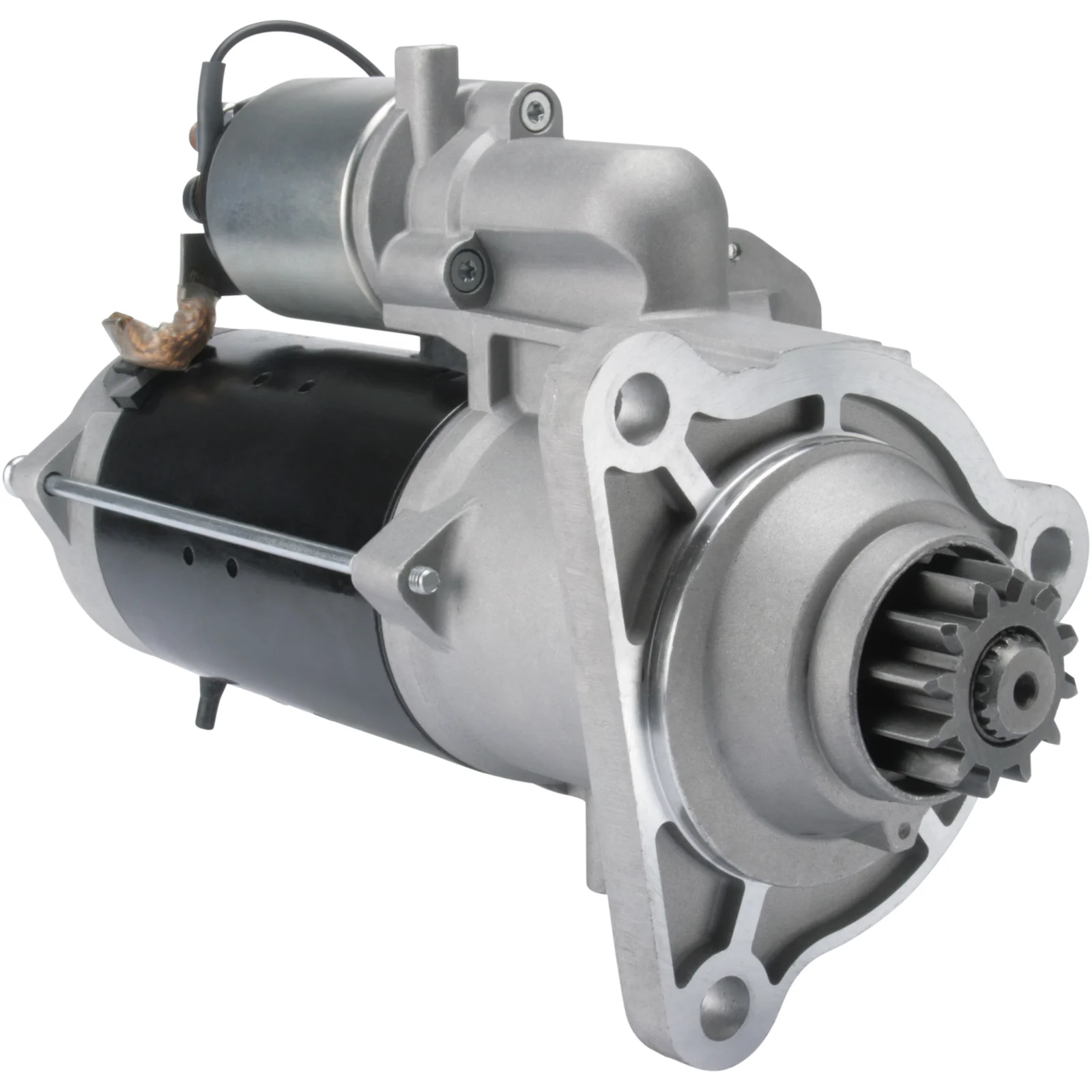

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114031

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 12, Rotation: CW

Description

MAN Starter motor 24V-5.5kW 24V - 5.5kW, 12k A - 92mm, B - 48mm Cannot REPLACE 91-336-7226 & 91-336-7199 (Mitsubishi M9T-61971, 62971) For Yourex product order F032114031

Voltage: 24
kW: 5.5
Mounting flange: 92.00
Drive distance: 48.00
Mounting hole 3 mm: 13.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 255.00
Distance / front: 51.50
Number / teeth: 12
B+: M10
Terminal 50: Plug
Gear type: GR
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
Total length mm: 323.50
Prod. info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    AZF4875, cs1583, F032114031, 0001 241 005, 0001 241 009, 0001 241 021, 11.139.604, 51.26201-7220, 51.26201-7228, 51.26201-7239, 51.26201-9220, 51.26201-9239, 0986 022 640, 1986S10180, 114031, 0001241005, 0001241009, 0001241021, 72442832, 51262017220, 51262017239

  • Normalised article numbler
    azf4875, cs1583, cst10683, drt2640, drt2640x, f032114031, f042002139, f042s02139, is9456, lrs02378, ms757, s0147, s5064, str2415, str50413, 1986s10180, 8111, 10707n, 19927n, 114031, 203007, 203062, 220730, 220730a, 454050, 460256, 460260, 0001241005, 0001241009, 0001241021, 11022640, 11139604, 72442832, 671005124, 0986022640, 51262017220, 51262017228, 51262017239, 51262019220, 51262019239
  • Description
    MAN Starter motor 24V-5.5kW 24V - 5.5kW, 12k A - 92mm, B - 48mm Cannot REPLACE 91-336-7226 & 91-336-7199 (Mitsubishi M9T-61971, 62971) For Yourex product order F032114031

    Voltage: 24
    kW: 5.5
    Mounting flange: 92.00
    Drive distance: 48.00
    Mounting hole 3 mm: 13.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 255.00
    Distance / front: 51.50
    Number / teeth: 12
    B+: M10
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 323.50
    Prod. info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4875, cs1583, F032114031, 0001 241 005, 0001 241 009, 0001 241 021, 11.139.604, 51.26201-7220, 51.26201-7228, 51.26201-7239, 51.26201-9220, 51.26201-9239, 0986 022 640, 1986S10180, 114031, 0001241005, 0001241009, 0001241021, 72442832, 51262017220, 51262017239

    • Normalised article numbler
      azf4875, cs1583, cst10683, drt2640, drt2640x, f032114031, f042002139, f042s02139, is9456, lrs02378, ms757, s0147, s5064, str2415, str50413, 1986s10180, 8111, 10707n, 19927n, 114031, 203007, 203062, 220730, 220730a, 454050, 460256, 460260, 0001241005, 0001241009, 0001241021, 11022640, 11139604, 72442832, 671005124, 0986022640, 51262017220, 51262017228, 51262017239, 51262019220, 51262019239
