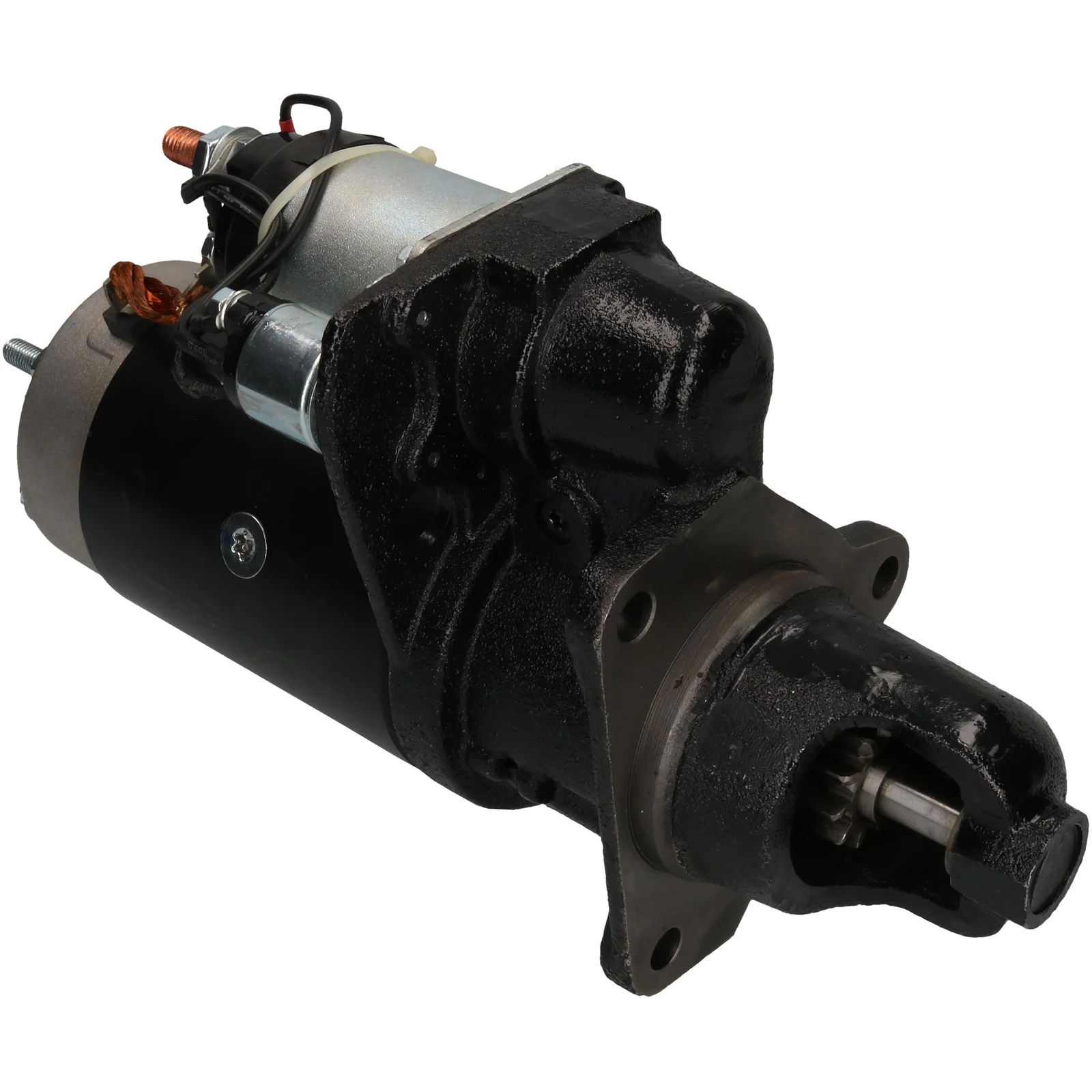

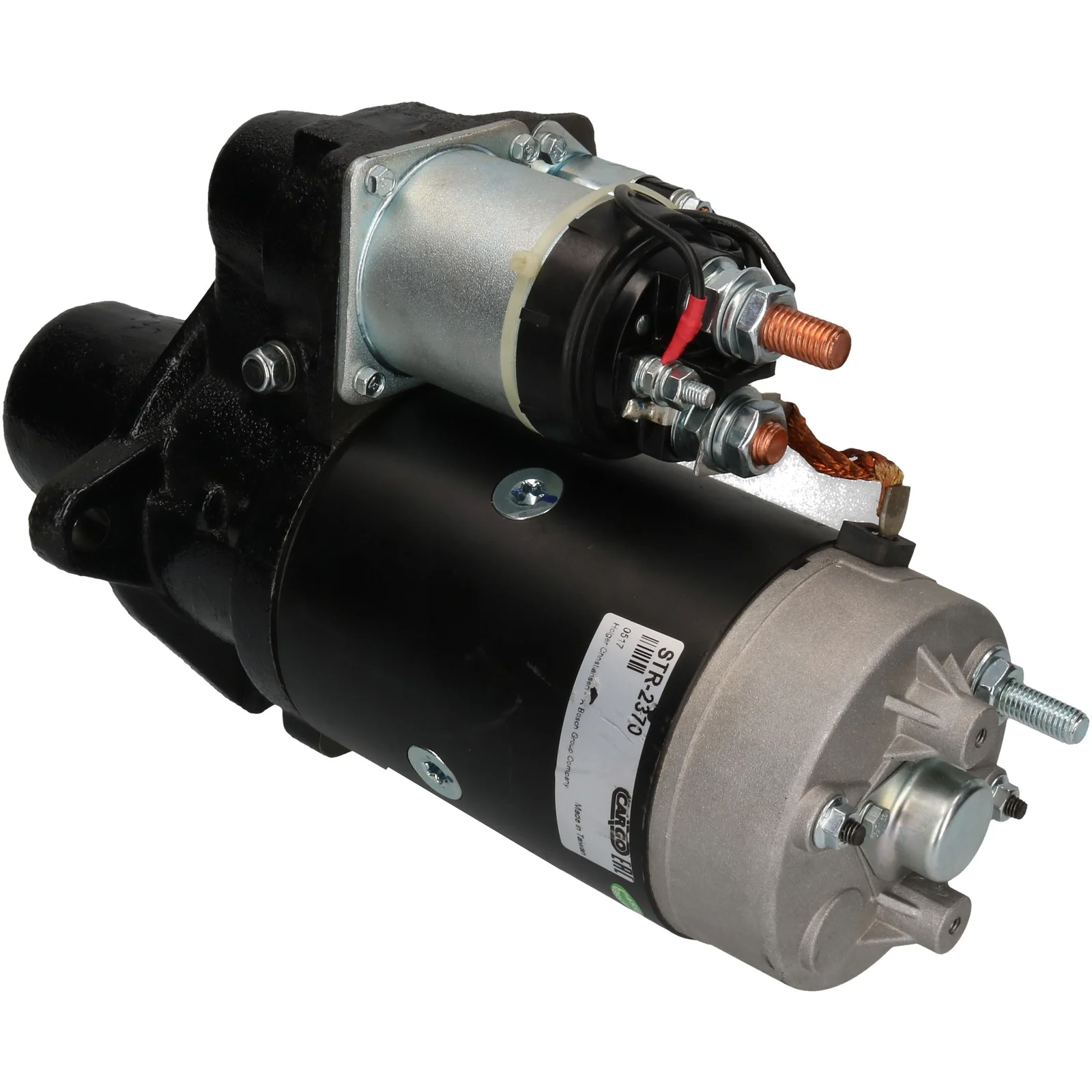

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111771

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 6.2, No./teeth: 9, Rotation: CW

Description

Voltage: 24
kW: 6.2
Mounting flange: 92.00
Drive distance: 47.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 278.00
Distance / front: 100.00
Number / teeth: 9
B+: M12
Position / B+: 60
Thread length mm: 22.00
Position / 50: 45
Terminal 50: M6
Gear type: DD
Distance 2: 127.00
Distance 3: 127.00
Distance mm: 127.00
Rotation: CW
Position / b-: 10
B-: M10
Total length mm: 390.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    A0041518801, A0041519401, A0051519401, azg4605, cs1077, F032111771, 11.131.016, 860615, 860705, 0001372001, 1516658R, 19024179, 0041518801, 0041519401, 0051519401

  • Normalised article numbler
    a0041518801, a0041519401, a0051519401, azg4605, bso7292, cs1077, cst10604, drs7320, drt0340, f032111771, f042002098, f042s02098, is1078, is9142, lrs01907, ms426, ms473, s0019, str22107, str2370, str50259, 8ea012586021, 8ea737494001, 4554, 8847, 30110n, 101077, 103671, 203015, 203031, 220260, 220260a, 452279, 458176, 860615, 860705, 0001372001, 1516658r, 8213261, 11017320, 11020340, 11131016, 19024179, 0041518801, 0041519401, 0051519401, 625023114, 0986017320, 0986017323
  • Description
    Voltage: 24
    kW: 6.2
    Mounting flange: 92.00
    Drive distance: 47.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 278.00
    Distance / front: 100.00
    Number / teeth: 9
    B+: M12
    Position / B+: 60
    Thread length mm: 22.00
    Position / 50: 45
    Terminal 50: M6
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 127.00
    Distance mm: 127.00
    Rotation: CW
    Position / b-: 10
    B-: M10
    Total length mm: 390.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A0041518801, A0041519401, A0051519401, azg4605, cs1077, F032111771, 11.131.016, 860615, 860705, 0001372001, 1516658R, 19024179, 0041518801, 0041519401, 0051519401

    • Normalised article numbler
      a0041518801, a0041519401, a0051519401, azg4605, bso7292, cs1077, cst10604, drs7320, drt0340, f032111771, f042002098, f042s02098, is1078, is9142, lrs01907, ms426, ms473, s0019, str22107, str2370, str50259, 8ea012586021, 8ea737494001, 4554, 8847, 30110n, 101077, 103671, 203015, 203031, 220260, 220260a, 452279, 458176, 860615, 860705, 0001372001, 1516658r, 8213261, 11017320, 11020340, 11131016, 19024179, 0041518801, 0041519401, 0051519401, 625023114, 0986017320, 0986017323
