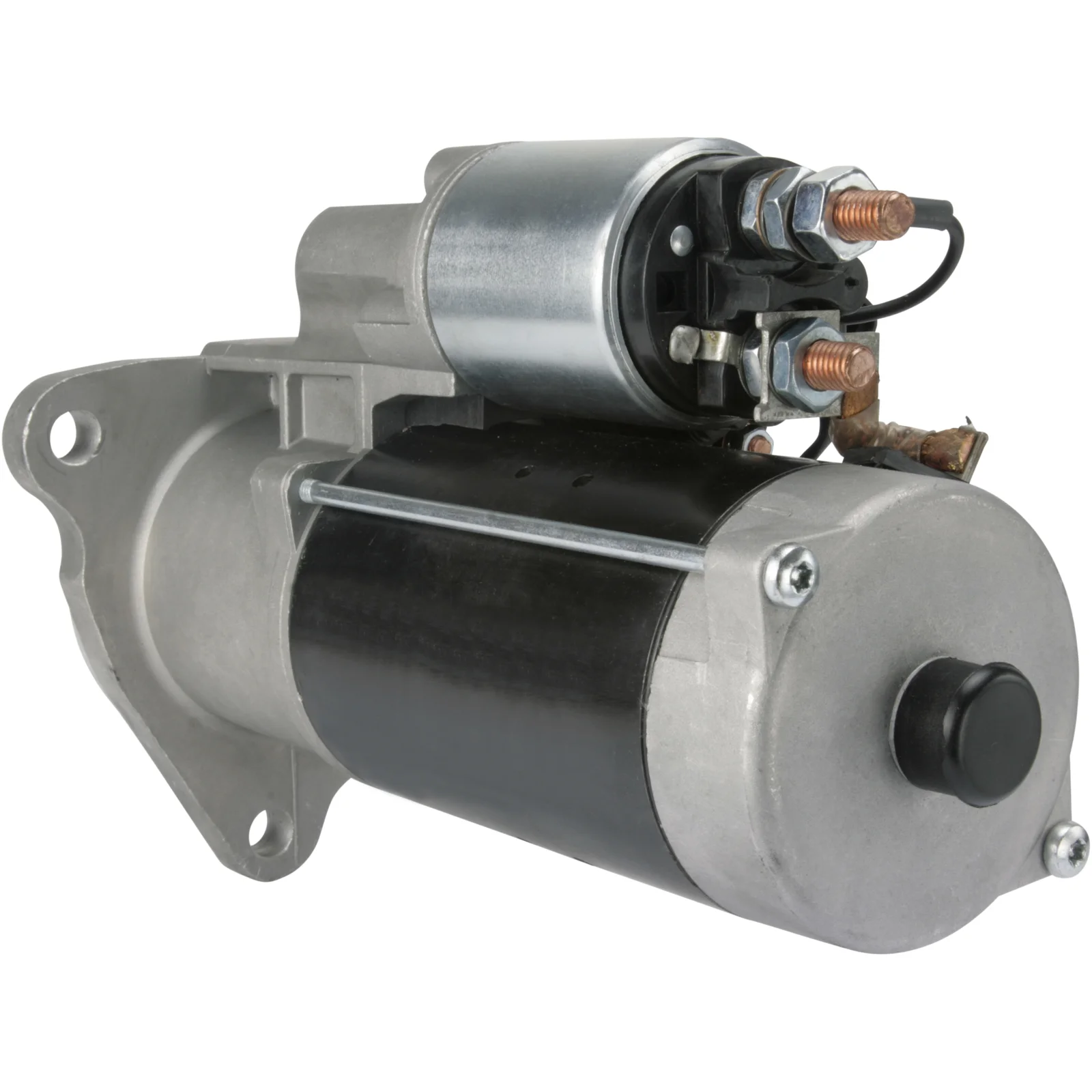

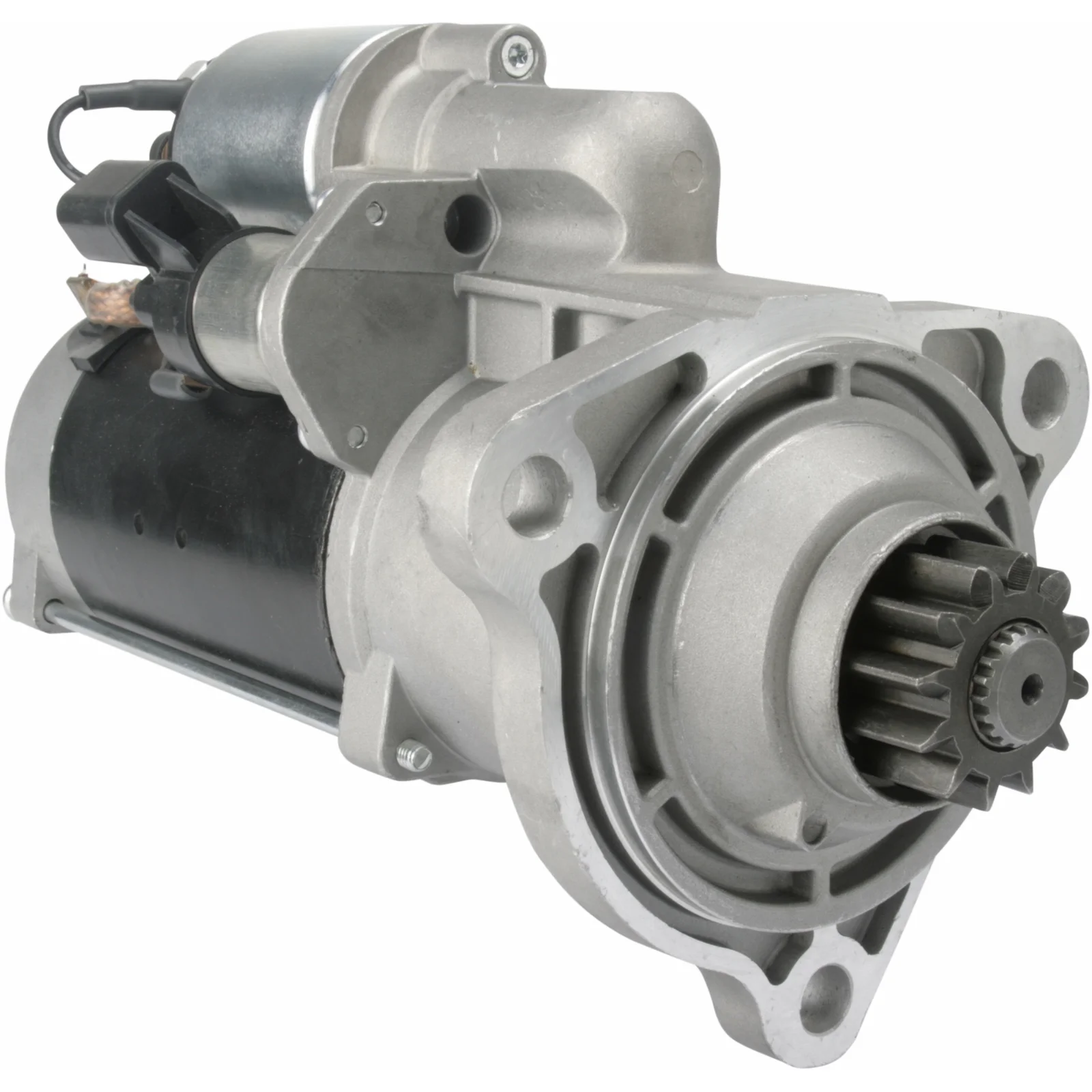

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114073

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 12, Rotation: CW

Description

DAF Starter motor 24V-5.5kW 24V - 5.5kW, 11/12k A - 110mm, B - 48mm Bosch look 12k / Prestolite look 11k Alternative: 91-120-2228, Prestolite original 11kgear, Prestolite drive is 100% compatible! For Yourex product order 91-120-2226

Voltage: 24
kW: 5.5
Mounting flange: 110.00
Drive distance: 47.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 256.00
Distance / front: 53.00
Number / teeth: 12
B+: M10
Position / 50: 20
Terminal 50: Plug
Gear type: DD/GR
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
Total length mm: 319.00
Drive type: Steel
Product info: BN
Remarks: w/ start relay
Number / mounting holes: 3 (0)

Files

  • OEM
    AZF4877, cs1420, F032114073, FS60PR020, M90R3544SE-V, STD1418R, 0001 241 006, 0001 241 015, 0001 241 020, 0001 261 007, 0001 261 008, 0001 261 012, 0001 261 013, 0001 261 044, 0001 261 045, 0001 261 069, 11.139.606, 0986 022 260, 1986S10045, 114073, 0001241006, 0001241015, 0001241020, 0001261007, 0001261008, 0001261012, 0001261013, 0001261044, 0001261045, 0001261069, 0001261070, 0001261085, 0001261086, 1667425, 1688625, 1739935, 1826121, 1843852, 1876369, 1956090, 2015153, 2134698, 19084252, 72442834, 081281013

  • Normalised article numbler
    azf4877, cs1420, cst10608, drt2260, drt2260x, f032114073, f042002138, f042002155, f042s02138, f042s02155, fs60pr020, lrs02341, m90r3544sev, ms759, ms778, s0194, s0261, s0882s, std1418r, str2414, 8ea012586491, 1986s10045, 19741n, 31501n, 101420, 106274, 114073, 203007, 220821, 220821a, 438250, 438590, 454013, 460256, 0001241006, 0001241015, 0001241020, 0001261007, 0001261008, 0001261012, 0001261013, 0001261044, 0001261045, 0001261069, 0001261070, 0001261085, 0001261086, 1667425, 1688625, 1739935, 1826121, 1843852, 1876369, 1956090, 2015153, 2134698, 08080300a, 8822260, 11022260, 11139606, 19084252, 42022260, 72442834, 081281013, 646017124, 901501123, 901515123, 0986022260, 0986022263, 0986022266, 0986023093
  • Description
    DAF Starter motor 24V-5.5kW 24V - 5.5kW, 11/12k A - 110mm, B - 48mm Bosch look 12k / Prestolite look 11k Alternative: 91-120-2228, Prestolite original 11kgear, Prestolite drive is 100% compatible! For Yourex product order 91-120-2226

    Voltage: 24
    kW: 5.5
    Mounting flange: 110.00
    Drive distance: 47.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 256.00
    Distance / front: 53.00
    Number / teeth: 12
    B+: M10
    Position / 50: 20
    Terminal 50: Plug
    Gear type: DD/GR
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 319.00
    Drive type: Steel
    Product info: BN
    Remarks: w/ start relay
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4877, cs1420, F032114073, FS60PR020, M90R3544SE-V, STD1418R, 0001 241 006, 0001 241 015, 0001 241 020, 0001 261 007, 0001 261 008, 0001 261 012, 0001 261 013, 0001 261 044, 0001 261 045, 0001 261 069, 11.139.606, 0986 022 260, 1986S10045, 114073, 0001241006, 0001241015, 0001241020, 0001261007, 0001261008, 0001261012, 0001261013, 0001261044, 0001261045, 0001261069, 0001261070, 0001261085, 0001261086, 1667425, 1688625, 1739935, 1826121, 1843852, 1876369, 1956090, 2015153, 2134698, 19084252, 72442834, 081281013

    • Normalised article numbler
      azf4877, cs1420, cst10608, drt2260, drt2260x, f032114073, f042002138, f042002155, f042s02138, f042s02155, fs60pr020, lrs02341, m90r3544sev, ms759, ms778, s0194, s0261, s0882s, std1418r, str2414, 8ea012586491, 1986s10045, 19741n, 31501n, 101420, 106274, 114073, 203007, 220821, 220821a, 438250, 438590, 454013, 460256, 0001241006, 0001241015, 0001241020, 0001261007, 0001261008, 0001261012, 0001261013, 0001261044, 0001261045, 0001261069, 0001261070, 0001261085, 0001261086, 1667425, 1688625, 1739935, 1826121, 1843852, 1876369, 1956090, 2015153, 2134698, 08080300a, 8822260, 11022260, 11139606, 19084252, 42022260, 72442834, 081281013, 646017124, 901501123, 901515123, 0986022260, 0986022263, 0986022266, 0986023093
