Article no.: F032112581

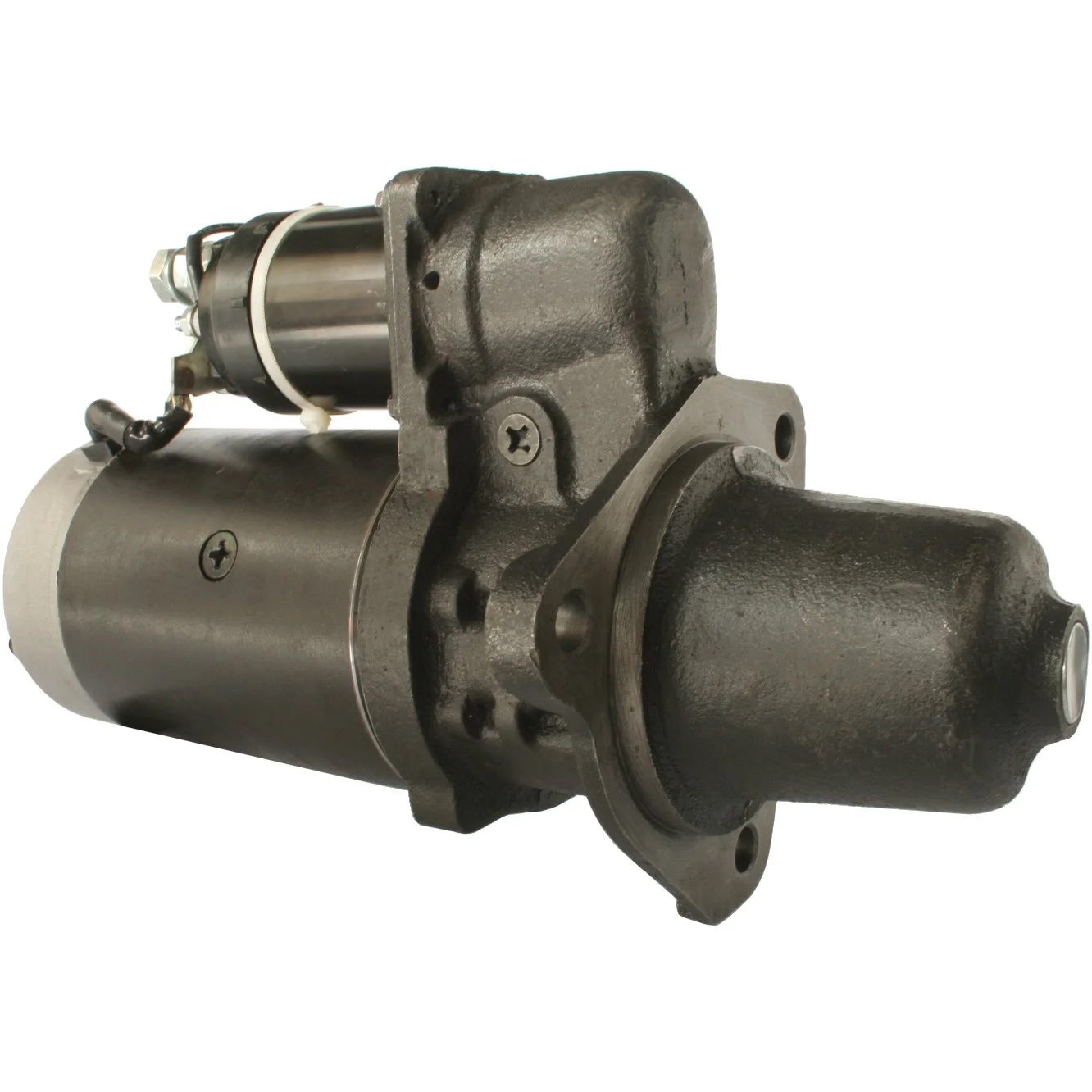

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 6.2, No./teeth: 11, Rotation: CW

Description

Daf 95XF Truck Alternator 24V-6.6kW 24V - 6.6kW, 11 teeth for Yourex product order 91-120-1878

Voltage: 24
kW: 6.2
Mounting flange: 110.00
Drive distance: 48.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 267.00
Distance / front: 101.00
Number / teeth: 11
B+: M12
Position / 50: 15
Terminal 50: M6
Gear type: DD
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
Total length mm: 380.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    AZJ3448, azj3452, B001860021, B001860023, cs1274, F032112581, 0001 371 010, 0001 371 015, 0001 372 002, 0001 372 003, 0001 372 007, 0001 372 008, 11.139.163, 11.139.165, 0986 018 780, 1986S10099, 100454, 112581, 1284775, 1317220, 1318615, 1357210, 1357211, 1357212, 0001371010, 0001371015, 0001372002, 0001372003, 0001372007, 0001372008, 1528598, 19070032, 81392007

  • Normalised article numbler
    azj3448, azj3452, b001860021, b001860023, cs1274, cst10674, cst10690, drs8780, drt1200, f032112581, f042002100, f042002101, f042s02100, f042s02101, is9147, is9149, les0385, lrs01938, ms104, ms462, s0076, str22036, str2372, str2373, 8ea012586401, 1986s10099, 30107n, 30108n, 100454, 101274, 104559, 105057, 112581, 203030, 203037, 220271, 220271a, 220275, 220275a, 453066, 458175, 458342, 1284775, 1317220, 1318615, 1357210, 1357211, 1357212, 0001371010, 0001371015, 0001372002, 0001372003, 0001372007, 0001372008, 1528598, 11018780, 11021200, 11139163, 11139165, 19070032, 42018780, 81392007, 646015114, 901020113, 0986018780, 0986021200
  • Description
    Daf 95XF Truck Alternator 24V-6.6kW 24V - 6.6kW, 11 teeth for Yourex product order 91-120-1878

    Voltage: 24
    kW: 6.2
    Mounting flange: 110.00
    Drive distance: 48.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 267.00
    Distance / front: 101.00
    Number / teeth: 11
    B+: M12
    Position / 50: 15
    Terminal 50: M6
    Gear type: DD
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 380.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZJ3448, azj3452, B001860021, B001860023, cs1274, F032112581, 0001 371 010, 0001 371 015, 0001 372 002, 0001 372 003, 0001 372 007, 0001 372 008, 11.139.163, 11.139.165, 0986 018 780, 1986S10099, 100454, 112581, 1284775, 1317220, 1318615, 1357210, 1357211, 1357212, 0001371010, 0001371015, 0001372002, 0001372003, 0001372007, 0001372008, 1528598, 19070032, 81392007

    • Normalised article numbler
      azj3448, azj3452, b001860021, b001860023, cs1274, cst10674, cst10690, drs8780, drt1200, f032112581, f042002100, f042002101, f042s02100, f042s02101, is9147, is9149, les0385, lrs01938, ms104, ms462, s0076, str22036, str2372, str2373, 8ea012586401, 1986s10099, 30107n, 30108n, 100454, 101274, 104559, 105057, 112581, 203030, 203037, 220271, 220271a, 220275, 220275a, 453066, 458175, 458342, 1284775, 1317220, 1318615, 1357210, 1357211, 1357212, 0001371010, 0001371015, 0001372002, 0001372003, 0001372007, 0001372008, 1528598, 11018780, 11021200, 11139163, 11139165, 19070032, 42018780, 81392007, 646015114, 901020113, 0986018780, 0986021200
