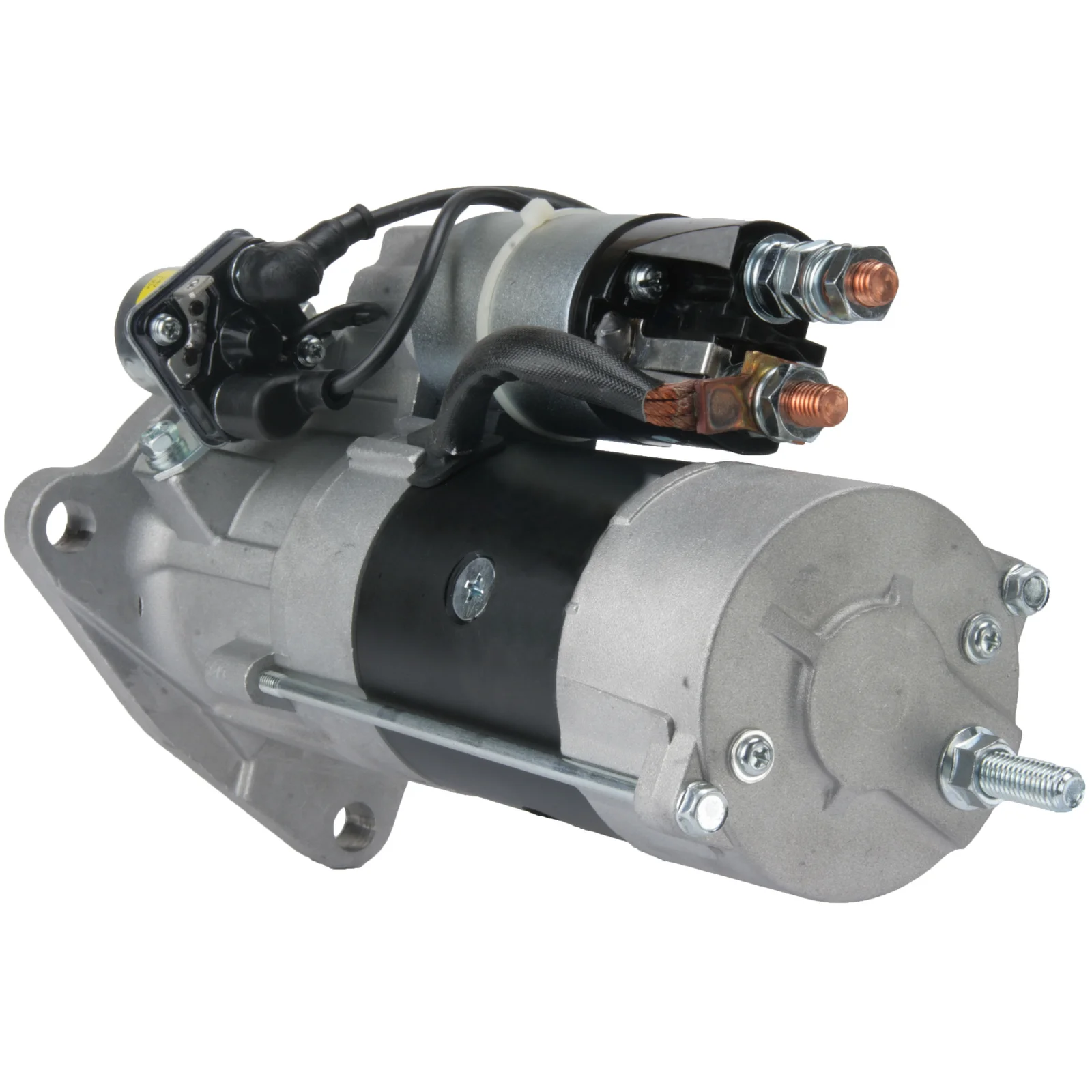

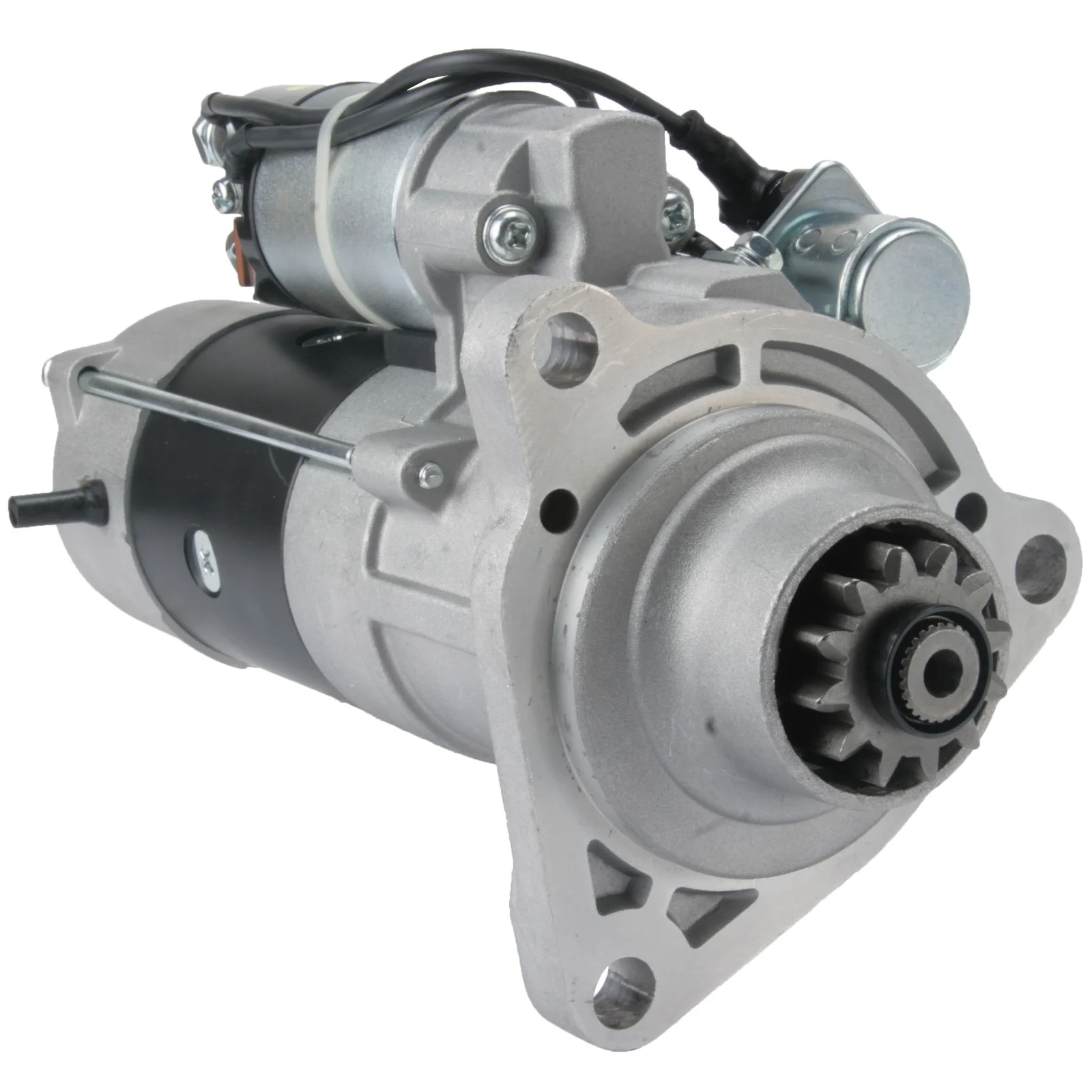

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113984

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.0, No./teeth: 12, Rotation: CW

Description

Starter motor 24V-5.5kW (Iveco) 24V - 5.5kW, 12k A - 92mm, B - 48mm Alternative: 91-255-7550 (Denso look) For Yourex product order 91-255-9616 Voltage: 24 kW: 5.0 Mounting flange: 92.00 Drive distance: 48.00 Mounting hole 3 mm: 14.00 Mounting hole 2 mm: 14.00 Mounting hole 1 mm: 14.00 Distance/back: 263.50 Distance/front: 54.00 Number/teeth: 12 B+: M10 Position/B+: 60 Terminal 50: M5 Gear type: GR Distance 2: 125.00 Distance 3: 125.00 Distance millimeters: 125.00 Rotation: CW Total length millimeters: 320.00 Drive type: Steel Product info: BN Number/mounting holes: 3 (0)

Files

  • OEM
    cs1432, F032113984, M009T61671, M009T69371, M9T-61671, M9T-67671, M9T61671, M9T69371, 113984, 2995372, 2995373, 19081001, 42498715, 504042667, 5801973143

  • Normalised article numbler
    cs1432, cst35601, drs0229, f032113984, f042001200, f042s01200, lrs02401, m009t61671, m009t69371, m9t61671, m9t67671, m9t69371, mitm9t61671, s5175, s5474s, str7908, 8ea012586551, 8ea738259111, 30165n, 106295, 113984, 220561, 220561a, 254075, 454073, 2995372, 2995373, 19081001, 42498715, 501503123, 504042667, 618035124, 0986023270, 5801973143
  • Description
    Starter motor 24V-5.5kW (Iveco) 24V - 5.5kW, 12k A - 92mm, B - 48mm Alternative: 91-255-7550 (Denso look) For Yourex product order 91-255-9616 Voltage: 24 kW: 5.0 Mounting flange: 92.00 Drive distance: 48.00 Mounting hole 3 mm: 14.00 Mounting hole 2 mm: 14.00 Mounting hole 1 mm: 14.00 Distance/back: 263.50 Distance/front: 54.00 Number/teeth: 12 B+: M10 Position/B+: 60 Terminal 50: M5 Gear type: GR Distance 2: 125.00 Distance 3: 125.00 Distance millimeters: 125.00 Rotation: CW Total length millimeters: 320.00 Drive type: Steel Product info: BN Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1432, F032113984, M009T61671, M009T69371, M9T-61671, M9T-67671, M9T61671, M9T69371, 113984, 2995372, 2995373, 19081001, 42498715, 504042667, 5801973143

    • Normalised article numbler
      cs1432, cst35601, drs0229, f032113984, f042001200, f042s01200, lrs02401, m009t61671, m009t69371, m9t61671, m9t67671, m9t69371, mitm9t61671, s5175, s5474s, str7908, 8ea012586551, 8ea738259111, 30165n, 106295, 113984, 220561, 220561a, 254075, 454073, 2995372, 2995373, 19081001, 42498715, 501503123, 504042667, 618035124, 0986023270, 5801973143
