Article no.: F032113760

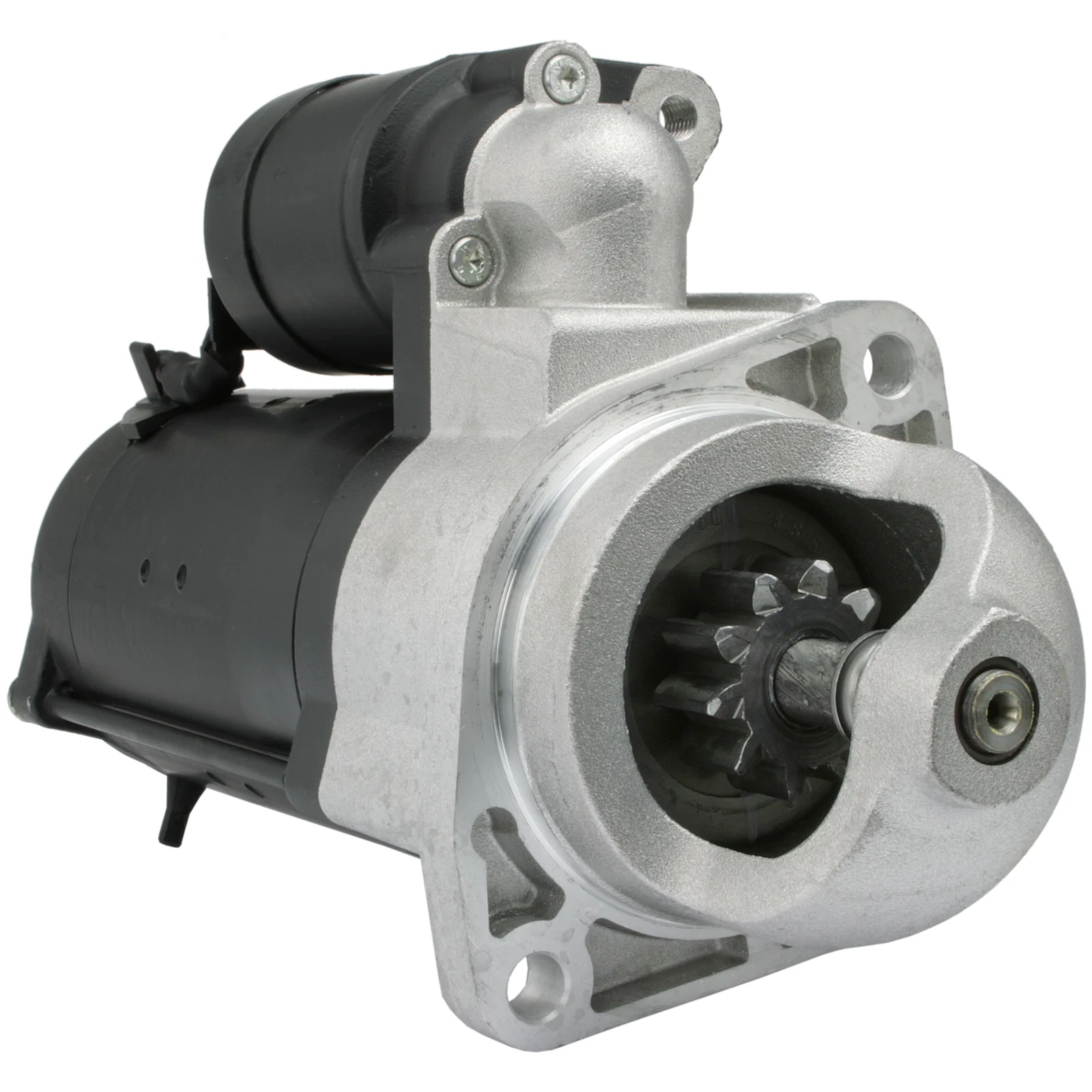

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Description

DAF/Leyland Starter motor 24V-4.0kW 24V - 4.0kW, 10k For Yourex product order 91-120-1017

Voltage: 24
kW: 4.0
Mount. flange: 89.00
Drive distance: 27.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Distance / back: 228.50
Distance / front: 74.50
Number / teeth: 10
B+: M10
Position / B+: 60
Position / 50: 45
Terminal 50: 6.30
Gear type: GR
Distance 2: 90.00
Distance 3: 127.00
Distance mm: 90.00
Rotation: CW
Total length mm: 315.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mount. holes: 3 (0)

Files

  • OEM
    AELD 021, AELD021, AELF189, AELF405, AFLF189, AZF4403, cs1382, F032113760, 0001 231 017, 11.139.608, 0986 021 190, 1986S10074, 113760, 0001231017, 0001231045, 0001263001, 0001263002, 1387381, 1387383, 1387383R, 1528599, 1704911, 19084017, 72442886

  • Normalised article numbler
    aeld021, aelf189, aelf405, aflf189, azf4403, cs1382, cst10681, drt1190, drt1190n, f032113760, f042002087, f042s02087, m93r3105se, ms766, s0178, s0787s, str2314, 8ea012081001, 8ea012586341, 1986s10074, 8166, 30129n, 31284n, 101382, 105470, 113760, 203036, 438540, 453350, 458329, 860815, 0001231017, 0001231045, 0001263001, 0001263002, 1387381, 1387383, 1387383r, 1528599, 1704911, 11021190, 11139608, 19084017, 72442886, 646009104, 901513103, 0986021190, 0986021193, 0986021196
  • Description
    DAF/Leyland Starter motor 24V-4.0kW 24V - 4.0kW, 10k For Yourex product order 91-120-1017

    Voltage: 24
    kW: 4.0
    Mount. flange: 89.00
    Drive distance: 27.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Distance / back: 228.50
    Distance / front: 74.50
    Number / teeth: 10
    B+: M10
    Position / B+: 60
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 127.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 315.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AELD 021, AELD021, AELF189, AELF405, AFLF189, AZF4403, cs1382, F032113760, 0001 231 017, 11.139.608, 0986 021 190, 1986S10074, 113760, 0001231017, 0001231045, 0001263001, 0001263002, 1387381, 1387383, 1387383R, 1528599, 1704911, 19084017, 72442886

    • Normalised article numbler
      aeld021, aelf189, aelf405, aflf189, azf4403, cs1382, cst10681, drt1190, drt1190n, f032113760, f042002087, f042s02087, m93r3105se, ms766, s0178, s0787s, str2314, 8ea012081001, 8ea012586341, 1986s10074, 8166, 30129n, 31284n, 101382, 105470, 113760, 203036, 438540, 453350, 458329, 860815, 0001231017, 0001231045, 0001263001, 0001263002, 1387381, 1387383, 1387383r, 1528599, 1704911, 11021190, 11139608, 19084017, 72442886, 646009104, 901513103, 0986021190, 0986021193, 0986021196
