Article no.: F032110981

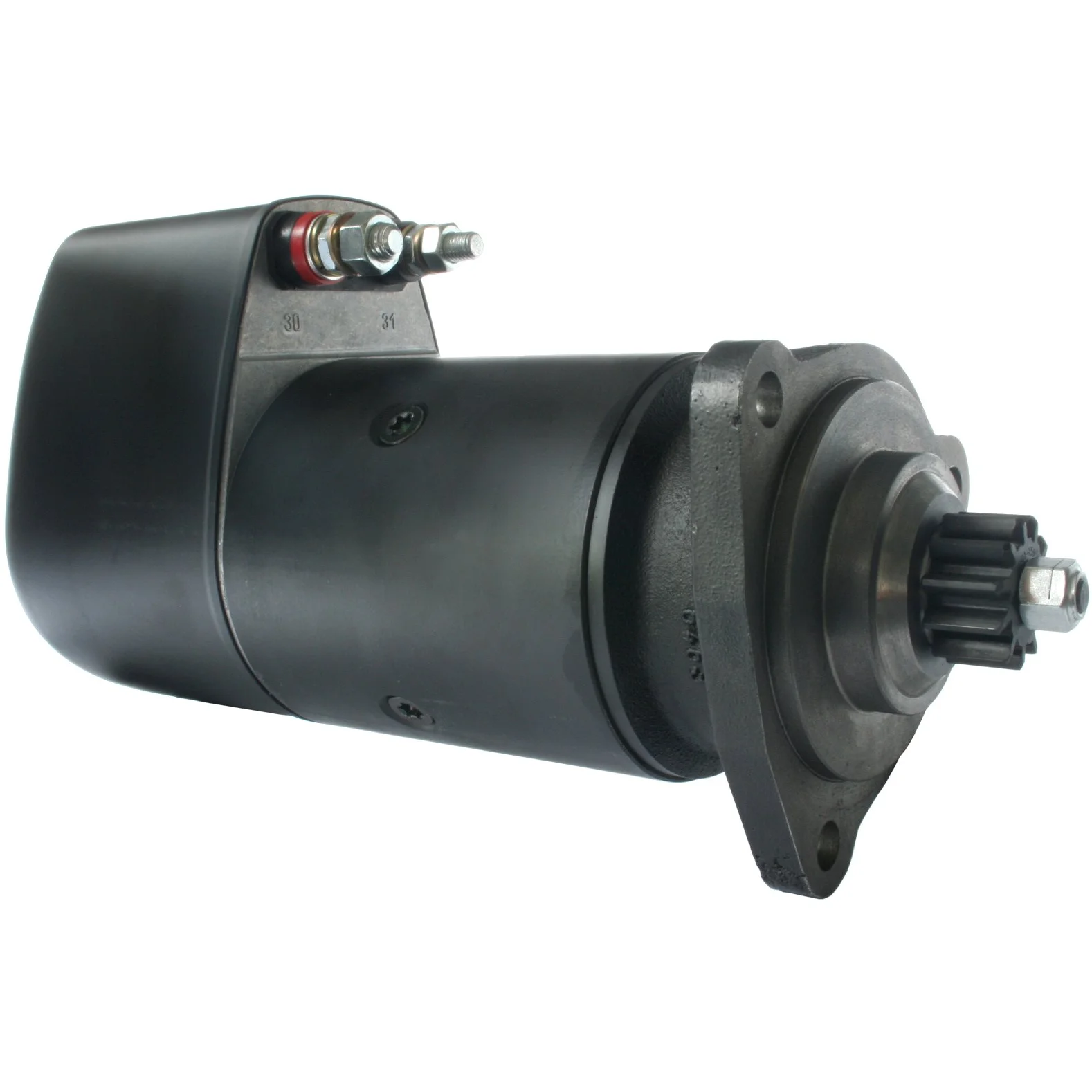

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.4, No./teeth: 11, Rotation: CW

Description

Starter motor 24V - 5.4kW, 11k For Yourrex product order 91-120-1456

Voltage: 24
kW: 5.4
Mounting flange: 110.00
Drive distance: 47.50
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 323.00
Distance / front: 64.50
Number / teeth: 11
B+: M12
Position / 50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
B-: M10
Total length mm: 387.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    azk5184, AZK5553, cs617, F032110981, 0001 416 062, 0001 416 067, 0001 416 068, 11.139.025, 11.139.514, 562, 0986 014 560, 9025, 090671, 0090690, 090690, 110981, 0365211, 0365211R, 365211, 859021, 860509, 0001416062, 0001416067, 19024049, 19024106, 81366062, 81466062

  • Normalised article numbler
    azk5184, azk5553, bso7235, cs617, cst10637, drs4560, f032110981, is9025, lrs00766, ms497, ms709, s0023, str22033, 8ea730187001, 562, 1637, 9025, 10617, 30087n, 33533, 090671, 0090690, 090690, 103408, 110981, 220289, 220289a, 0365211, 0365211r, 365211, 438040, 451297, 455542, 859021, 860509, 0001416062, 0001416067, 0001416068, 8814560, 11014560, 11139025, 11139514, 19024049, 19024106, 42014560, 81366062, 81466062, 646010114, 943252254, 0986014560, 943252254010
  • Description
    Starter motor 24V - 5.4kW, 11k For Yourrex product order 91-120-1456

    Voltage: 24
    kW: 5.4
    Mounting flange: 110.00
    Drive distance: 47.50
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 323.00
    Distance / front: 64.50
    Number / teeth: 11
    B+: M12
    Position / 50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    B-: M10
    Total length mm: 387.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azk5184, AZK5553, cs617, F032110981, 0001 416 062, 0001 416 067, 0001 416 068, 11.139.025, 11.139.514, 562, 0986 014 560, 9025, 090671, 0090690, 090690, 110981, 0365211, 0365211R, 365211, 859021, 860509, 0001416062, 0001416067, 19024049, 19024106, 81366062, 81466062

    • Normalised article numbler
      azk5184, azk5553, bso7235, cs617, cst10637, drs4560, f032110981, is9025, lrs00766, ms497, ms709, s0023, str22033, 8ea730187001, 562, 1637, 9025, 10617, 30087n, 33533, 090671, 0090690, 090690, 103408, 110981, 220289, 220289a, 0365211, 0365211r, 365211, 438040, 451297, 455542, 859021, 860509, 0001416062, 0001416067, 0001416068, 8814560, 11014560, 11139025, 11139514, 19024049, 19024106, 42014560, 81366062, 81466062, 646010114, 943252254, 0986014560, 943252254010
