Article no.: F032113672

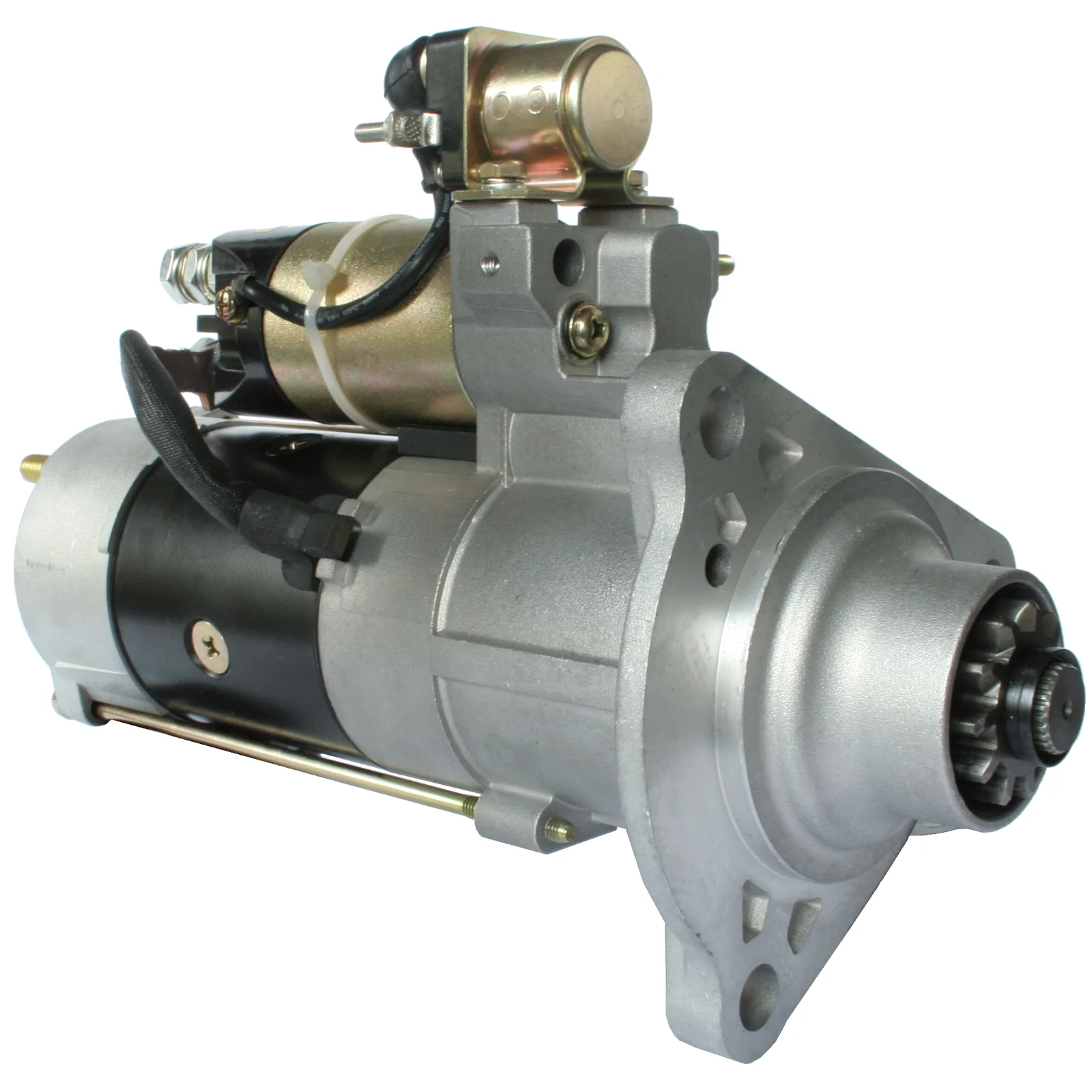

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 11, Rotation: CW

Description

Voltage: 24 kW: 5.5 Mounting flange: 92.00 Drive distance: 47.00 Mounting hole 3 mm: 13.50 Mounting hole 2 mm: 13.50 Mounting hole 1 mm: 13.50 Distance / back: 263.00 Distance / front: 54.50 Number / teeth: 11 B+: M10 Position / 50: 15 Terminal 50: M5 Gear type: GR Distance 2: 126.00 Distance 3: 126.00 Distance mm: 126.00 Rotation: CW Position / b-: 5 B-: M10 Total length mm: 350.00 Drive type: Steel Product information: BN Waterproof: No Oil sealed: No Remarks: with safety switch. Number / mounting holes: 3 (0)

Files

  • OEM
    cs1386, F032113672, M009T60471, M009T60473, M009T61571, M9T60471, M9T60473, M9T61571, 080.80500A, 1986S10026, 860616, 5001853713, 5010306592, 5010480196, 5010508380

  • Normalised article numbler
    cs1386, cst35609, cst35643, drs0124, drs0124n, f032113672, f042001194, f042s01194, lrs02322, m009t60471, m009t60473, m009t61571, m9t60471, m9t60473, m9t61571, mitm9t60471, mitm9t61571, ms776, s5027, s5027mitsubishi, str7900, 8ea012586081, 8ea738258291, 1986s10026, 16670n, 30740n, 101386, 106008, 220343, 220343a, 255334, 453494, 860616, 08080500a, 8823590, 11023590, 571522113, 571524113, 630022114, 0986023590, 5001853713, 5010306592, 5010480196, 5010508380
  • Description
    Voltage: 24 kW: 5.5 Mounting flange: 92.00 Drive distance: 47.00 Mounting hole 3 mm: 13.50 Mounting hole 2 mm: 13.50 Mounting hole 1 mm: 13.50 Distance / back: 263.00 Distance / front: 54.50 Number / teeth: 11 B+: M10 Position / 50: 15 Terminal 50: M5 Gear type: GR Distance 2: 126.00 Distance 3: 126.00 Distance mm: 126.00 Rotation: CW Position / b-: 5 B-: M10 Total length mm: 350.00 Drive type: Steel Product information: BN Waterproof: No Oil sealed: No Remarks: with safety switch. Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1386, F032113672, M009T60471, M009T60473, M009T61571, M9T60471, M9T60473, M9T61571, 080.80500A, 1986S10026, 860616, 5001853713, 5010306592, 5010480196, 5010508380

    • Normalised article numbler
      cs1386, cst35609, cst35643, drs0124, drs0124n, f032113672, f042001194, f042s01194, lrs02322, m009t60471, m009t60473, m009t61571, m9t60471, m9t60473, m9t61571, mitm9t60471, mitm9t61571, ms776, s5027, s5027mitsubishi, str7900, 8ea012586081, 8ea738258291, 1986s10026, 16670n, 30740n, 101386, 106008, 220343, 220343a, 255334, 453494, 860616, 08080500a, 8823590, 11023590, 571522113, 571524113, 630022114, 0986023590, 5001853713, 5010306592, 5010480196, 5010508380
