HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111399

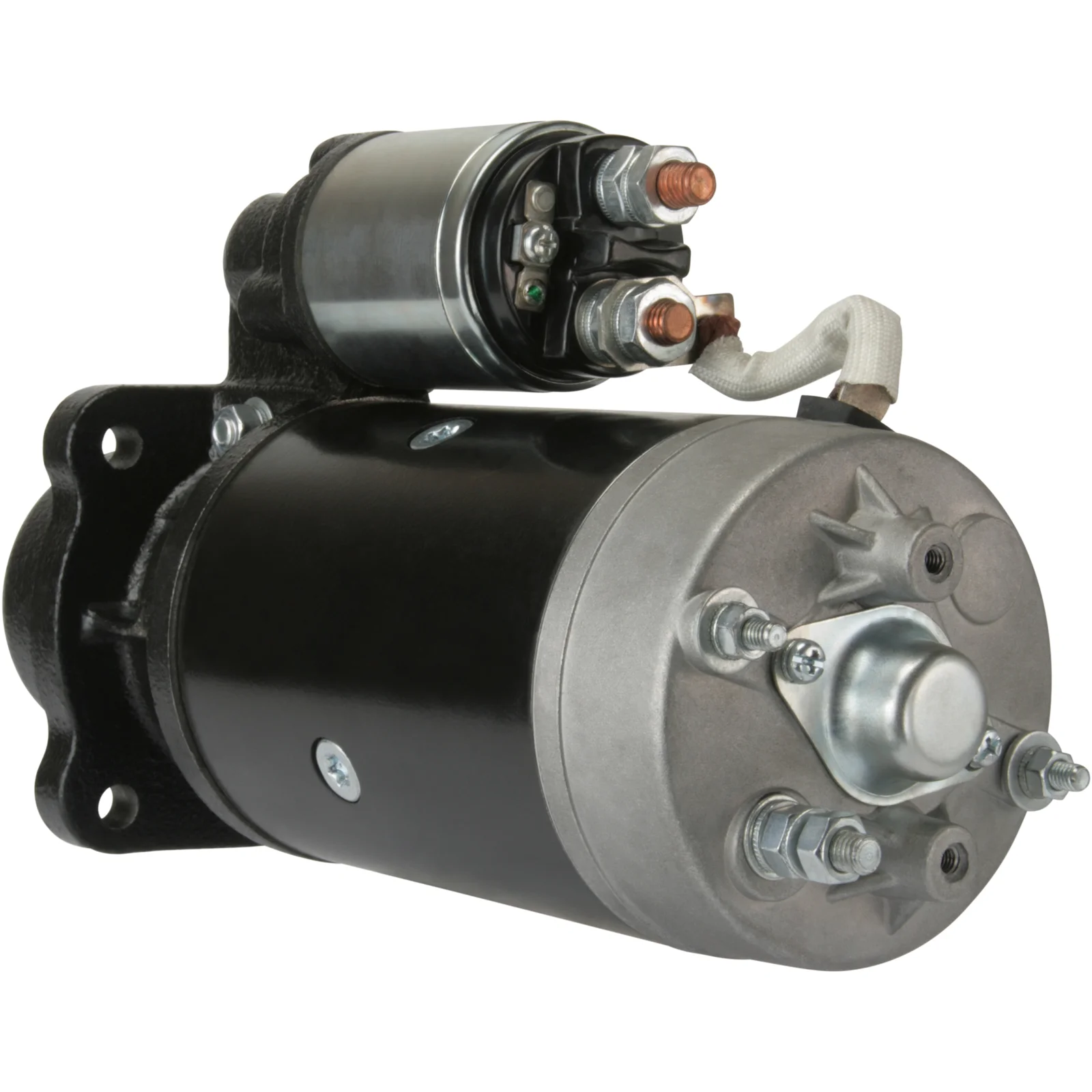

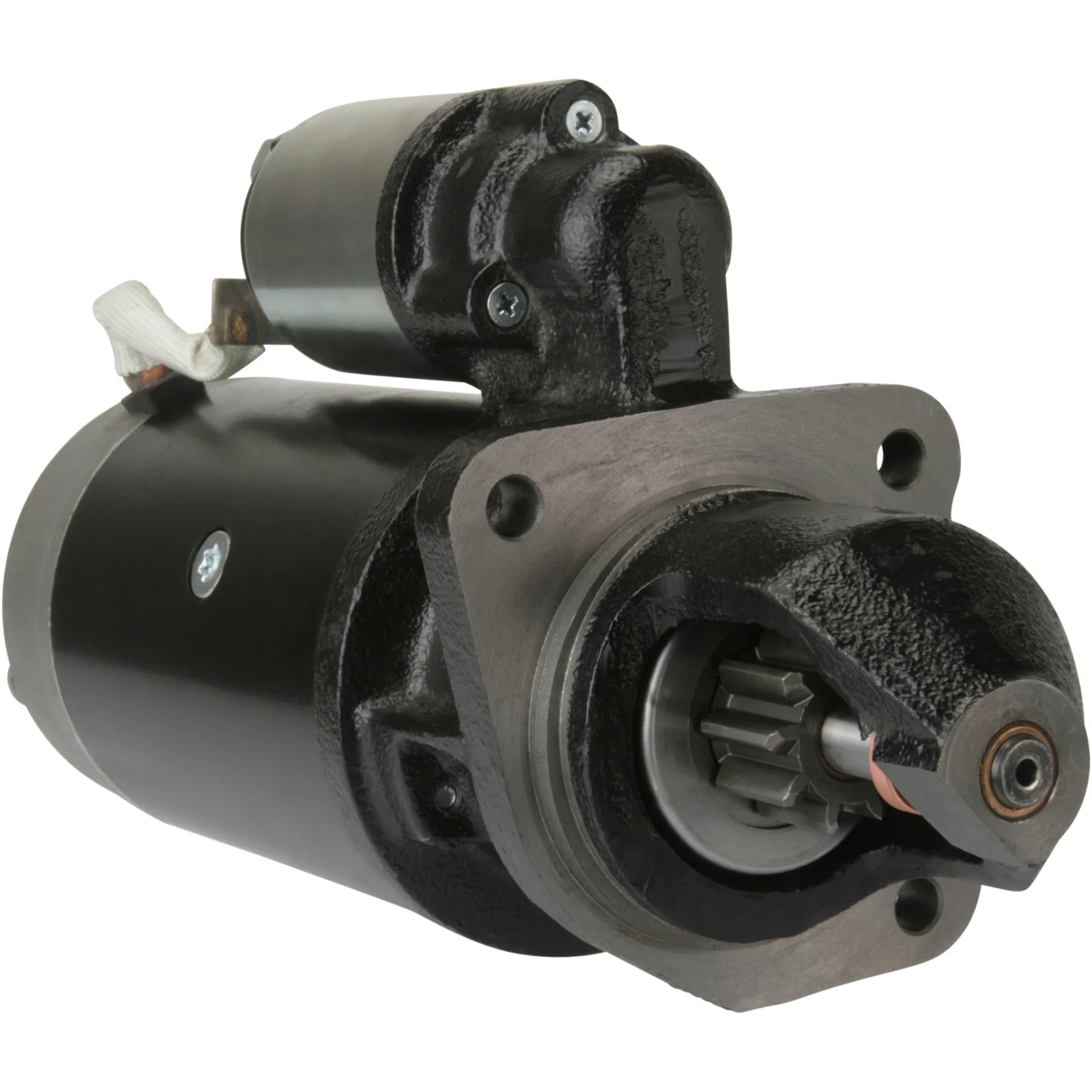

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 9, Rotation: CW

Description

Daf Starter motor 24V, 24V - 4.0kW, 9k A - 89mm, B - 38mm for Yourrex product order 91-120-1752

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 38.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 252.50
Distance / front: 85.00
No. / teeth: 9
B+: M10
Position / 50: 45
Terminal 50: M4
Gear type: DD
Distance 2: 126.00
Distance 3: 89.00
Distance mm: 89.00
Rotation: CW
B-: M8
Total length mm: 352.50
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    AELB426, AELB426R, AMPB074, AMPB074R, cs989, F032111399, S 4524/9, s4524/9, 0001 368 083, 0986 017 520, 1986S00066, 111399, 859022, 859506, 1201327, 0001368083, 19024262

  • Normalised article numbler
    aelb426, aelb426r, ampb074, ampb074r, bso4246, bso7246, cs989, cst10619, drs7520, f032111399, lrt00135, s0196, s45249, str22034, str81005, 8ea737238001, 1986s00066, 4441, 10989, 30095n, 103676, 111399, 203042, 220286, 220286a, 452240, 458341, 859022, 859506, 1201327, 0001368083, 11017520, 19024262, 646011094, 901004093, 0986017520
  • Description
    Daf Starter motor 24V, 24V - 4.0kW, 9k A - 89mm, B - 38mm for Yourrex product order 91-120-1752

    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 38.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 252.50
    Distance / front: 85.00
    No. / teeth: 9
    B+: M10
    Position / 50: 45
    Terminal 50: M4
    Gear type: DD
    Distance 2: 126.00
    Distance 3: 89.00
    Distance mm: 89.00
    Rotation: CW
    B-: M8
    Total length mm: 352.50
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AELB426, AELB426R, AMPB074, AMPB074R, cs989, F032111399, S 4524/9, s4524/9, 0001 368 083, 0986 017 520, 1986S00066, 111399, 859022, 859506, 1201327, 0001368083, 19024262

    • Normalised article numbler
      aelb426, aelb426r, ampb074, ampb074r, bso4246, bso7246, cs989, cst10619, drs7520, f032111399, lrt00135, s0196, s45249, str22034, str81005, 8ea737238001, 1986s00066, 4441, 10989, 30095n, 103676, 111399, 203042, 220286, 220286a, 452240, 458341, 859022, 859506, 1201327, 0001368083, 11017520, 19024262, 646011094, 901004093, 0986017520
