Article no.: F032113323

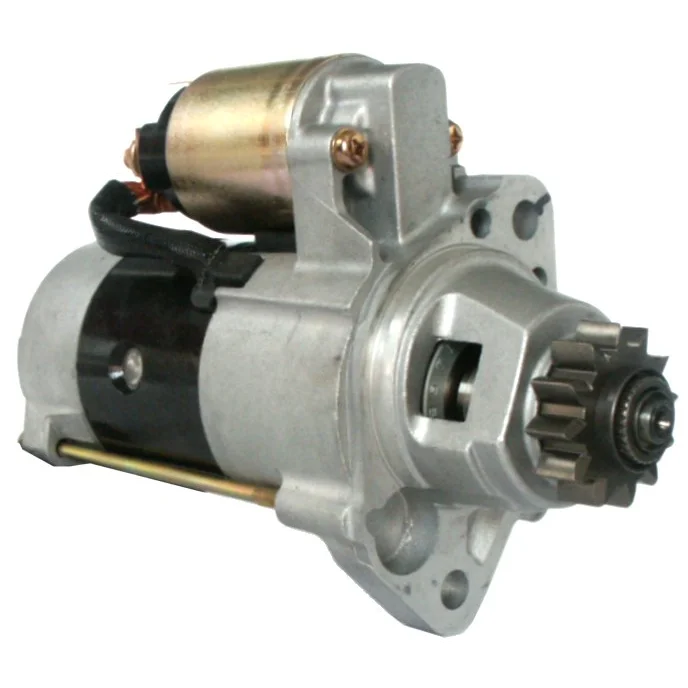

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 12, Rotation: CCW

Description

Voltage: 12
kW: 1.7
Mount. flange: 70.00
Drive dist.: 54.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 168.00
Dist./front: 64.00
No./teeth: 12
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Dist. mm: 104.50
Rotation: Counter-clockwise
Total length mm: 233.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    F032113323, js1295, M008T71471, M008T71471ZE, m8t71471, M8T71471ZE, RGO 113323, 23300-8h801, 23300-8H80A, 23300-AU600, 23300-AU601

  • Normalised article numbler
    cst35147, drs3916, f032113323, f042s0h050, j5211089, js1295, lrs01667, m008t71471, m008t71471ze, m8t71471, m8t71471ze, rgo113323, s5032, str71046, strh050, 8ea012526011, 8ea738034001, 9583, 23300au600, 23300au601, 32699n, 32699r, 105411, 201165, 201295, 220464, 220464a, 233008h801, 233008h80a, 253213, 8052189, 8212419, 11040693, 327093122, 0986023540, 944280521890
  • Description
    Voltage: 12
    kW: 1.7
    Mount. flange: 70.00
    Drive dist.: 54.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 168.00
    Dist./front: 64.00
    No./teeth: 12
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 104.50
    Rotation: Counter-clockwise
    Total length mm: 233.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113323, js1295, M008T71471, M008T71471ZE, m8t71471, M8T71471ZE, RGO 113323, 23300-8h801, 23300-8H80A, 23300-AU600, 23300-AU601

    • Normalised article numbler
      cst35147, drs3916, f032113323, f042s0h050, j5211089, js1295, lrs01667, m008t71471, m008t71471ze, m8t71471, m8t71471ze, rgo113323, s5032, str71046, strh050, 8ea012526011, 8ea738034001, 9583, 23300au600, 23300au601, 32699n, 32699r, 105411, 201165, 201295, 220464, 220464a, 233008h801, 233008h80a, 253213, 8052189, 8212419, 11040693, 327093122, 0986023540, 944280521890
