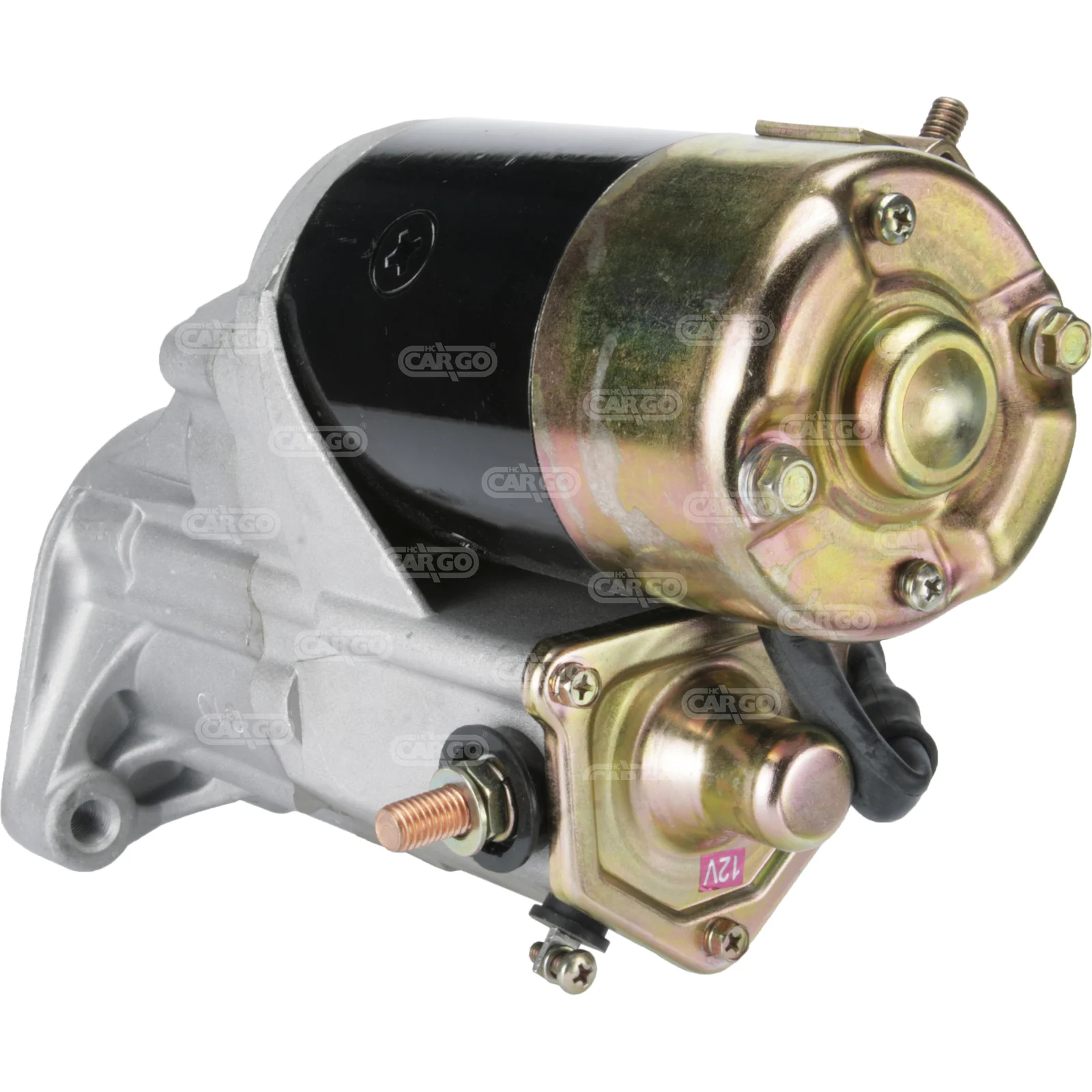

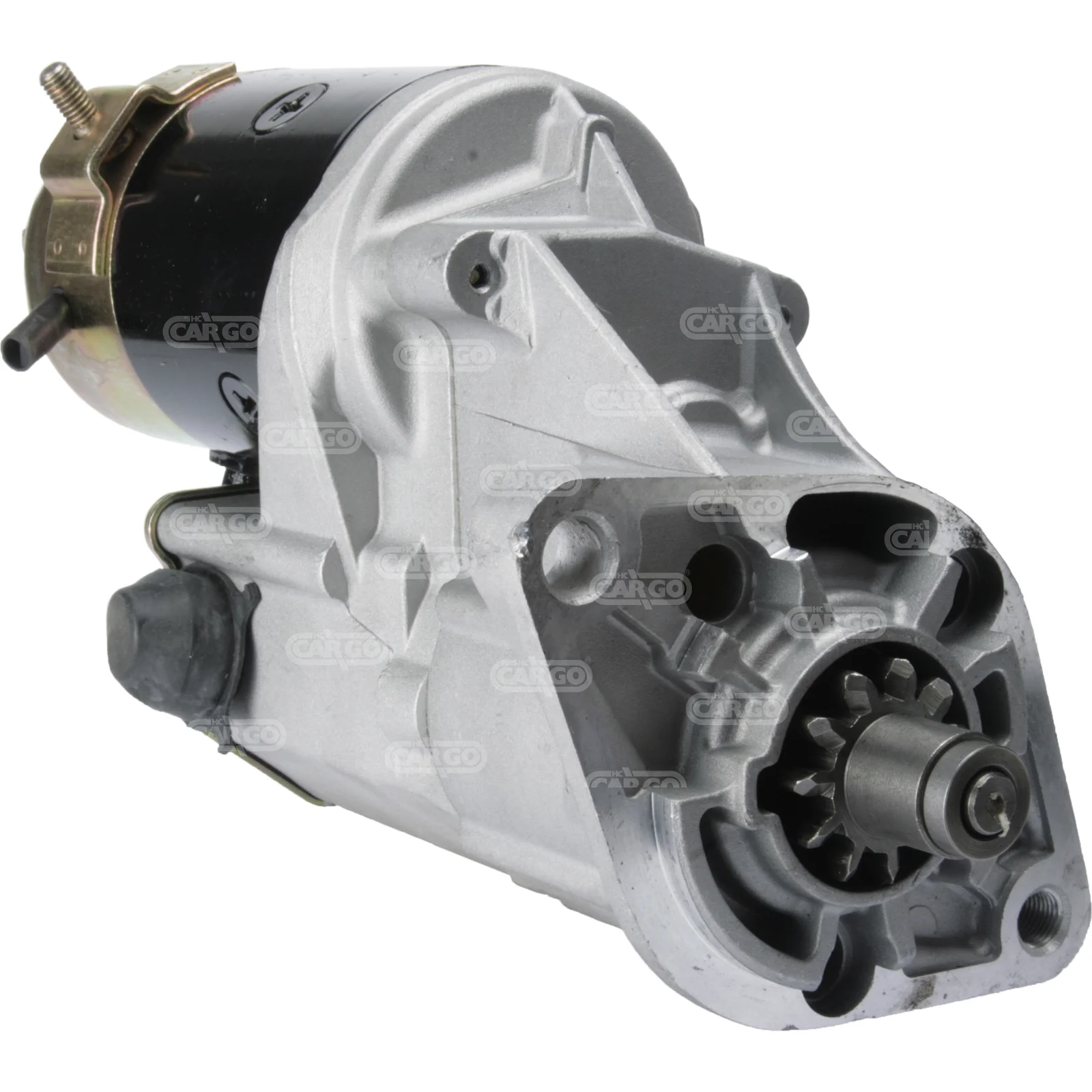

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113936

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.7
Mounting flange: 82.50
Drive distance: 15.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: M12-1.25
Distance/back: 193.00
Distance/front: 43.00
Number/teeth: 11
B+: M10
Position/B+: 45
Position/50: 37
Terminal 50: M5
Gear type: GR
Distance in millimeters: 135.00
Rotation: CW
Total length in millimeters: 305.00
Number/mounting holes: 2 (1)

Files

  • OEM
    F032113936, js1090, RGO 113936, 1986S00965, 28100-54320, 28100-54370, 28100-54390, 28100-54470, 28100-54490, 28100-54491, 228000-0570, 228000-0571, 228000-0572, 228000-0573, 228000-0574, 228000-0575, 228000-1590, 228000-1591, 228000-1660, 228000-1661, 228000-9050

  • Normalised article numbler
    drs3645, f032113936, f042s0h076, j5212084, js1090, lrs00507, rgo113936, strh076, 8ea012527241, 8ea737422001, 1986s00965, 4532, 104585, 201090, 250321, 458565, 8052284, 8212987, 335009112, 0986018751, 2280000570, 2280000571, 2280000572, 2280000573, 2280000574, 2280000575, 2280001590, 2280001591, 2280001660, 2280001661, 2280009050, 2810054320, 2810054370, 2810054390, 2810054470, 2810054490, 2810054491
  • Description
    Voltage: 12
    kW: 2.7
    Mounting flange: 82.50
    Drive distance: 15.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: M12-1.25
    Distance/back: 193.00
    Distance/front: 43.00
    Number/teeth: 11
    B+: M10
    Position/B+: 45
    Position/50: 37
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 135.00
    Rotation: CW
    Total length in millimeters: 305.00
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032113936, js1090, RGO 113936, 1986S00965, 28100-54320, 28100-54370, 28100-54390, 28100-54470, 28100-54490, 28100-54491, 228000-0570, 228000-0571, 228000-0572, 228000-0573, 228000-0574, 228000-0575, 228000-1590, 228000-1591, 228000-1660, 228000-1661, 228000-9050

    • Normalised article numbler
      drs3645, f032113936, f042s0h076, j5212084, js1090, lrs00507, rgo113936, strh076, 8ea012527241, 8ea737422001, 1986s00965, 4532, 104585, 201090, 250321, 458565, 8052284, 8212987, 335009112, 0986018751, 2280000570, 2280000571, 2280000572, 2280000573, 2280000574, 2280000575, 2280001590, 2280001591, 2280001660, 2280001661, 2280009050, 2810054320, 2810054370, 2810054390, 2810054470, 2810054490, 2810054491
