Article no.: F032111112

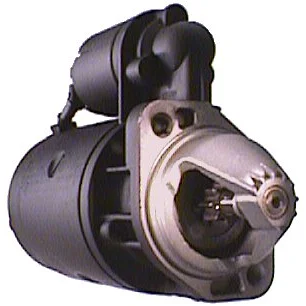

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Audi/VW Starter motor 12V-2.2 kW, 9k 12V - 2.2 kW, 9k For Yourrex product order 91-025-1825

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 20.00
Dist./back: 227.00
Dist./front: 61.50
No./teeth: 9
B+: M10
Thread length mm: 11.00
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. mm: 105.00
Rotation: CW
Total length mm: 288.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Files

  • OEM
    cs347, F032111112, F032112537, RGO 111112, 0001 218 012, 0001 218 013, 0001 218 018, 0001 218 113, 0001 218 114, 0001 218 115, 0001 362 069, 0001 362 070, 0001 362 077, 0001 362 078, 069 911 023, 069 911 023A, 069 911 023C, 069 911 023D, 0986 011 090, 0986 013 410, 0986 013 418, 0986 018 250, 111112, 112537, 1257325, 1257938, 0001362069, 0001362070, 0001362077, 0001362078, 0001362083, 1516743R, 5001867, 069911023, 069911023a, 069911023AX, 069911023v

  • Normalised article numbler
    cs347, drs1090, drs3140, f032111112, f032112537, f042s0h019, is0399, lrs00372, lrs00661, msr470, qs1989, rgo111112, sr38x, strh019, vs148, 8ea726095001, 1013, 3411, 10347, 11118, 11423, 16949, 21287bo, 103105, 111112, 112537, 250103, 250235, 436038, 436042, 0001218012, 0001218013, 0001218018, 0001218113, 0001218114, 0001218115, 1257325, 1257938, 0001362069, 0001362070, 0001362077, 0001362078, 0001362083, 1516743r, 4011090, 4033178, 4111090, 4113140, 5001867, 8011090, 11011090, 42013410, 069911023, 069911023a, 069911023ax, 069911023c, 069911023d, 069911023v, 300022092, 338017092, 943251415, 943251634, 943251700, 0986011090, 0986013410, 0986013418, 0986018250, 0986019617
  • Description
    Audi/VW Starter motor 12V-2.2 kW, 9k 12V - 2.2 kW, 9k For Yourrex product order 91-025-1825

    Voltage: 12
    kW: 2.0
    Mount. flange: 82.50
    Drive dist.: 20.00
    Dist./back: 227.00
    Dist./front: 61.50
    No./teeth: 9
    B+: M10
    Thread length mm: 11.00
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 288.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs347, F032111112, F032112537, RGO 111112, 0001 218 012, 0001 218 013, 0001 218 018, 0001 218 113, 0001 218 114, 0001 218 115, 0001 362 069, 0001 362 070, 0001 362 077, 0001 362 078, 069 911 023, 069 911 023A, 069 911 023C, 069 911 023D, 0986 011 090, 0986 013 410, 0986 013 418, 0986 018 250, 111112, 112537, 1257325, 1257938, 0001362069, 0001362070, 0001362077, 0001362078, 0001362083, 1516743R, 5001867, 069911023, 069911023a, 069911023AX, 069911023v

    • Normalised article numbler
      cs347, drs1090, drs3140, f032111112, f032112537, f042s0h019, is0399, lrs00372, lrs00661, msr470, qs1989, rgo111112, sr38x, strh019, vs148, 8ea726095001, 1013, 3411, 10347, 11118, 11423, 16949, 21287bo, 103105, 111112, 112537, 250103, 250235, 436038, 436042, 0001218012, 0001218013, 0001218018, 0001218113, 0001218114, 0001218115, 1257325, 1257938, 0001362069, 0001362070, 0001362077, 0001362078, 0001362083, 1516743r, 4011090, 4033178, 4111090, 4113140, 5001867, 8011090, 11011090, 42013410, 069911023, 069911023a, 069911023ax, 069911023c, 069911023d, 069911023v, 300022092, 338017092, 943251415, 943251634, 943251700, 0986011090, 0986013410, 0986013418, 0986018250, 0986019617
