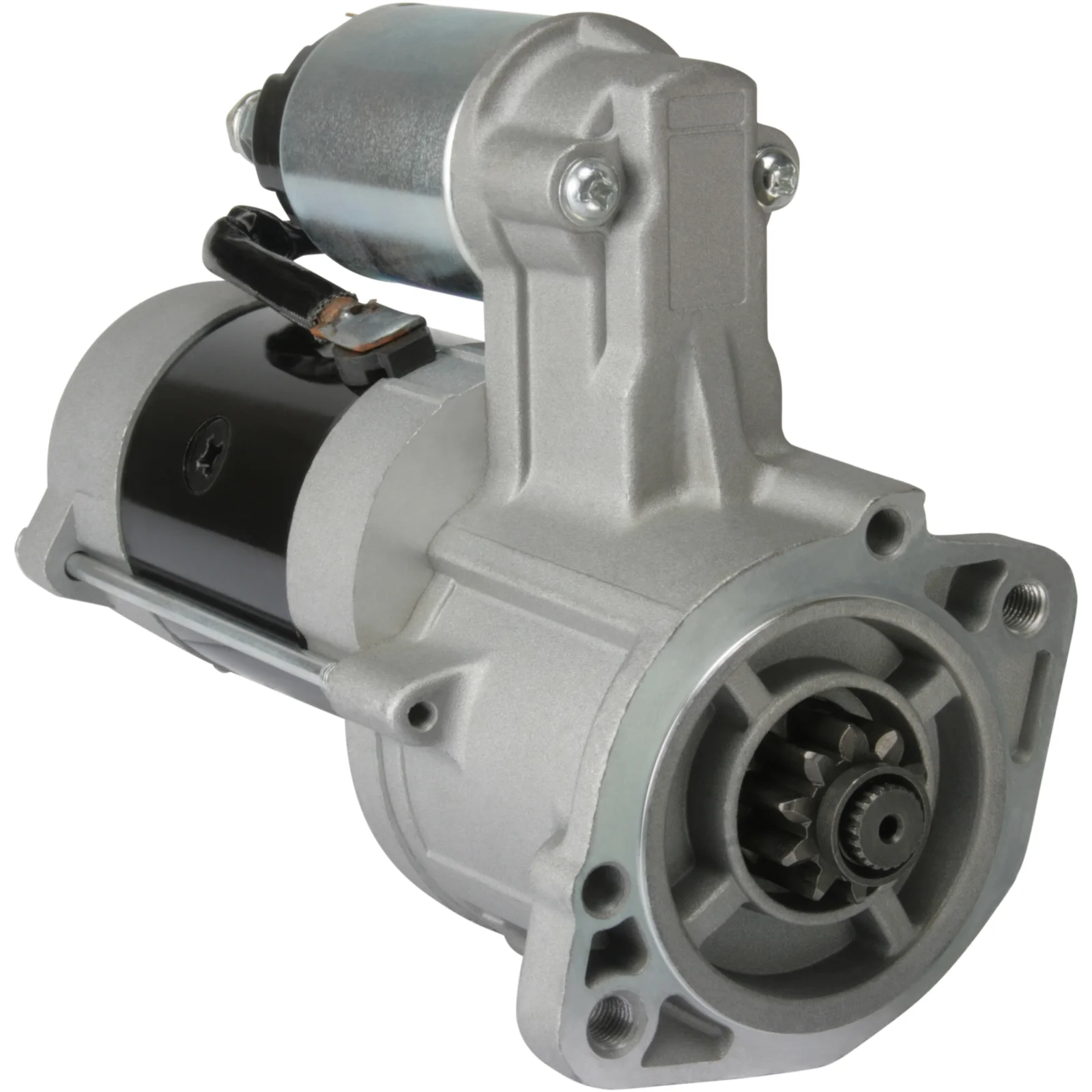

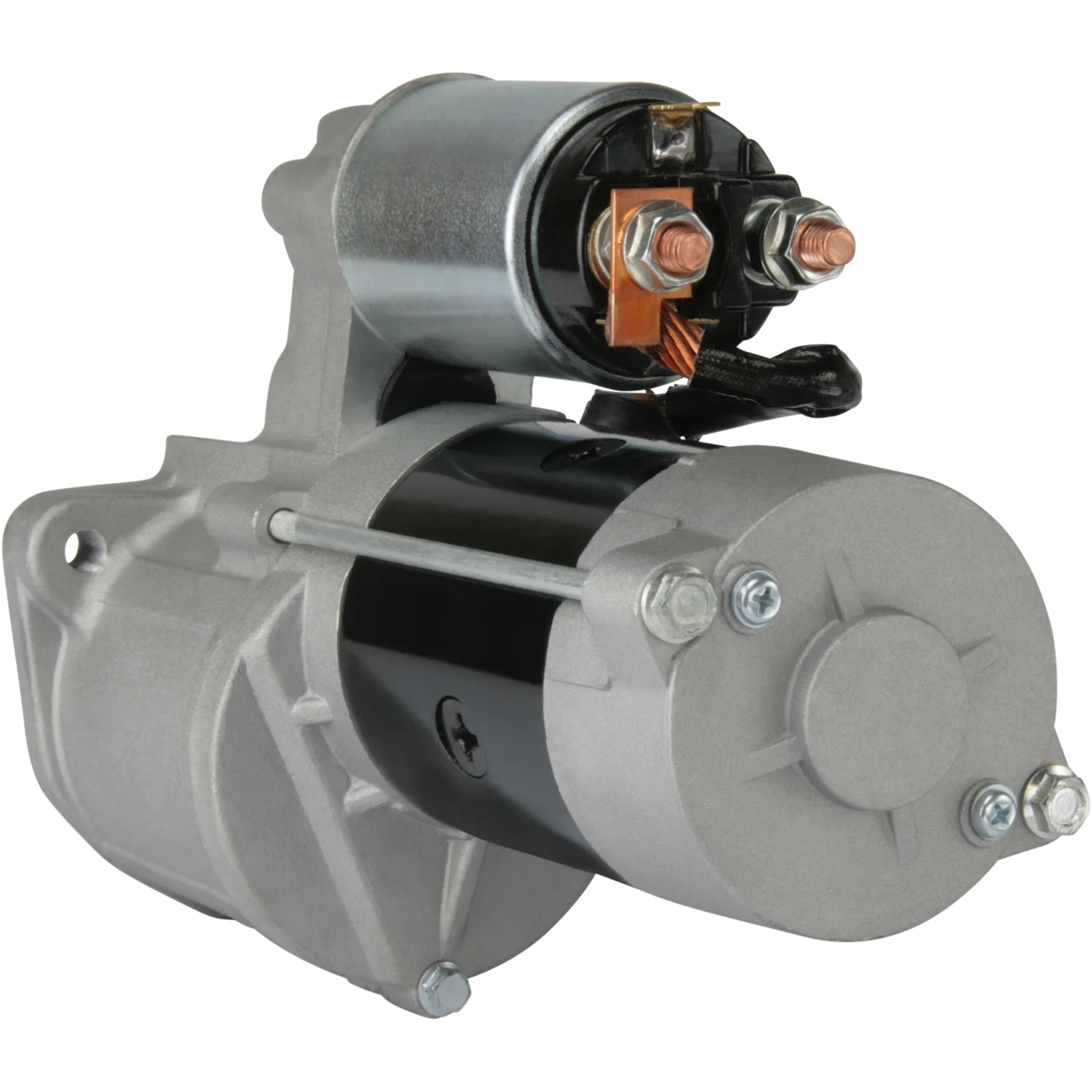

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111476

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Description

Mitsub. Pajero Starter motor 12V-2.2kW 12V - 2.2kW, 10/13 gear. Bushing distance when at rest from the flange = 9.5mm. Has 13 gears, but replaces 10-tooth version because the drive gear is eccentric. For Yourrex product order 91-380-1171 Voltage: 12 kilowatts: 2.0 Mounting flange: 77.00 Drive distance: 10.00 Distance/behind: 224.50 Distance/in front: 17.00 Number/teeth: 10 B+: M8 Position/50: 60 Terminal 50: 6.30 Gear type: GR Distance mm: 105.00 Rotation: CW Total length mm: 240.00 Drive type: Steel Product info: BN Waterproof: No Oil sealed: No Number/mounting holes: 2 (2)

Files

  • OEM
    F032111476, HK988300, js770, M002T57771, M002T57773, M002T74171, M2T-60185, M2T-61171, M2T-63171, m2t57771, m2t57773, m2t74171, MD 121581, MD 156987, MD 191437, md140190, md164976, mg120445, RGO 111476, TM000A14901, 36100-47600, 111476

  • Normalised article numbler
    acs952, cst35102, drs3036, drs3036x, drs3343, drs3343n, f032111476, f042s01220, hk988300, isj0010, js770, lrs00896, m002t57771, m002t57773, m002t74171, m2t57771, m2t57773, m2t60185, m2t61171, m2t63171, m2t74171, md121581, md140190, md156987, md164976, md191437, mg120445, rgo111476, s5046, str7042, tm000a14901, 8ea011610901, 8ea731805001, 4291, 9507, 11597, 20770, 104216, 111476, 201071, 220013, 220013a, 220159, 220159a, 252005, 253322, 458491, 600069, 600072, 726102, 726902, 2752506, 8213296, 11040623, 063522603, 326013102, 626017102, 0986014141, 0986018731, 3610047600, 063522603010
  • Description
    Mitsub. Pajero Starter motor 12V-2.2kW 12V - 2.2kW, 10/13 gear. Bushing distance when at rest from the flange = 9.5mm. Has 13 gears, but replaces 10-tooth version because the drive gear is eccentric. For Yourrex product order 91-380-1171 Voltage: 12 kilowatts: 2.0 Mounting flange: 77.00 Drive distance: 10.00 Distance/behind: 224.50 Distance/in front: 17.00 Number/teeth: 10 B+: M8 Position/50: 60 Terminal 50: 6.30 Gear type: GR Distance mm: 105.00 Rotation: CW Total length mm: 240.00 Drive type: Steel Product info: BN Waterproof: No Oil sealed: No Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032111476, HK988300, js770, M002T57771, M002T57773, M002T74171, M2T-60185, M2T-61171, M2T-63171, m2t57771, m2t57773, m2t74171, MD 121581, MD 156987, MD 191437, md140190, md164976, mg120445, RGO 111476, TM000A14901, 36100-47600, 111476

    • Normalised article numbler
      acs952, cst35102, drs3036, drs3036x, drs3343, drs3343n, f032111476, f042s01220, hk988300, isj0010, js770, lrs00896, m002t57771, m002t57773, m002t74171, m2t57771, m2t57773, m2t60185, m2t61171, m2t63171, m2t74171, md121581, md140190, md156987, md164976, md191437, mg120445, rgo111476, s5046, str7042, tm000a14901, 8ea011610901, 8ea731805001, 4291, 9507, 11597, 20770, 104216, 111476, 201071, 220013, 220013a, 220159, 220159a, 252005, 253322, 458491, 600069, 600072, 726102, 726902, 2752506, 8213296, 11040623, 063522603, 326013102, 626017102, 0986014141, 0986018731, 3610047600, 063522603010
