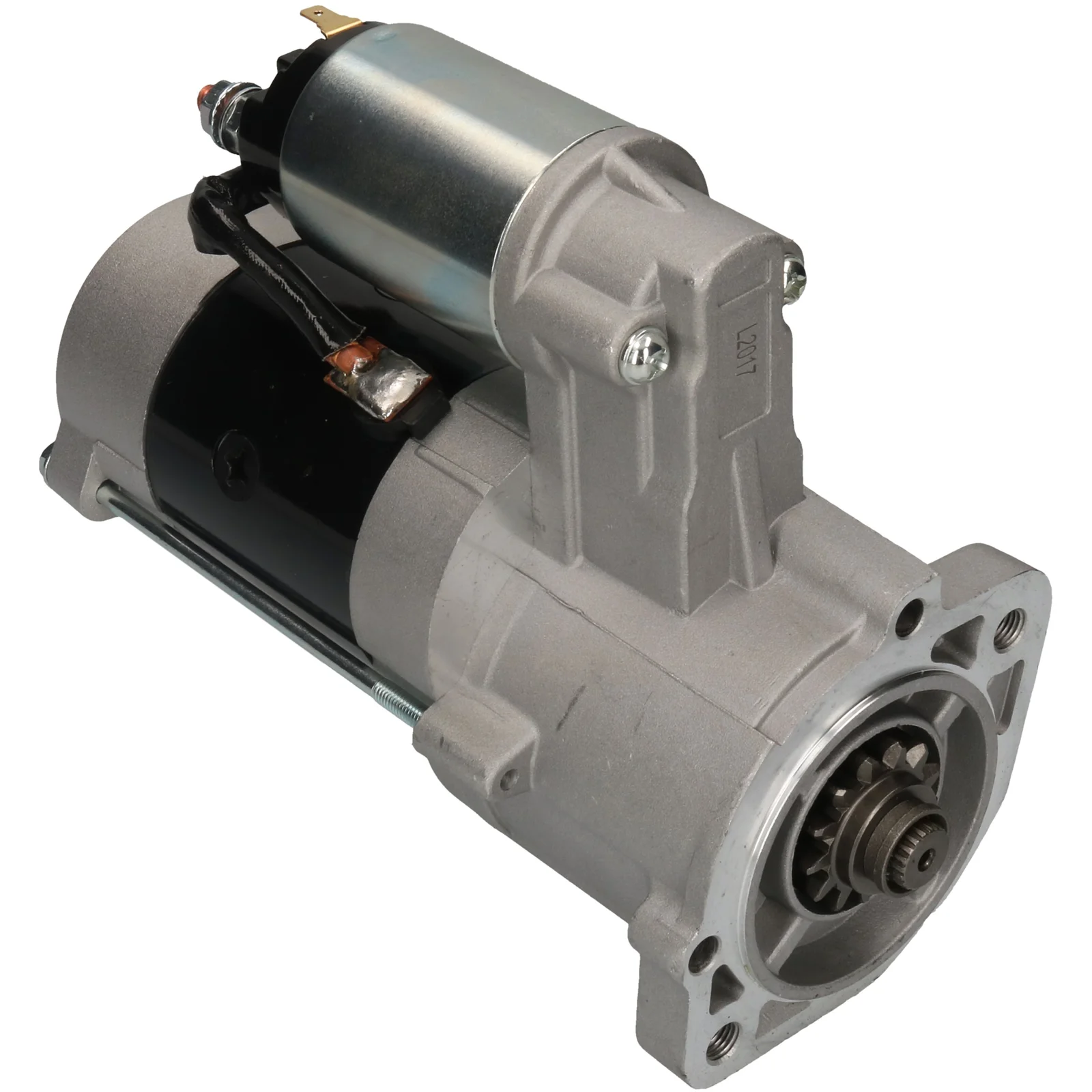

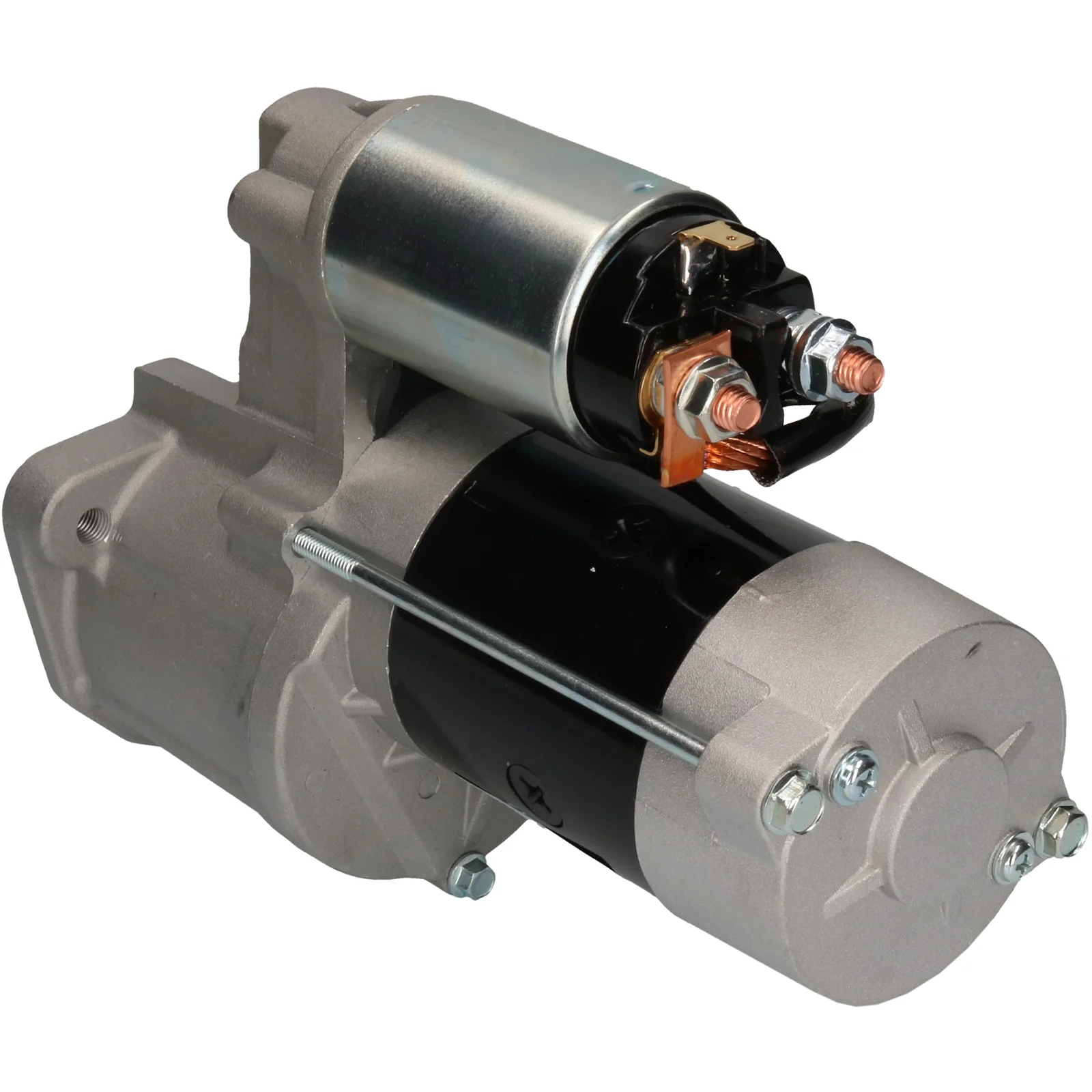

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111461

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 13, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 77.00
Drive distance: 3.50
Distance/backup: 222.00
Distance/front: 17.00
Number/teeth: 13
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 104.50
Rotation: CW
Total length in millimeters: 240.00
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (2)

Files

  • OEM
    AZE4635, F032111461, js769, M002T60171, M002T60172, M002T61071, M002T61072, m2t60171, m2t60172, m2t61071, m2t61072, MD070933, md072654, md095865, md156989, md164977, RGO 111461, 11.139.413, 3610042011ES

  • Normalised article numbler
    acs111, aze4635, cst35104, drs3036, drs3036x, drs3336, drs3339, f032111461, f042001164, f042202529, f042s01164, is9407, js769, lrs00617, m002t60171, m002t60172, m002t61071, m002t61072, m2t60171, m2t60172, m2t61071, m2t61072, md070933, md072654, md095865, md156989, md164977, ms233, qs1417, rgo111461, str6046, 8ea011610891, 8ea731804001, 1212, 9520, 11468, 16854, 20769, 21170mi, 103721, 220013, 220013a, 220461, 220461a, 250436, 250466, 250499, 251343, 438121, 600219, 2752506, 2752521, 11040092, 11040107, 11139413, 326005092, 326005102, 326020132, 326055102, 0986014131, 0986014141, 3610042011es
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 77.00
    Drive distance: 3.50
    Distance/backup: 222.00
    Distance/front: 17.00
    Number/teeth: 13
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 104.50
    Rotation: CW
    Total length in millimeters: 240.00
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      AZE4635, F032111461, js769, M002T60171, M002T60172, M002T61071, M002T61072, m2t60171, m2t60172, m2t61071, m2t61072, MD070933, md072654, md095865, md156989, md164977, RGO 111461, 11.139.413, 3610042011ES

    • Normalised article numbler
      acs111, aze4635, cst35104, drs3036, drs3036x, drs3336, drs3339, f032111461, f042001164, f042202529, f042s01164, is9407, js769, lrs00617, m002t60171, m002t60172, m002t61071, m002t61072, m2t60171, m2t60172, m2t61071, m2t61072, md070933, md072654, md095865, md156989, md164977, ms233, qs1417, rgo111461, str6046, 8ea011610891, 8ea731804001, 1212, 9520, 11468, 16854, 20769, 21170mi, 103721, 220013, 220013a, 220461, 220461a, 250436, 250466, 250499, 251343, 438121, 600219, 2752506, 2752521, 11040092, 11040107, 11139413, 326005092, 326005102, 326020132, 326055102, 0986014131, 0986014141, 3610042011es
