Article no.: F032112006

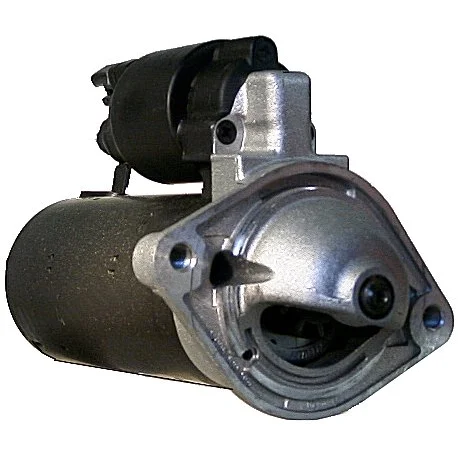

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 74.00
Drive distance: 3.50
Dist./back: 207.50
Dist./front: 42.00
Number/teeth: 9
B+: M8
Position/B+: 20
Position/50: 60
Terminal 50: 4.80
Gear type: GR
Dist. mm: 114.50
Rotation: CW
Total length mm: 250.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (2)

Files

  • OEM
    F032112006, js1135, RGO 112006, 28100-0b010, 28100-0b020, 28100-0g010, 28100-0G020, 428000-0720, 1019852, 1057811, 0001109034, 0001110132, 0001218766, 7275964

  • Normalised article numbler
    cst10113, cst40302, dendsn950, drs7500, drs8680, drs8680x, dsn950, f032112006, f042202533, f042s00274, j5212117, j5212124, js1135, lrs02099, lrt00182, qs2272, rgo112006, s0020, s0020pr, s0471, s6249denso, s6258s, sr598x, str50147, str8284, 8ea011350491, 8ea011610631, 8ea737543001, 4174n, 4174r, 4568, 9521, 31183n, 31184n, 31184r, 104580, 201067, 201135, 220094, 220094a, 252096, 252477, 281000b010, 281000b020, 281000g010, 281000g020, 438440, 438441, 458260, 458514, 726122, 726922, 1019852, 1057811, 0001109034, 0001110132, 0001218766, 7275964, 8017500, 8018680, 11040607, 335061102, 335089092, 0986017500, 0986017503, 0986018680, 4280000720, 063280077010, 063521101320, 944280175000, 944280186800
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 74.00
    Drive distance: 3.50
    Dist./back: 207.50
    Dist./front: 42.00
    Number/teeth: 9
    B+: M8
    Position/B+: 20
    Position/50: 60
    Terminal 50: 4.80
    Gear type: GR
    Dist. mm: 114.50
    Rotation: CW
    Total length mm: 250.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032112006, js1135, RGO 112006, 28100-0b010, 28100-0b020, 28100-0g010, 28100-0G020, 428000-0720, 1019852, 1057811, 0001109034, 0001110132, 0001218766, 7275964

    • Normalised article numbler
      cst10113, cst40302, dendsn950, drs7500, drs8680, drs8680x, dsn950, f032112006, f042202533, f042s00274, j5212117, j5212124, js1135, lrs02099, lrt00182, qs2272, rgo112006, s0020, s0020pr, s0471, s6249denso, s6258s, sr598x, str50147, str8284, 8ea011350491, 8ea011610631, 8ea737543001, 4174n, 4174r, 4568, 9521, 31183n, 31184n, 31184r, 104580, 201067, 201135, 220094, 220094a, 252096, 252477, 281000b010, 281000b020, 281000g010, 281000g020, 438440, 438441, 458260, 458514, 726122, 726922, 1019852, 1057811, 0001109034, 0001110132, 0001218766, 7275964, 8017500, 8018680, 11040607, 335061102, 335089092, 0986017500, 0986017503, 0986018680, 4280000720, 063280077010, 063521101320, 944280175000, 944280186800
