Article no.: F032111874

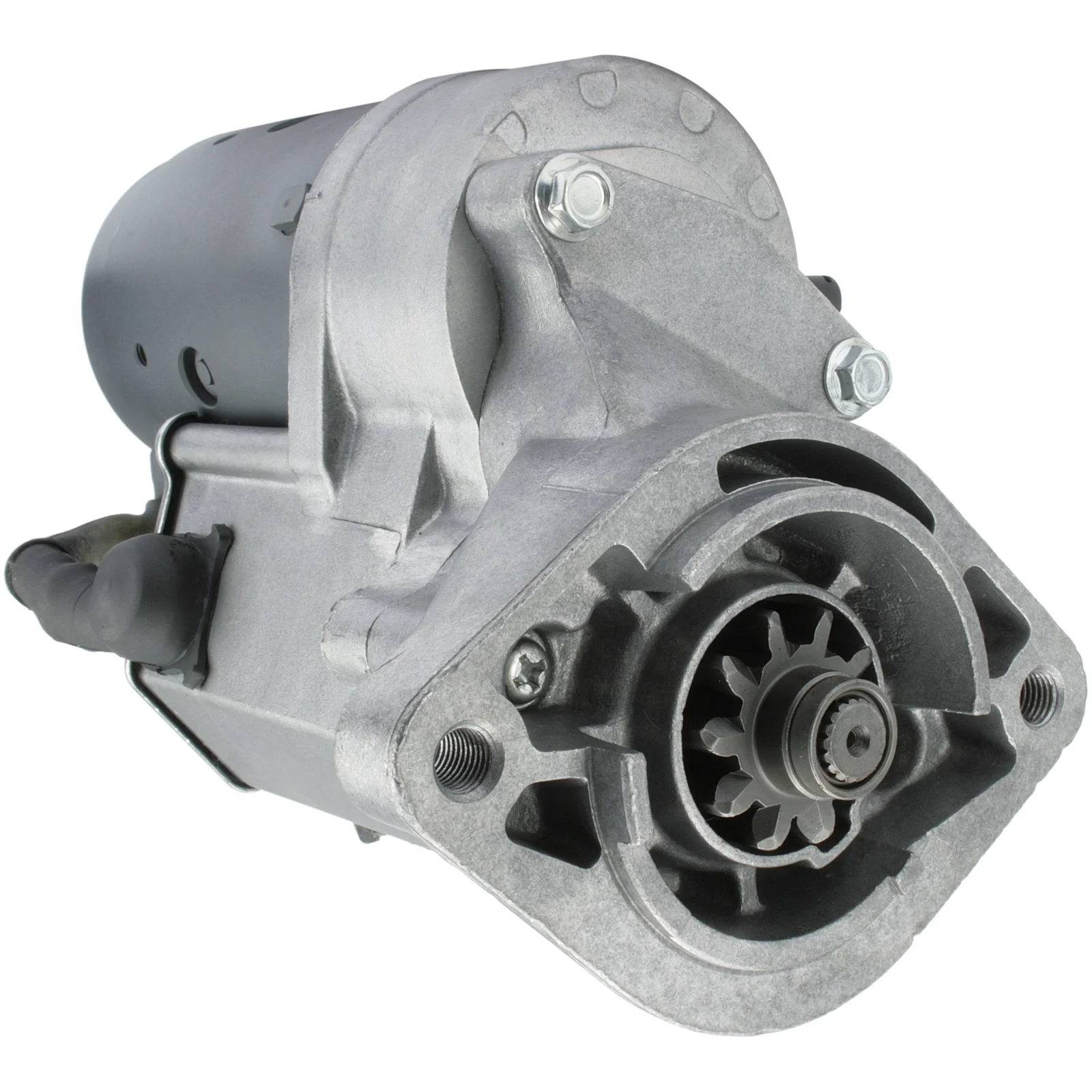

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 74.00
Drive distance: 3.50
Distance / back: 169.00
Distance / front: 15.50
Number / teeth: 9
B+: M8
Position / 50: 20
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 115.00
Rotation: CW
Total length in millimeters: 234.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (2)

Files

  • OEM
    F032111874, js1088, RGO 111874, 1986S00954, 28100-08010, 28100-0B010A, 28100-64310, 28100-64350, 28100-64430, 228000-3640, 228000-3641, 228000-3642, 228000-9220, 228000-9221, 0001218166

  • Normalised article numbler
    cst44105, dendsn928, drs7500, dsn928, f032111874, f042s0h032, j5212086, js1088, lrs01591, lrt00127, rgo111874, s6083, s6083denso, strh032, 8ea012526021, 8ea012528431, 8ea737419001, 1986s00954, 4529, 31185r, 31347n, 31379r, 103651, 105303, 105365, 201088, 220703, 220703a, 251228, 252096, 253105, 281000b010a, 438440, 458580, 838015, 0001218166, 8052286, 8212681, 11040257, 11040649, 063280052, 335043102, 0986020581, 2280003640, 2280003641, 2280003642, 2280009220, 2280009221, 2810008010, 2810064310, 2810064350, 2810064430, 063280052010, 944280522860
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 74.00
    Drive distance: 3.50
    Distance / back: 169.00
    Distance / front: 15.50
    Number / teeth: 9
    B+: M8
    Position / 50: 20
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 115.00
    Rotation: CW
    Total length in millimeters: 234.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032111874, js1088, RGO 111874, 1986S00954, 28100-08010, 28100-0B010A, 28100-64310, 28100-64350, 28100-64430, 228000-3640, 228000-3641, 228000-3642, 228000-9220, 228000-9221, 0001218166

    • Normalised article numbler
      cst44105, dendsn928, drs7500, dsn928, f032111874, f042s0h032, j5212086, js1088, lrs01591, lrt00127, rgo111874, s6083, s6083denso, strh032, 8ea012526021, 8ea012528431, 8ea737419001, 1986s00954, 4529, 31185r, 31347n, 31379r, 103651, 105303, 105365, 201088, 220703, 220703a, 251228, 252096, 253105, 281000b010a, 438440, 458580, 838015, 0001218166, 8052286, 8212681, 11040257, 11040649, 063280052, 335043102, 0986020581, 2280003640, 2280003641, 2280003642, 2280009220, 2280009221, 2810008010, 2810064310, 2810064350, 2810064430, 063280052010, 944280522860
