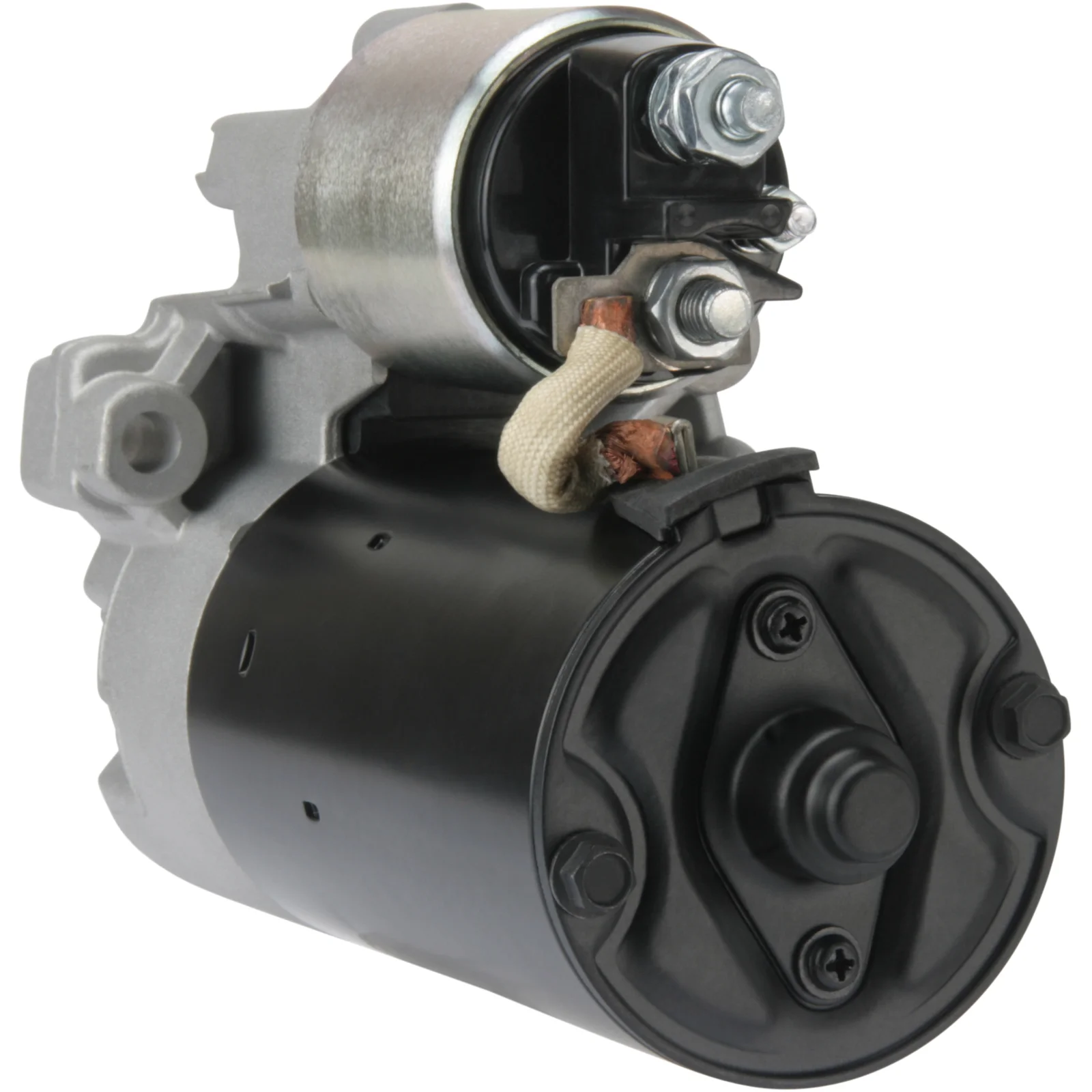

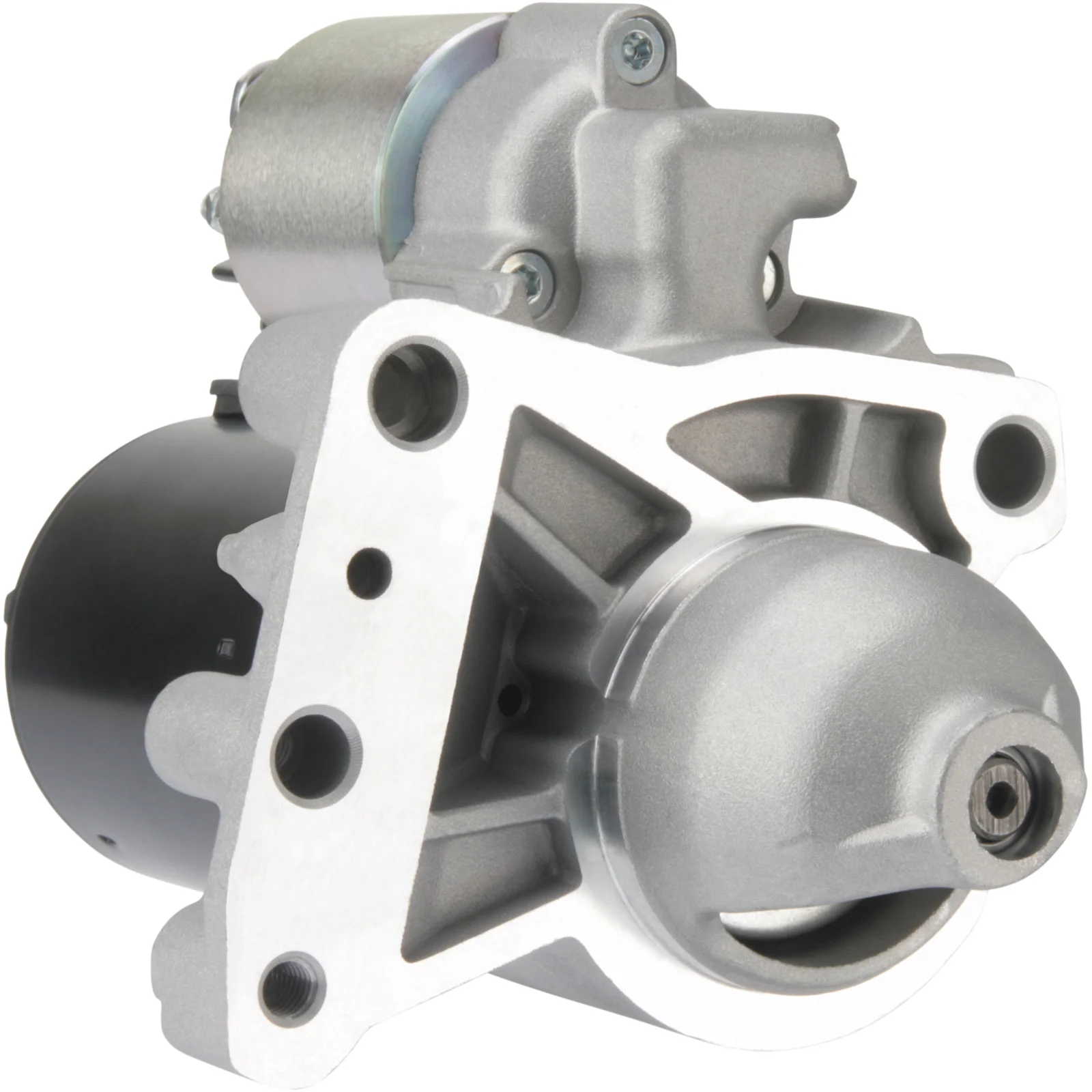

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114849

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.7
Mounting flange: 60.00
Drive distance: 14.00
Mounting hole 4 mm: 9.00
Mounting hole 3 mm: M8
Mounting hole 1 mm: 9.00
Distance/back: 162.00
Distance/front: 48.50
Number of teeth: 11
B+: M8
Position/50: 15
Terminal 50: M5
Gear type: GR
Distance 2: 29.50
Distance 3: 45.00
Distance 4: 91.00
Distance in mm: 124.00
Rotation: CW
Total length in mm: 228.00
Starter motor type: Start/Stop
Production info: BN
Number of mounting holes: 4 (2)

Files

  • OEM
    cs1518, F032114849, RGO 114849, 1986S00829, 0001138005, 0001138006, 7803514, 12417802945, 12417803514, 12417812070, 12417812071

  • Normalised article numbler
    cs1518, cst10409, drs0216, drs0216x, f032114849, les0415, lrs02410, rgo114849, s0324, 1986s00829, 33280n, 107301, 254082, 254646, 438559, 458918, 0001138005, 0001138006, 7803514, 8024060, 11024060, 42024060, 315049112, 450527114, 0986024060, 0986024063, 12417802945, 12417803514, 12417812070, 12417812071
  • Description
    Voltage: 12
    kW: 1.7
    Mounting flange: 60.00
    Drive distance: 14.00
    Mounting hole 4 mm: 9.00
    Mounting hole 3 mm: M8
    Mounting hole 1 mm: 9.00
    Distance/back: 162.00
    Distance/front: 48.50
    Number of teeth: 11
    B+: M8
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Distance 2: 29.50
    Distance 3: 45.00
    Distance 4: 91.00
    Distance in mm: 124.00
    Rotation: CW
    Total length in mm: 228.00
    Starter motor type: Start/Stop
    Production info: BN
    Number of mounting holes: 4 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs1518, F032114849, RGO 114849, 1986S00829, 0001138005, 0001138006, 7803514, 12417802945, 12417803514, 12417812070, 12417812071

    • Normalised article numbler
      cs1518, cst10409, drs0216, drs0216x, f032114849, les0415, lrs02410, rgo114849, s0324, 1986s00829, 33280n, 107301, 254082, 254646, 438559, 458918, 0001138005, 0001138006, 7803514, 8024060, 11024060, 42024060, 315049112, 450527114, 0986024060, 0986024063, 12417802945, 12417803514, 12417812070, 12417812071
