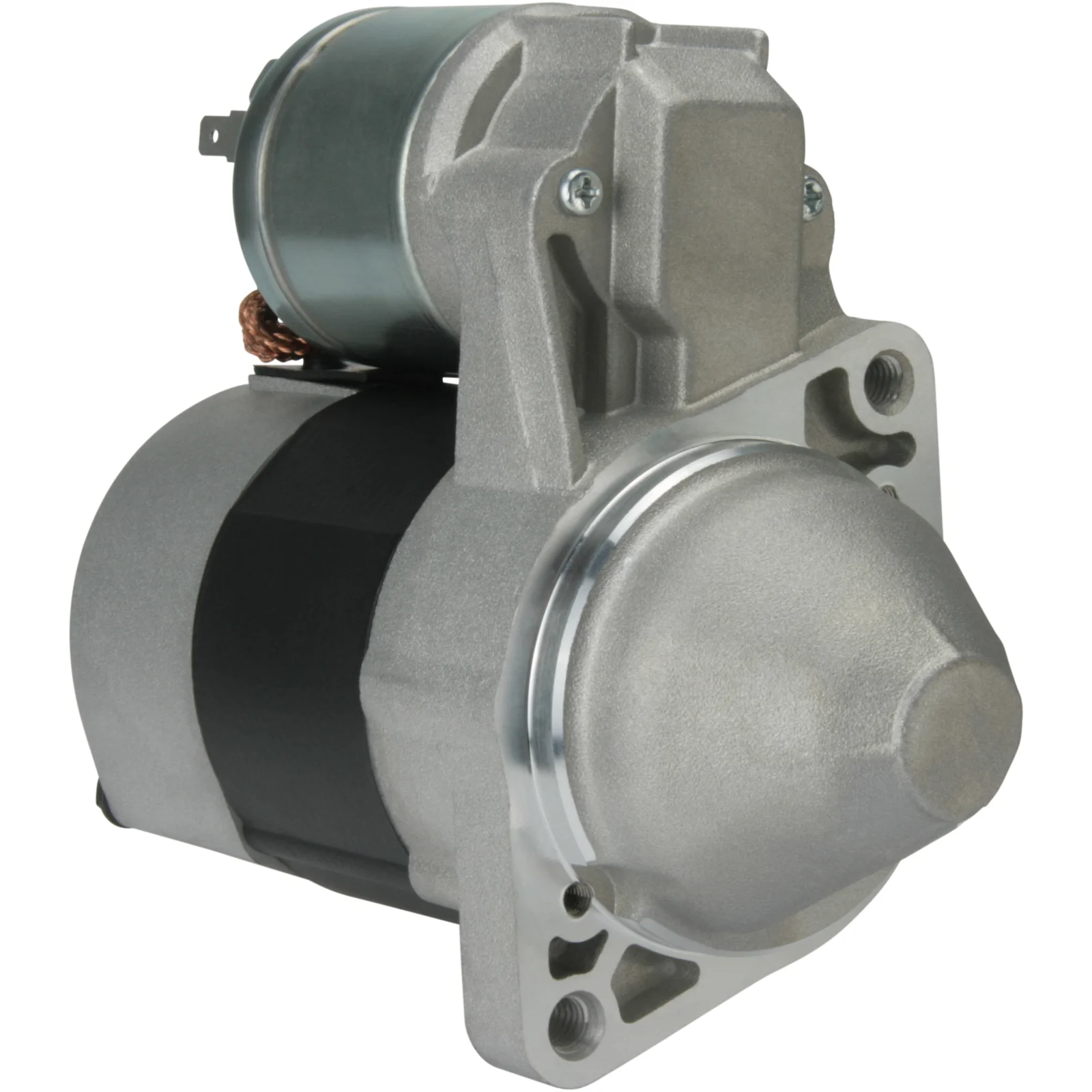

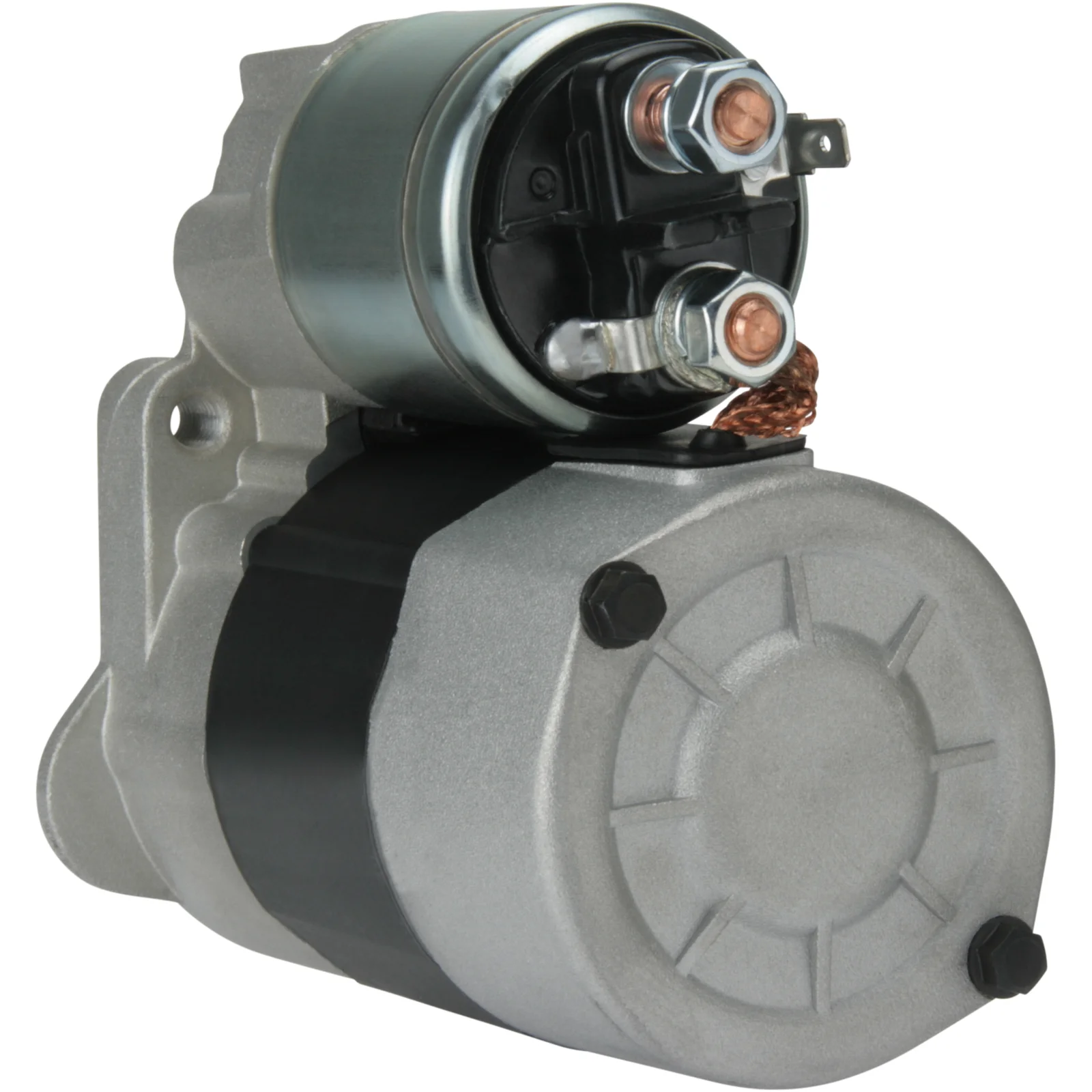

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115951

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.8
Mounting flange: 70.00
Drive distance: 15.00
Dist./back: 124.00
Dist./front: 47.00
Number of teeth: 9
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: DD
Dist. mm: 100.00
Rotation: CW
Total length mm: 172.00
Number of mounting holes: 2 (2)

Files

  • OEM
    A0003188V006, A0051510701, A0051512601, cs1206, F032115951, Q0003188V004000000, Q0003188V005000000, Q0003188V006000000, Q0003188V007000000, RGO 115951, 1986S01022, 0003188V004, 0003188V005, 0003188V006, 0003188V007, 0003188V008, 0003188V008000000, 0051510701, 0051512601, 63101007, 63191007

  • Normalised article numbler
    a0003188v006, a0051510701, a0051512601, cs1206, cst30115, dendsn583, drs3878, drs3878x, dsn583, f032115951, f042s0h042, lrs01461, msn800, q0003188v004000000, q0003188v005000000, q0003188v006000000, q0003188v007000000, rgo115951, s4051, s6109denso, 8ea011611471, 1986s01022, 0003188v004, 0003188v005, 0003188v006, 0003188v007, 0003188v008, 0003188v008000000, 32461n, 32461r, 101206, 104776, 252395, 458471, 8080046, 11022150, 42063191, 0051510701, 0051512601, 63101007, 063191007, 63191007, 550902092, 0986022151, 063191007010, 944280800460
  • Description
    Voltage: 12
    kW: 0.8
    Mounting flange: 70.00
    Drive distance: 15.00
    Dist./back: 124.00
    Dist./front: 47.00
    Number of teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: DD
    Dist. mm: 100.00
    Rotation: CW
    Total length mm: 172.00
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      A0003188V006, A0051510701, A0051512601, cs1206, F032115951, Q0003188V004000000, Q0003188V005000000, Q0003188V006000000, Q0003188V007000000, RGO 115951, 1986S01022, 0003188V004, 0003188V005, 0003188V006, 0003188V007, 0003188V008, 0003188V008000000, 0051510701, 0051512601, 63101007, 63191007

    • Normalised article numbler
      a0003188v006, a0051510701, a0051512601, cs1206, cst30115, dendsn583, drs3878, drs3878x, dsn583, f032115951, f042s0h042, lrs01461, msn800, q0003188v004000000, q0003188v005000000, q0003188v006000000, q0003188v007000000, rgo115951, s4051, s6109denso, 8ea011611471, 1986s01022, 0003188v004, 0003188v005, 0003188v006, 0003188v007, 0003188v008, 0003188v008000000, 32461n, 32461r, 101206, 104776, 252395, 458471, 8080046, 11022150, 42063191, 0051510701, 0051512601, 63101007, 063191007, 63191007, 550902092, 0986022151, 063191007010, 944280800460
