Article no.: F032113286

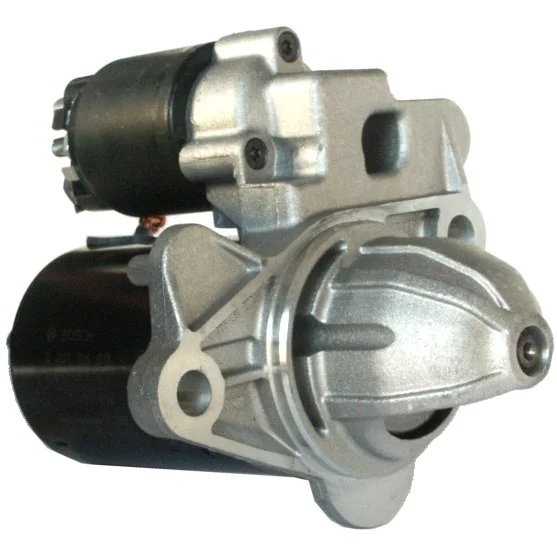

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.9, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.9
Mounting flange: 74.00
Drive distance: 22.00
Mounting hole 2 mm: 12.30
Mounting hole 1 mm: 13.00
Distance / back: 145.50
Distance / front: 55.00
Number / teeth: 9
B+: M8
Position / B+: 60
Position / 50: 15
Terminal 50: M6
Gear type: GR
Distance in millimeters: 119.50
Rotation: CW
Total length in millimeters: 202.50
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    cs1254, F032113286, NAD101470, NAD101471, RGO 113286, 1986S00651, 0001106019, 0001106027, 1489994, 4542741, 7570487, 12411489994, 12411517327, 12414542741, 12417570487

  • Normalised article numbler
    cs1254, cst10167, drs8840, f032113286, lrt00234, nad101470, nad101471, rgo113286, s0684pr, s0684s, str50094, 8ea011610171, 1986s00651, 3031, 17855n, 17855r, 101254, 220918, 220918a, 253247, 438454, 0001106019, 0001106027, 1489994, 4542741, 7570487, 8018840, 11018840, 42018840, 315023092, 0986018840, 0986018843, 0986018847, 12411489994, 12411517327, 12414542741, 12417570487
  • Description
    Voltage: 12
    kW: 0.9
    Mounting flange: 74.00
    Drive distance: 22.00
    Mounting hole 2 mm: 12.30
    Mounting hole 1 mm: 13.00
    Distance / back: 145.50
    Distance / front: 55.00
    Number / teeth: 9
    B+: M8
    Position / B+: 60
    Position / 50: 15
    Terminal 50: M6
    Gear type: GR
    Distance in millimeters: 119.50
    Rotation: CW
    Total length in millimeters: 202.50
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1254, F032113286, NAD101470, NAD101471, RGO 113286, 1986S00651, 0001106019, 0001106027, 1489994, 4542741, 7570487, 12411489994, 12411517327, 12414542741, 12417570487

    • Normalised article numbler
      cs1254, cst10167, drs8840, f032113286, lrt00234, nad101470, nad101471, rgo113286, s0684pr, s0684s, str50094, 8ea011610171, 1986s00651, 3031, 17855n, 17855r, 101254, 220918, 220918a, 253247, 438454, 0001106019, 0001106027, 1489994, 4542741, 7570487, 8018840, 11018840, 42018840, 315023092, 0986018840, 0986018843, 0986018847, 12411489994, 12411517327, 12414542741, 12417570487
