HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113821

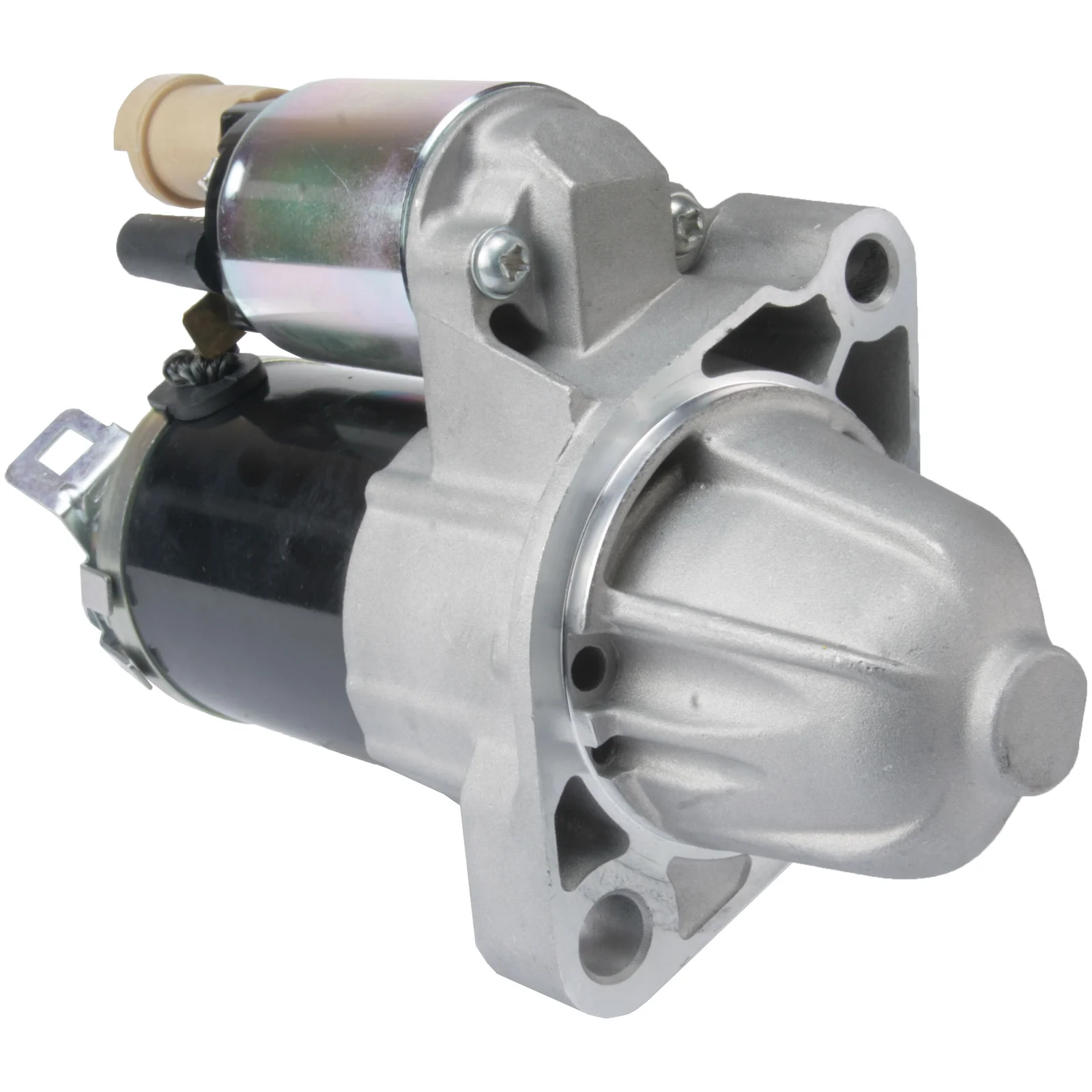

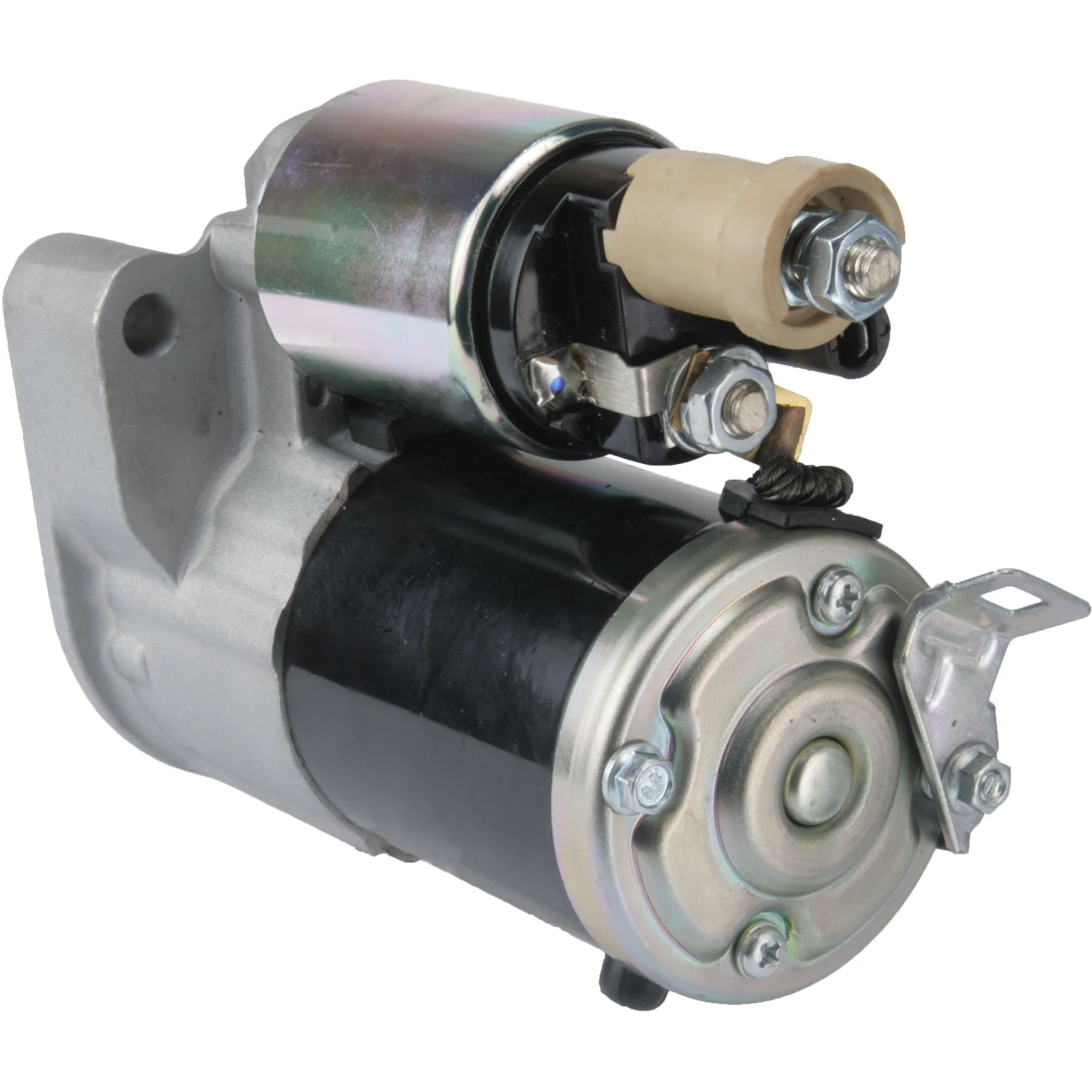

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mount. flange: 75.00
Drive dist.: 33.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 10.50
Dist./back: 145.00
Dist./front: 65.00
No./teeth: 9
B+: M8
Position/50: 20
Terminal 50: 6.30
Gear type: GR
Dist. mm: 115.00
Rotation: CW
Total length mm: 210.00
Clutch type: Dry
Drive type: Steel
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    F032113821, M000T20371, M0T20371, M0T20371ZC, MHG016, RGO 113821, SM612-09, SM710-02, SM710-05, SM710-07, SM730-01, 1986S01283, 31200-raa-a01, 31200-RAA-A51, 31200-RAA-A52, 31200-RAA-A53, 31200-RAA-A61, 31200-RRA-A51, 31200-RZA-A01

  • Normalised article numbler
    cst33130, cst33132, cst35355, drs0584, f032113821, f042200014, f042s0h064, lrs02351, lrs02429, lrs02435, m000t20371, m0t20371, m0t20371zc, mhg016, rgo113821, s5351s, s80017, s9039, sm61209, sm71002, sm71005, sm71007, sm73001, smu0311, strh064, 1986s01283, 17844n, 17869n, 17870, 17870n, 17959n, 17960n, 22685mt, 31200raaa01, 31200raaa51, 31200raaa52, 31200raaa53, 31200raaa61, 31200rraa51, 31200rzaa01, 220990, 220990a, 254023, 254101, 254107, 254479, 254792, 255048, 11040779, 11040849, 91262053, 120549092, 120560102, 322055092, 322058092, 322059092
  • Description
    Voltage: 12
    kW: 1.4
    Mount. flange: 75.00
    Drive dist.: 33.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 10.50
    Dist./back: 145.00
    Dist./front: 65.00
    No./teeth: 9
    B+: M8
    Position/50: 20
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 115.00
    Rotation: CW
    Total length mm: 210.00
    Clutch type: Dry
    Drive type: Steel
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113821, M000T20371, M0T20371, M0T20371ZC, MHG016, RGO 113821, SM612-09, SM710-02, SM710-05, SM710-07, SM730-01, 1986S01283, 31200-raa-a01, 31200-RAA-A51, 31200-RAA-A52, 31200-RAA-A53, 31200-RAA-A61, 31200-RRA-A51, 31200-RZA-A01

    • Normalised article numbler
      cst33130, cst33132, cst35355, drs0584, f032113821, f042200014, f042s0h064, lrs02351, lrs02429, lrs02435, m000t20371, m0t20371, m0t20371zc, mhg016, rgo113821, s5351s, s80017, s9039, sm61209, sm71002, sm71005, sm71007, sm73001, smu0311, strh064, 1986s01283, 17844n, 17869n, 17870, 17870n, 17959n, 17960n, 22685mt, 31200raaa01, 31200raaa51, 31200raaa52, 31200raaa53, 31200raaa61, 31200rraa51, 31200rzaa01, 220990, 220990a, 254023, 254101, 254107, 254479, 254792, 255048, 11040779, 11040849, 91262053, 120549092, 120560102, 322055092, 322058092, 322059092
