Article no.: F032112221

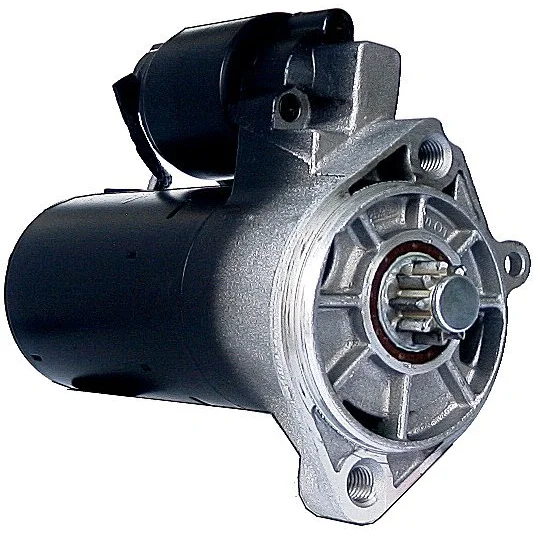

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 82.50
Drive distance: 21.50
Distance/back: 208.00
Distance/front: 25.00
Number of teeth: 9
B+: M8
Position/50: 60
Terminal 50: 4.80
Gear type: GR
Distance in millimeters: 104.00
Rotation: CW
Total length in millimeters: 236.50
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (2)

Files

  • OEM
    b001126016, B001126081, cs1165, F032112221, RGO 112221, 1986S00818, 0001125501, 0001125502, 0001125511, 0001125512, 1516674R, 069911023e, 069911023l, 069911023LX

  • Normalised article numbler
    b001126016, b001126081, cs1165, cst10281, drs8380, drs8380n, f032112221, f042s0h039, lrs01389, pbns3047, rgo112221, s0049, str50070, strh039, 8ea012527741, 8ea737680001, 1986s00818, 3024, 4603, 32389n, 32389r, 101165, 103710, 220581, 220581a, 252270, 458495, 0001125501, 0001125502, 0001125511, 0001125512, 1516674r, 8018380, 8018940, 11018380, 20513047, 42018380, 069911023e, 069911023l, 069911023lx, 311071092, 0986018380, 943253153010, 944280183800
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 82.50
    Drive distance: 21.50
    Distance/back: 208.00
    Distance/front: 25.00
    Number of teeth: 9
    B+: M8
    Position/50: 60
    Terminal 50: 4.80
    Gear type: GR
    Distance in millimeters: 104.00
    Rotation: CW
    Total length in millimeters: 236.50
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      b001126016, B001126081, cs1165, F032112221, RGO 112221, 1986S00818, 0001125501, 0001125502, 0001125511, 0001125512, 1516674R, 069911023e, 069911023l, 069911023LX

    • Normalised article numbler
      b001126016, b001126081, cs1165, cst10281, drs8380, drs8380n, f032112221, f042s0h039, lrs01389, pbns3047, rgo112221, s0049, str50070, strh039, 8ea012527741, 8ea737680001, 1986s00818, 3024, 4603, 32389n, 32389r, 101165, 103710, 220581, 220581a, 252270, 458495, 0001125501, 0001125502, 0001125511, 0001125512, 1516674r, 8018380, 8018940, 11018380, 20513047, 42018380, 069911023e, 069911023l, 069911023lx, 311071092, 0986018380, 943253153010, 944280183800
