Article no.: F032110708

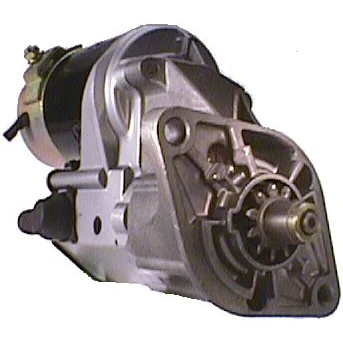

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 11, Rotation: CW

Description

Starter motor 12V - 0.9kW, 9k 12V - 0.9kW, 9k For Yourex product order 91-620-1338

Voltage: 12
kW: 2.7
Mount. flange: 82.50
Drive distance: 15.50
Mount. hole 2 mm: 13.00
Distance/back: 194.00
Distance/front: 41.00
No./teeth: 11
B+: M10
Terminal 50: M5
Gear type: GR
Distance mm: 133.50
Rotation: CW
Total length mm: 296.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mounting holes: 2 (1)

Files

  • OEM
    F032110708, js392, RGO 110708, 0001 212 400, 0001 212 401, 11-0708, 0986 013 380, 9007 042 015, 9007 042 016, 028000-5580, 028000-5581, 028000-5582, 028000-6860, 028000-6861, 028000-6870, 028000-6871, 028000-6872, 028000-6880, 028000-6881, 028000-6882, 028000-6890, 028000-6891, 028000-6892, 028000-6893, 028000-6910, 028000-6911, 028000-6912, 028000-7660, 028000-7661, 028000-7662, 028000-8070, 028000-8071, 028000-8072, 28100-45061, 28100-51450, 28100-54010, 28100-54011, 28100-54032, 28100-54042, 28100-54051, 28100-54052, 28100-54061, 28100-54090, 28100-540900, 28100-54140, 28100-54150, 28100-54190, 28100-54220, 28100-54250, 28100-54300, 28100-54430, 28100-54480, 128000-0520, 128000-6330, 128000-6810, 128000-6811, 128000-6812, 128000-6830, 128000-6831, 128000-6832, 128000-6833, 128000-7360, 128000-7361, 128000-7362, 128000-7363, 128000-7920, 128000-7921, 128000-7922, 128000-7923, 128000-9580, 128000-9581, 128000-9582, 1516969R

  • Normalised article numbler
    ats195, ats216, ats219, cst40107, cst40159, drs3019, drs4471, f032110708, frs198, j5212026, js392, lrs00507, qs1434, rgo110708, s6068, sr269x, str70011, 8ea012526031, 8ea726480001, 1235, 9714, 11494, 16830, 16830n, 20392, 21037nd, 103255, 110708, 220103, 220103a, 250321, 250419, 455595, 0001212400, 0001212401, 1516969r, 3350094, 3952206, 3952211, 3952226, 3952269, 8052226, 8213176, 11040217, 20500507, 0280005580, 0280005581, 0280005582, 0280006860, 0280006861, 0280006870, 0280006871, 0280006872, 0280006880, 0280006881, 0280006882, 0280006890, 0280006891, 0280006892, 0280006893, 0280006910, 0280006911, 0280006912, 0280007660, 0280007661, 0280007662, 0280008070, 0280008071, 0280008072, 335009112, 0986013380, 0986014471, 0986018751, 1280000520, 1280006330, 1280006810, 1280006811, 1280006812, 1280006830, 1280006831, 1280006832, 1280006833, 1280007360, 1280007361, 1280007362, 1280007363, 1280007920, 1280007921, 1280007922, 1280007923, 1280009580, 1280009581, 1280009582, 2810045061, 2810051450, 2810054010, 2810054011, 2810054032, 2810054042, 2810054051, 2810054052, 2810054061, 2810054090, 2810054140, 2810054150, 2810054190, 2810054220, 2810054250, 2810054300, 2810054430, 2810054480, 9007042015, 9007042016, 28100540900, 944280522260
  • Description
    Starter motor 12V - 0.9kW, 9k 12V - 0.9kW, 9k For Yourex product order 91-620-1338

    Voltage: 12
    kW: 2.7
    Mount. flange: 82.50
    Drive distance: 15.50
    Mount. hole 2 mm: 13.00
    Distance/back: 194.00
    Distance/front: 41.00
    No./teeth: 11
    B+: M10
    Terminal 50: M5
    Gear type: GR
    Distance mm: 133.50
    Rotation: CW
    Total length mm: 296.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032110708, js392, RGO 110708, 0001 212 400, 0001 212 401, 11-0708, 0986 013 380, 9007 042 015, 9007 042 016, 028000-5580, 028000-5581, 028000-5582, 028000-6860, 028000-6861, 028000-6870, 028000-6871, 028000-6872, 028000-6880, 028000-6881, 028000-6882, 028000-6890, 028000-6891, 028000-6892, 028000-6893, 028000-6910, 028000-6911, 028000-6912, 028000-7660, 028000-7661, 028000-7662, 028000-8070, 028000-8071, 028000-8072, 28100-45061, 28100-51450, 28100-54010, 28100-54011, 28100-54032, 28100-54042, 28100-54051, 28100-54052, 28100-54061, 28100-54090, 28100-540900, 28100-54140, 28100-54150, 28100-54190, 28100-54220, 28100-54250, 28100-54300, 28100-54430, 28100-54480, 128000-0520, 128000-6330, 128000-6810, 128000-6811, 128000-6812, 128000-6830, 128000-6831, 128000-6832, 128000-6833, 128000-7360, 128000-7361, 128000-7362, 128000-7363, 128000-7920, 128000-7921, 128000-7922, 128000-7923, 128000-9580, 128000-9581, 128000-9582, 1516969R

    • Normalised article numbler
      ats195, ats216, ats219, cst40107, cst40159, drs3019, drs4471, f032110708, frs198, j5212026, js392, lrs00507, qs1434, rgo110708, s6068, sr269x, str70011, 8ea012526031, 8ea726480001, 1235, 9714, 11494, 16830, 16830n, 20392, 21037nd, 103255, 110708, 220103, 220103a, 250321, 250419, 455595, 0001212400, 0001212401, 1516969r, 3350094, 3952206, 3952211, 3952226, 3952269, 8052226, 8213176, 11040217, 20500507, 0280005580, 0280005581, 0280005582, 0280006860, 0280006861, 0280006870, 0280006871, 0280006872, 0280006880, 0280006881, 0280006882, 0280006890, 0280006891, 0280006892, 0280006893, 0280006910, 0280006911, 0280006912, 0280007660, 0280007661, 0280007662, 0280008070, 0280008071, 0280008072, 335009112, 0986013380, 0986014471, 0986018751, 1280000520, 1280006330, 1280006810, 1280006811, 1280006812, 1280006830, 1280006831, 1280006832, 1280006833, 1280007360, 1280007361, 1280007362, 1280007363, 1280007920, 1280007921, 1280007922, 1280007923, 1280009580, 1280009581, 1280009582, 2810045061, 2810051450, 2810054010, 2810054011, 2810054032, 2810054042, 2810054051, 2810054052, 2810054061, 2810054090, 2810054140, 2810054150, 2810054190, 2810054220, 2810054250, 2810054300, 2810054430, 2810054480, 9007042015, 9007042016, 28100540900, 944280522260
