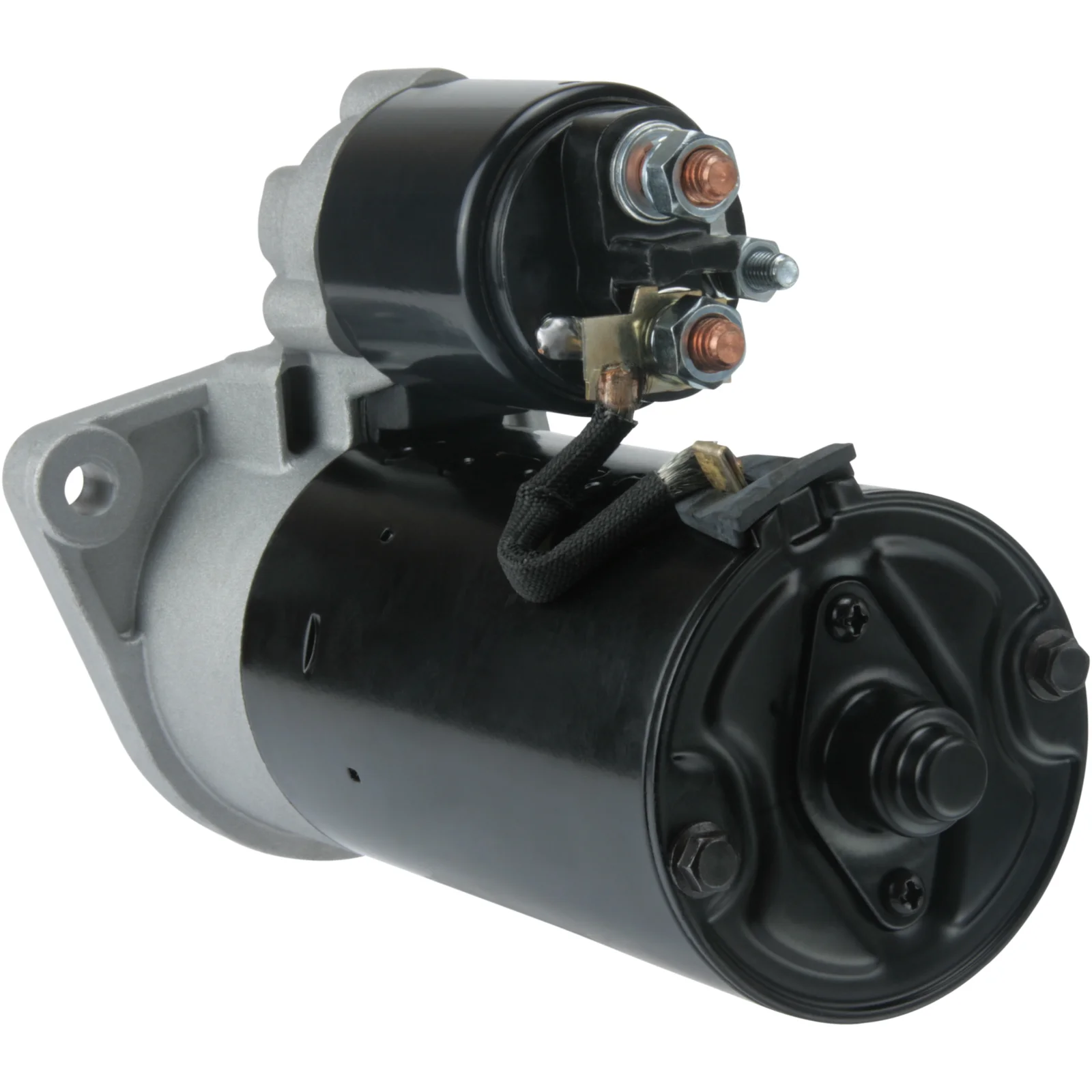

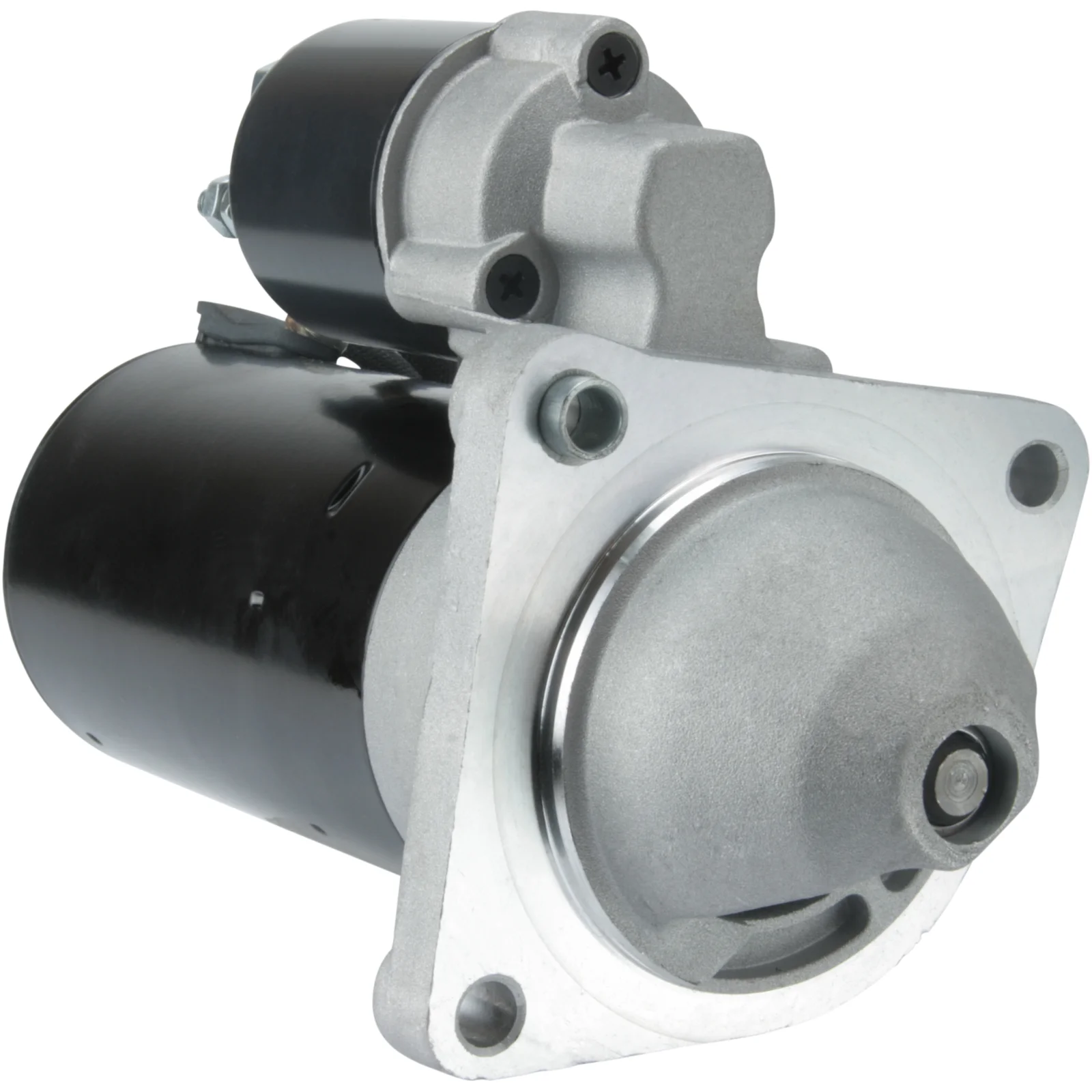

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114321

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 82.00
Drive distance: 11.00
Mounting hole 3 mm: 9.20
Mounting hole 2 mm: 9.20
Mounting hole 1 mm: 9.20
Distance/back: 178.00
Distance/front: 45.00
Number of teeth: 9
B+: M8
Position/50: 20
Terminal 50: M6
Gear type: GR
Distance 2: 115.50
Distance 3: 82.00
Distance mm: 82.00
Rotation: CW
Total length mm: 238.00
Clutch type: Dry
Drive type: Steel
Number of mounting holes: 3 (0)

Files

  • OEM
    F032114321, RGO 114321, 1986S00701, 0001108204, 0001108247, 0001109048, 46437520, 46830212, 46835091

  • Normalised article numbler
    cst10358, drs8450, drs8450x, f032114321, f042s0h109, is0996, lrt00200, ms372, rgo114321, s0246, strh109, 8ea011610961, 1986s00701, 3014, 31202n, 201112, 220155, 220155a, 253175, 458585, 726905, 0001108204, 0001108247, 0001109048, 8018450, 11018450, 42018450, 46437520, 46830212, 46835091, 318086092, 500531093, 0986018450, 063521082040, 944280184500
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 82.00
    Drive distance: 11.00
    Mounting hole 3 mm: 9.20
    Mounting hole 2 mm: 9.20
    Mounting hole 1 mm: 9.20
    Distance/back: 178.00
    Distance/front: 45.00
    Number of teeth: 9
    B+: M8
    Position/50: 20
    Terminal 50: M6
    Gear type: GR
    Distance 2: 115.50
    Distance 3: 82.00
    Distance mm: 82.00
    Rotation: CW
    Total length mm: 238.00
    Clutch type: Dry
    Drive type: Steel
    Number of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114321, RGO 114321, 1986S00701, 0001108204, 0001108247, 0001109048, 46437520, 46830212, 46835091

    • Normalised article numbler
      cst10358, drs8450, drs8450x, f032114321, f042s0h109, is0996, lrt00200, ms372, rgo114321, s0246, strh109, 8ea011610961, 1986s00701, 3014, 31202n, 201112, 220155, 220155a, 253175, 458585, 726905, 0001108204, 0001108247, 0001109048, 8018450, 11018450, 42018450, 46437520, 46830212, 46835091, 318086092, 500531093, 0986018450, 063521082040, 944280184500
