Article no.: F032113965

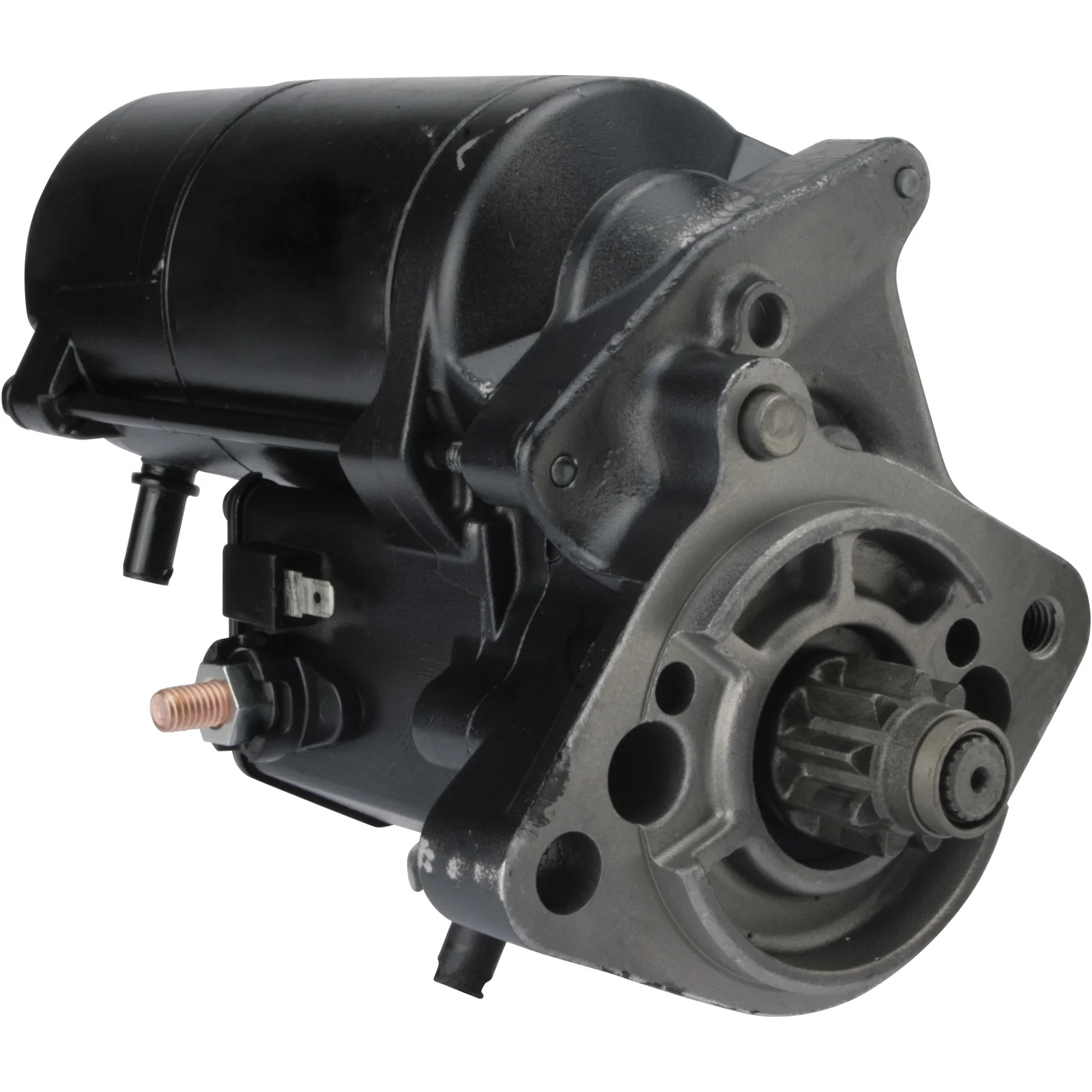

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mount. flange: 76.00
Drive distance: 21.00
Mount. hole 2 mm: 11.00
Distance / back: 121.50
Distance / front: 33.00
Number / teeth: 9
B+: M8
Position / B+: 15
Position / 50: 10
Terminal 50: 6.30
Gear type: GR
Distributor mm: 105.00
Rotation: CW
Total length mm: 221.00
Drive type: Steel
Prod. info: BN
Remarks: Available with fixing hole 2(1) and 2(2).
Number / mount. holes: 2 (1)

Files

  • OEM
    F032113965, js1321, NAD101140, nad101500, RGO 113965, 1986S00959, 228000-7800, 228000-7801

  • Normalised article numbler
    cst40163, drs3805, dsn601, f032113965, f042200133, f042202528, f042s00271, js1321, les0274, lrs01551, nad101140, nad101500, rgo113965, s6012, str5037, 8ea011610791, 8ea738237001, 1986s00959, 3658, 32556n, 32556r, 32557r, 105421, 201321, 220207, 220207a, 253045, 458379, 8080133, 8212673, 11022620, 42022621, 314028092, 0986022621, 2280007800, 2280007801, 944280801330
  • Description
    Voltage: 12
    kW: 2.0
    Mount. flange: 76.00
    Drive distance: 21.00
    Mount. hole 2 mm: 11.00
    Distance / back: 121.50
    Distance / front: 33.00
    Number / teeth: 9
    B+: M8
    Position / B+: 15
    Position / 50: 10
    Terminal 50: 6.30
    Gear type: GR
    Distributor mm: 105.00
    Rotation: CW
    Total length mm: 221.00
    Drive type: Steel
    Prod. info: BN
    Remarks: Available with fixing hole 2(1) and 2(2).
    Number / mount. holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032113965, js1321, NAD101140, nad101500, RGO 113965, 1986S00959, 228000-7800, 228000-7801

    • Normalised article numbler
      cst40163, drs3805, dsn601, f032113965, f042200133, f042202528, f042s00271, js1321, les0274, lrs01551, nad101140, nad101500, rgo113965, s6012, str5037, 8ea011610791, 8ea738237001, 1986s00959, 3658, 32556n, 32556r, 32557r, 105421, 201321, 220207, 220207a, 253045, 458379, 8080133, 8212673, 11022620, 42022621, 314028092, 0986022621, 2280007800, 2280007801, 944280801330
