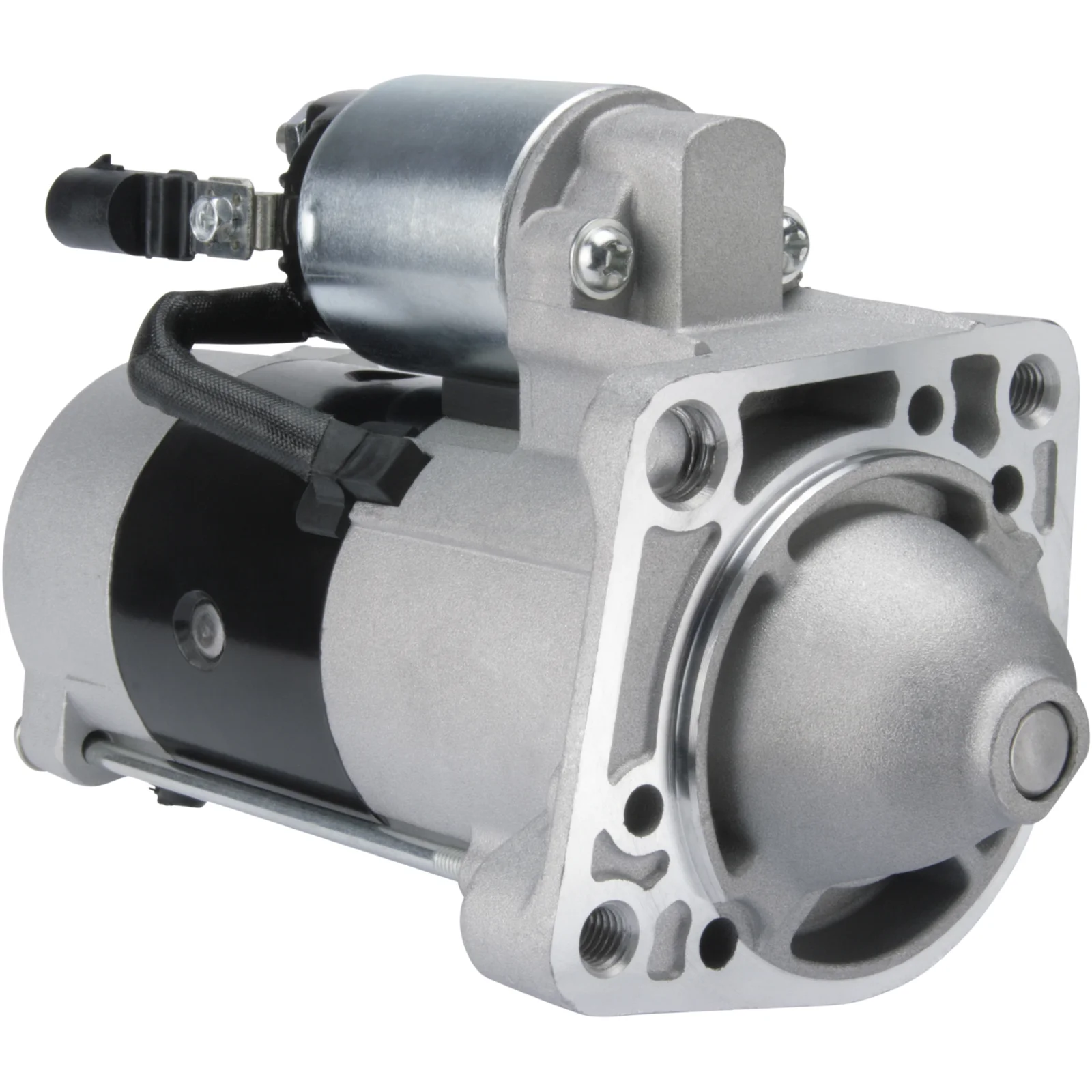

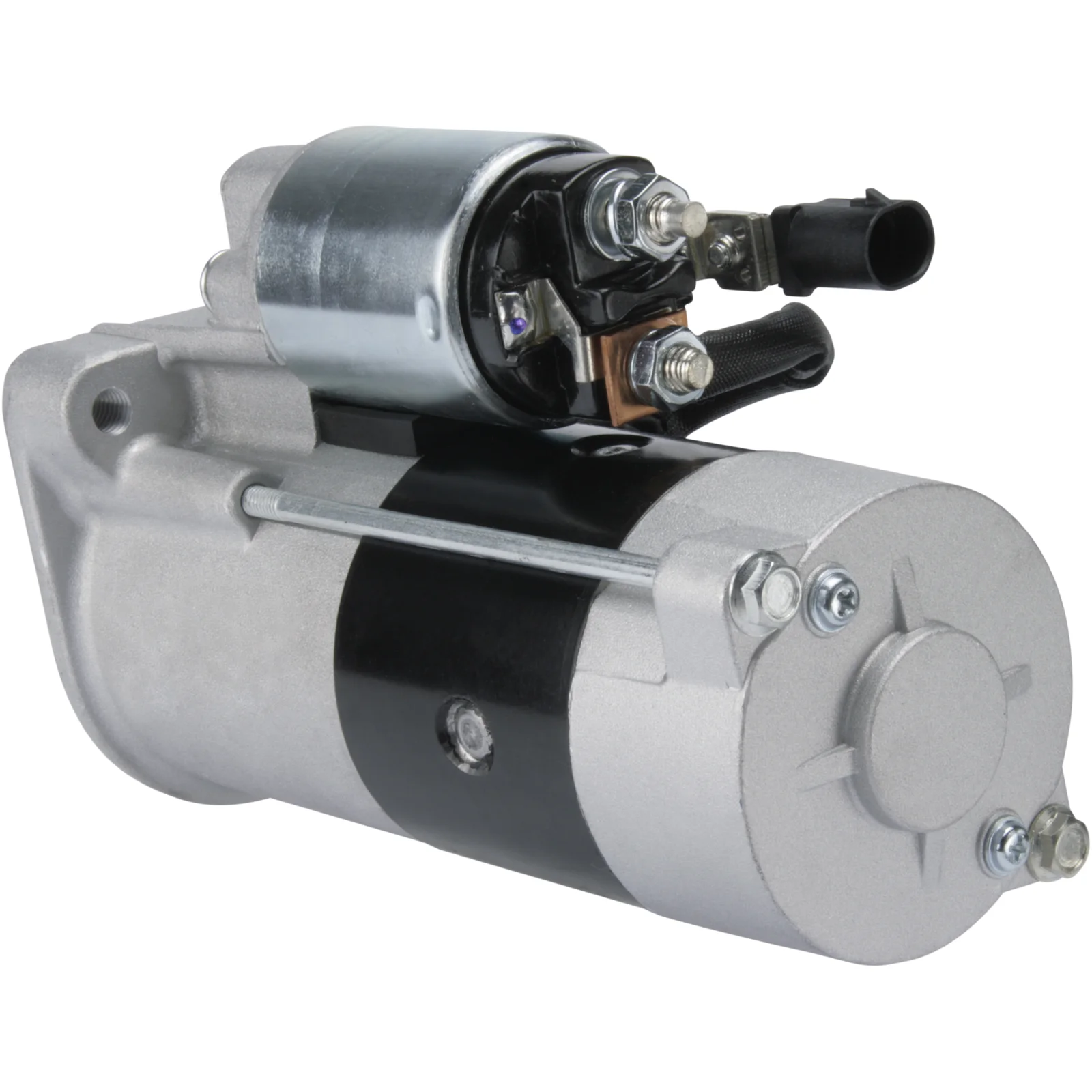

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114283

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 82.50
Drive distance: 0.00
Mounting hole 3 mm: 10.00
Distance/behind: 190.00
Distance/in front: 37.00
Number/teeth: 10
B+: M8
Position/50: 15
Terminal 50: Plug
Gear type: GR
Distance 2: 69.00
Distance 3: 75.00
Distance mm: 116.00
Rotation: CW
Total length mm: 227.00
Number/mounting holes: 3 (2)

Files

  • OEM
    cs1454, F032114283, M002T88471, M002T88472, M002T88473, m2t88471, M2T88472, m2t88473, RGO 116024, 04727313AA, 04727313AB, 04727313Ac, 4727313AA, 4727313AB, 4727313AC

  • Normalised article numbler
    cs1454, cst35179, drs0094, drs0422, f032114283, f042s0h105, lrs02212, lrs02339, m002t88471, m002t88472, m002t88473, m2t88471, m2t88472, m2t88473, rgo116024, s5100, strh105, 8ea738259161, 3663, 33212n, 33339n, 101454, 105151, 220692, 220692a, 253383, 254011, 458846, 04727313aa, 04727313ab, 04727313ac, 4727313aa, 4727313ab, 4727313ac, 11040734, 11040767, 634033102, 634036102, 830562103, 0986024680
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 82.50
    Drive distance: 0.00
    Mounting hole 3 mm: 10.00
    Distance/behind: 190.00
    Distance/in front: 37.00
    Number/teeth: 10
    B+: M8
    Position/50: 15
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 69.00
    Distance 3: 75.00
    Distance mm: 116.00
    Rotation: CW
    Total length mm: 227.00
    Number/mounting holes: 3 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs1454, F032114283, M002T88471, M002T88472, M002T88473, m2t88471, M2T88472, m2t88473, RGO 116024, 04727313AA, 04727313AB, 04727313Ac, 4727313AA, 4727313AB, 4727313AC

    • Normalised article numbler
      cs1454, cst35179, drs0094, drs0422, f032114283, f042s0h105, lrs02212, lrs02339, m002t88471, m002t88472, m002t88473, m2t88471, m2t88472, m2t88473, rgo116024, s5100, strh105, 8ea738259161, 3663, 33212n, 33339n, 101454, 105151, 220692, 220692a, 253383, 254011, 458846, 04727313aa, 04727313ab, 04727313ac, 4727313aa, 4727313ab, 4727313ac, 11040734, 11040767, 634033102, 634036102, 830562103, 0986024680
