Article no.: F032111059

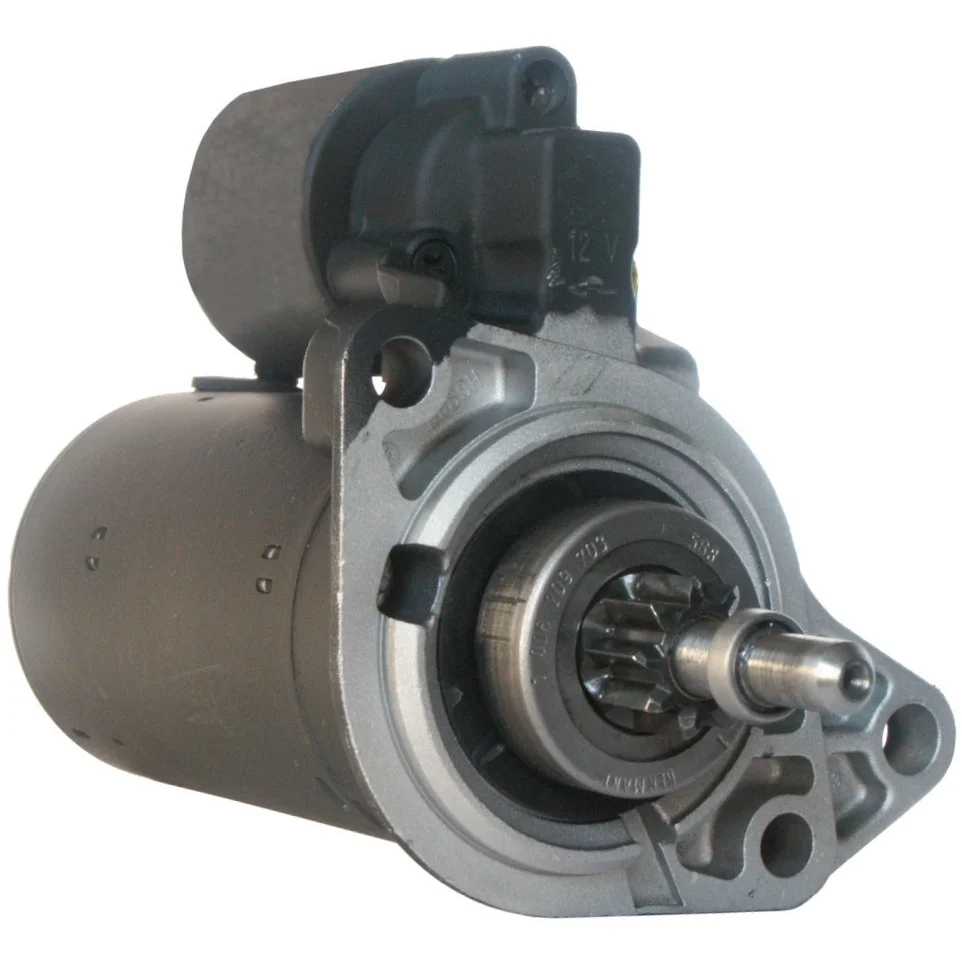

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.9, No./teeth: 9, Rotation: CCW

Description

Volkswagen Starter motor 12V-0.9kW, 9k 12V - 0.9kW, 9k Alternative: 91-620-1623 1.4kW For Yourex product order 91-620-1260

Voltage: 12
kW: 0.9
Mounting flange: 76.00
Drive distance: 33.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 12.00
Distance / back: 161.50
Distance / front: 69.00
Number / teeth: 9
B+: M8
Position / 15a: 45
Terminal 15a: 6.30
Position / 50: 15
Terminal 50: 6.30
Gear type: DD/GR
Distance 2: 111.00
Distance 3: 121.50
Distance mm: 31.50
Rotation: CCW
Total length mm: 230.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: Bushing D.E. (clutch house): HC-CARGO 140008.
Number / mounting holes: 3 (0)

Files

  • OEM
    AZD3520, b001110116, b001181007, cs294, d9e140, F032111059, GNU4538, RGO 111059, s114-553, s114-553a, 0001 106 001, 0001 106 002, 0001 107 007, 0001 107 008, 0001 211 257, 0001 211 258, 11.139.418, 020 911 024, 020 911023MX, 037 911 023, 055 911 023E, 055 911 023F, 055 911 023H, 055 911 023J, 055 911 023K, 055 911 023L, 055 911 023M, 055 911 023R, 055 911023FX, 055 911023HX, 055 911023KX, 055 911023MX, 379 110 23, 0986 012 590, 0986 012 600, 0986 018 200, 111059, 0001106001, 0001106002, 0001107007, 0001107008, 0001108094, 0001112003, 0001112004, 0001113011, 0001114005, 0001114006, 0001114012, 0001208416, 0001208417, 0001208418, 0001208419, 0001211257, 0001211258, 1516723R, 9141391, 020911024, 037911023, 055911023e, 055911023f, 055911023FX, 055911023h, 055911023j, 055911023k, 055911023l, 055911023m, 055911023r, 9000042057, 9000692050

  • Normalised article numbler
    azd3520, b001110116, b001181007, cs294, cst10121, cst10133, d9e140, drs2590, drs2600, f032111059, f042002014, f042s02014, frs166, gnu4538, lrs00558, lrs00560, ms105, ms316, nd141, qs1356, rgo111059, s0062pr, s0062sr, s0072, s114553, s114553a, s3197s, sr33x, str2016, str50007, str50104, vs231, vs254, 8ea012526761, 8ea726054001, 1236, 3580, 11260, 11399, 17025, 17134, 17134n, 17134r, 17222n, 17222r, 21367bo, 21372bo, 21373bo, 30560r, 111059, 201030, 201046, 201121, 220097, 220097a, 261035, 261134, 436019, 436022, 455548, 726109, 726826, 726830, 726909, 0001106001, 0001106002, 0001107007, 0001107008, 0001108094, 0001112003, 0001112004, 0001113011, 0001114005, 0001114006, 0001114012, 0001208416, 0001208417, 0001208418, 0001208419, 0001211257, 0001211258, 1516723r, 3412590, 4112600, 8012600, 8018200, 9141391, 11012590, 11012600, 11016230, 11018200, 11139418, 020911023mx, 020911024, 037911023, 37911023, 42012590, 055911023e, 055911023f, 055911023fx, 055911023h, 055911023hx, 055911023j, 055911023k, 055911023kx, 055911023l, 055911023m, 055911023mx, 055911023r, 311121092, 311124092, 943251663, 943251671, 0986012590, 0986012598, 0986012600, 0986016290, 0986018200, 0986018207, 9000042057, 9000692050
  • Description
    Volkswagen Starter motor 12V-0.9kW, 9k 12V - 0.9kW, 9k Alternative: 91-620-1623 1.4kW For Yourex product order 91-620-1260

    Voltage: 12
    kW: 0.9
    Mounting flange: 76.00
    Drive distance: 33.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 12.00
    Distance / back: 161.50
    Distance / front: 69.00
    Number / teeth: 9
    B+: M8
    Position / 15a: 45
    Terminal 15a: 6.30
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: DD/GR
    Distance 2: 111.00
    Distance 3: 121.50
    Distance mm: 31.50
    Rotation: CCW
    Total length mm: 230.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Bushing D.E. (clutch house): HC-CARGO 140008.
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZD3520, b001110116, b001181007, cs294, d9e140, F032111059, GNU4538, RGO 111059, s114-553, s114-553a, 0001 106 001, 0001 106 002, 0001 107 007, 0001 107 008, 0001 211 257, 0001 211 258, 11.139.418, 020 911 024, 020 911023MX, 037 911 023, 055 911 023E, 055 911 023F, 055 911 023H, 055 911 023J, 055 911 023K, 055 911 023L, 055 911 023M, 055 911 023R, 055 911023FX, 055 911023HX, 055 911023KX, 055 911023MX, 379 110 23, 0986 012 590, 0986 012 600, 0986 018 200, 111059, 0001106001, 0001106002, 0001107007, 0001107008, 0001108094, 0001112003, 0001112004, 0001113011, 0001114005, 0001114006, 0001114012, 0001208416, 0001208417, 0001208418, 0001208419, 0001211257, 0001211258, 1516723R, 9141391, 020911024, 037911023, 055911023e, 055911023f, 055911023FX, 055911023h, 055911023j, 055911023k, 055911023l, 055911023m, 055911023r, 9000042057, 9000692050

    • Normalised article numbler
      azd3520, b001110116, b001181007, cs294, cst10121, cst10133, d9e140, drs2590, drs2600, f032111059, f042002014, f042s02014, frs166, gnu4538, lrs00558, lrs00560, ms105, ms316, nd141, qs1356, rgo111059, s0062pr, s0062sr, s0072, s114553, s114553a, s3197s, sr33x, str2016, str50007, str50104, vs231, vs254, 8ea012526761, 8ea726054001, 1236, 3580, 11260, 11399, 17025, 17134, 17134n, 17134r, 17222n, 17222r, 21367bo, 21372bo, 21373bo, 30560r, 111059, 201030, 201046, 201121, 220097, 220097a, 261035, 261134, 436019, 436022, 455548, 726109, 726826, 726830, 726909, 0001106001, 0001106002, 0001107007, 0001107008, 0001108094, 0001112003, 0001112004, 0001113011, 0001114005, 0001114006, 0001114012, 0001208416, 0001208417, 0001208418, 0001208419, 0001211257, 0001211258, 1516723r, 3412590, 4112600, 8012600, 8018200, 9141391, 11012590, 11012600, 11016230, 11018200, 11139418, 020911023mx, 020911024, 037911023, 37911023, 42012590, 055911023e, 055911023f, 055911023fx, 055911023h, 055911023hx, 055911023j, 055911023k, 055911023kx, 055911023l, 055911023m, 055911023mx, 055911023r, 311121092, 311124092, 943251663, 943251671, 0986012590, 0986012598, 0986012600, 0986016290, 0986018200, 0986018207, 9000042057, 9000692050
