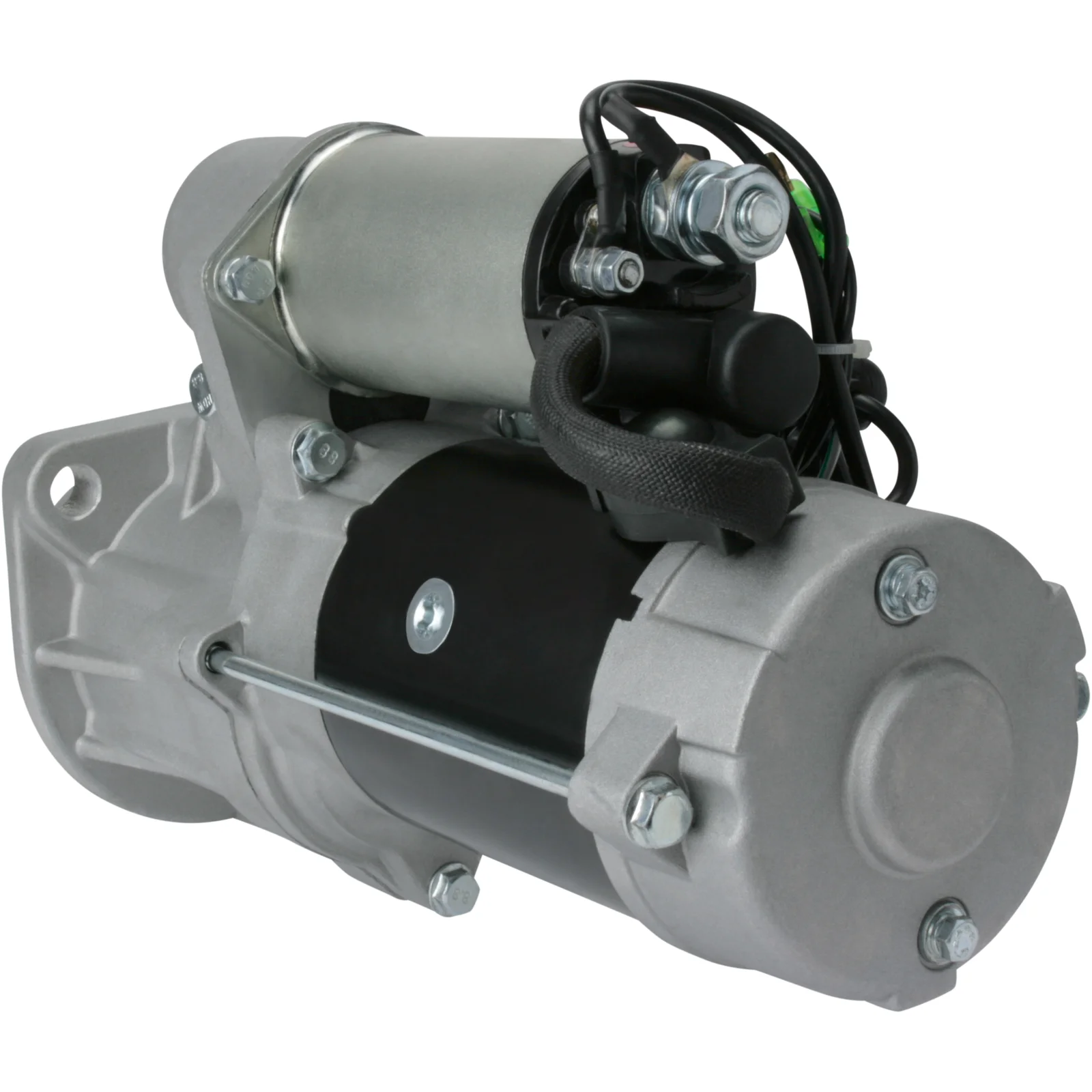

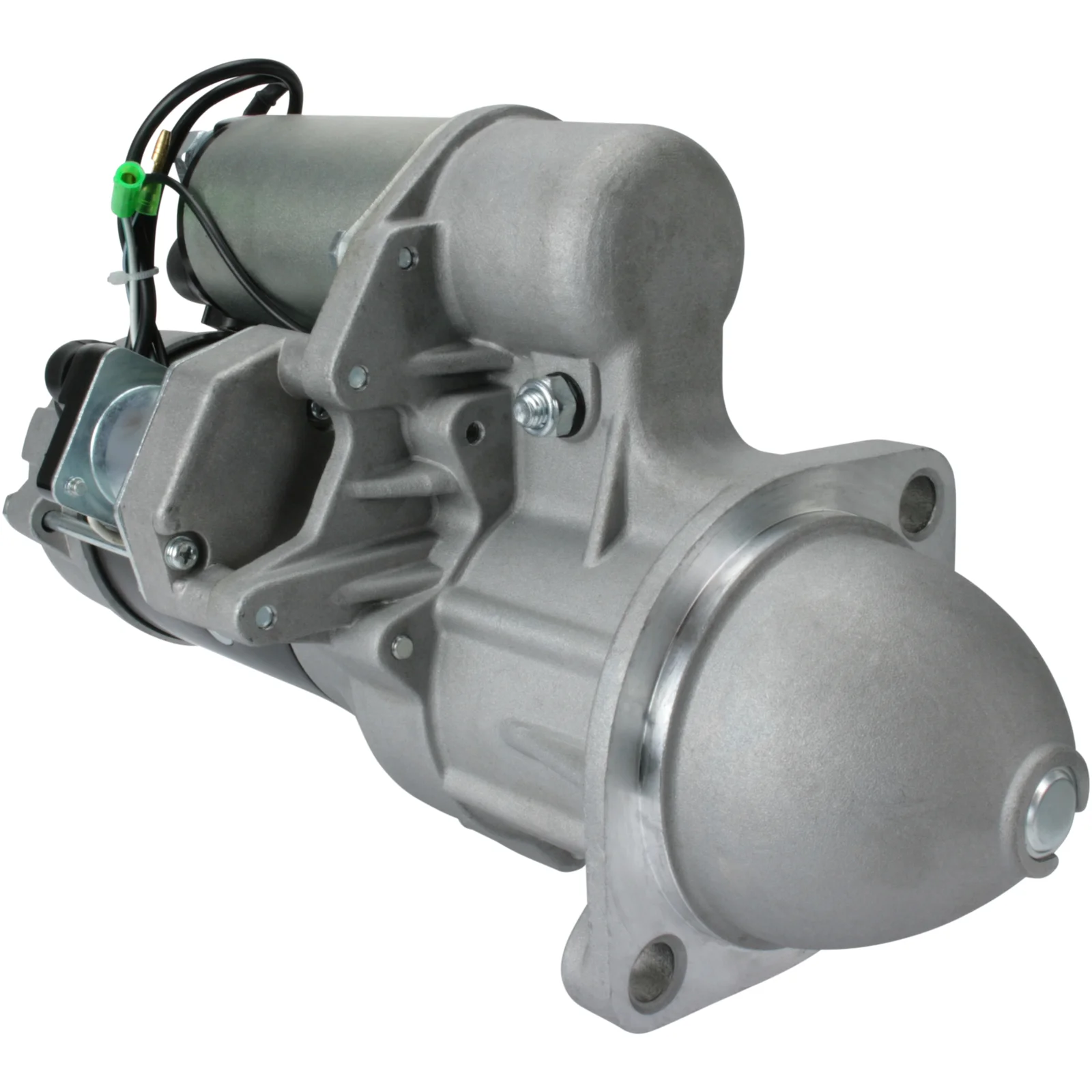

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111254

HC-Cargo Starter motor

Technical info:

Voltage: 24, Kilowatt: 4.5, Number/teeth: 9, Rotation: CW

Description

Voltage: 24
kW: 4.5
Mounting flange: 95.00
Drive distance: 19.00
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 266.50
Distance / front: 66.00
Number / teeth: 9
B+: M10
Position / 50: 6
Terminal 50: M5
Gear type: GR
Distance in millimeters: 119.00
Rotation: CW
Total length in millimeters: 332.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    0-23000-0100, 0-23000-0470, 0-23000-1260, 0-23000-1310, 0-23000-1700, 0-23000-2100, 0-23000-2101, 0-23000-2102, 0-23000-2103, 0-23000-2201, 0-23000-2540, 0-23000-2541, 0-23000-2542, F032111254, LRS01910, S25-176, VI8970298637, 714-35900, 714/24400, 714/29900, 8941717720, 8944545590, 8970298630, 8970298631, 8970298632, 8970298635, 8970298636, 8970298637, 8971298636

  • Normalised article numbler
    cst50606, f032111254, lrs01905, lrs01910, s25176, s8823e, s9170, s9190, str29002, str29007, vi8970298637, 8ea737264001, 4470, 18194, 18194n, 201010, 452214, 452332, 71424400, 71429900, 71435900, 91284026, 131504092, 131533092, 131537092, 0230000100, 0230000470, 0230001260, 0230001310, 0230001700, 0230002100, 0230002101, 0230002102, 0230002103, 0230002201, 0230002540, 0230002541, 0230002542, 643048094, 643055094, 8941717720, 8944545590, 8970298630, 8970298631, 8970298632, 8970298635, 8970298636, 8970298637, 8971298636
  • Description
    Voltage: 24
    kW: 4.5
    Mounting flange: 95.00
    Drive distance: 19.00
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 266.50
    Distance / front: 66.00
    Number / teeth: 9
    B+: M10
    Position / 50: 6
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 119.00
    Rotation: CW
    Total length in millimeters: 332.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0-23000-0100, 0-23000-0470, 0-23000-1260, 0-23000-1310, 0-23000-1700, 0-23000-2100, 0-23000-2101, 0-23000-2102, 0-23000-2103, 0-23000-2201, 0-23000-2540, 0-23000-2541, 0-23000-2542, F032111254, LRS01910, S25-176, VI8970298637, 714-35900, 714/24400, 714/29900, 8941717720, 8944545590, 8970298630, 8970298631, 8970298632, 8970298635, 8970298636, 8970298637, 8971298636

    • Normalised article numbler
      cst50606, f032111254, lrs01905, lrs01910, s25176, s8823e, s9170, s9190, str29002, str29007, vi8970298637, 8ea737264001, 4470, 18194, 18194n, 201010, 452214, 452332, 71424400, 71429900, 71435900, 91284026, 131504092, 131533092, 131537092, 0230000100, 0230000470, 0230001260, 0230001310, 0230001700, 0230002100, 0230002101, 0230002102, 0230002103, 0230002201, 0230002540, 0230002541, 0230002542, 643048094, 643055094, 8941717720, 8944545590, 8970298630, 8970298631, 8970298632, 8970298635, 8970298636, 8970298637, 8971298636
