Article no.: F032111558

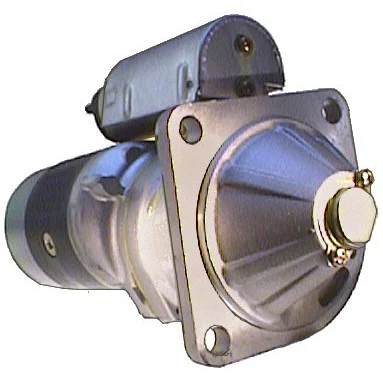

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 3.5, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kilowatt: 3.5
Mount. flange: 105.00
Drive distance: 9.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Distance / back: 280.00
Distance / front: 60.50
Number / teeth: 11
B+: M8
Position / 50: 55
Terminal 50: M4
Gear type: GR
Distance 2: 99.00
Distance 3: 93.50
Distance in mm: 140.00
Rotation: CW
Total length in mm: 333.50
Clutch type: Wet
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number / mount. holes: 3 (0)

Files

  • OEM
    F032111558, js540, s25-156, 23300-c8601

  • Normalised article numbler
    ads942, cst20600, drs3053, drs3053x, drs3237, f032111558, f042004059, f042s04059, j5211033, js540, lrt00157, qs1486, s25156, str7149, 8ea726502001, 4210, 9581, 11637, 20540, 23300c8601, 30367r, 104354, 451005, 455571, 2852133, 8052133, 11040369, 627013114, 0986014251, 943254066010
  • Description
    Voltage: 24
    kilowatt: 3.5
    Mount. flange: 105.00
    Drive distance: 9.00
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Distance / back: 280.00
    Distance / front: 60.50
    Number / teeth: 11
    B+: M8
    Position / 50: 55
    Terminal 50: M4
    Gear type: GR
    Distance 2: 99.00
    Distance 3: 93.50
    Distance in mm: 140.00
    Rotation: CW
    Total length in mm: 333.50
    Clutch type: Wet
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111558, js540, s25-156, 23300-c8601

    • Normalised article numbler
      ads942, cst20600, drs3053, drs3053x, drs3237, f032111558, f042004059, f042s04059, j5211033, js540, lrt00157, qs1486, s25156, str7149, 8ea726502001, 4210, 9581, 11637, 20540, 23300c8601, 30367r, 104354, 451005, 455571, 2852133, 8052133, 11040369, 627013114, 0986014251, 943254066010
