Article no.: F032111760

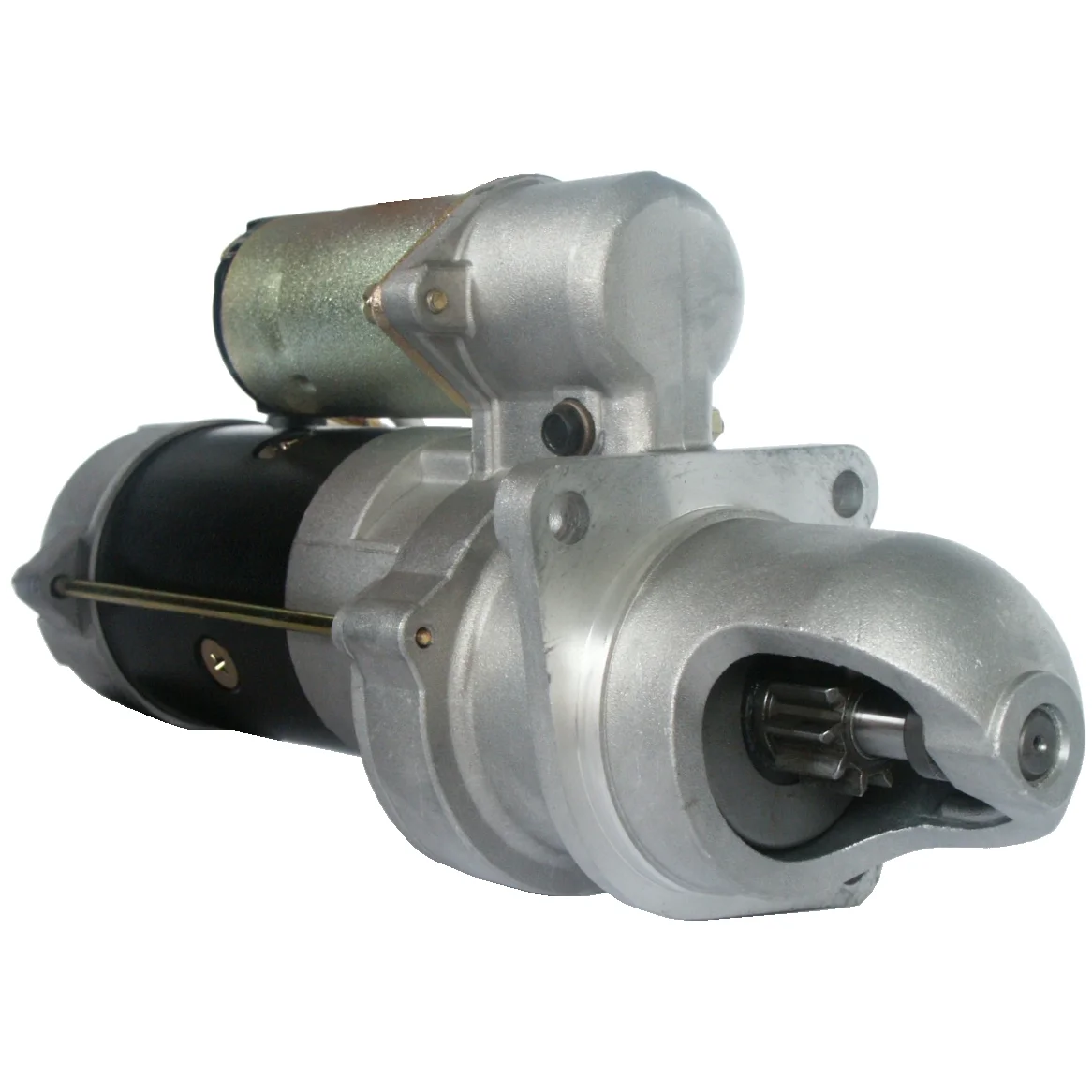

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.5, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 4.5
Mount. flange: 89.00
Drive distance: 45.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Distance / back: 250.50
Distance / front: 88.50
Number / teeth: 10
B+: M10
Position / 50: 47
Terminal 50: M5
Gear type: GR
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 89.00
Rotation: CW
Total length mm: 339.00
Clutch type: Dry
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Remarks: Replacing: 7MT
Number / mounting holes: 3 (0)

Files

  • OEM
    0-23000-2030, 0-23000-2031, 0-23000-2040, 0-23000-2270, 0-23000-2470, C4929600, F032111760, us857, 323-911, 367520rx, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677RX, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656

  • Normalised article numbler
    bso7195r, bso7272, c4929600, cst50653, cst60600, drs3518, drs3529, drz5168, f032111760, f042003112, f042003113, f042s03112, f042s03113, les0202, lrs02448, ms242, s1007, s9244, s9244letrika, sn0087r, str20001, str7150, str7158, str7162, ts1602, us857, 8ea732680001, 6574, 6582, 6582n, 6582r, 6592n, 6592r, 6737, 23498a, 60857, 103971, 220601, 220601a, 323911, 367520rx, 508416, 508421, 508434, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677rx, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 8213287, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656, 11023450, 20128201, 41012111, 90014361, 0230002030, 0230002031, 0230002040, 0230002270, 0230002470, 641527103, 641528103, 672021104, 0986023450
  • Description
    Voltage: 24
    kW: 4.5
    Mount. flange: 89.00
    Drive distance: 45.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Distance / back: 250.50
    Distance / front: 88.50
    Number / teeth: 10
    B+: M10
    Position / 50: 47
    Terminal 50: M5
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 89.00
    Rotation: CW
    Total length mm: 339.00
    Clutch type: Dry
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Replacing: 7MT
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0-23000-2030, 0-23000-2031, 0-23000-2040, 0-23000-2270, 0-23000-2470, C4929600, F032111760, us857, 323-911, 367520rx, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677RX, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656

    • Normalised article numbler
      bso7195r, bso7272, c4929600, cst50653, cst60600, drs3518, drs3529, drz5168, f032111760, f042003112, f042003113, f042s03112, f042s03113, les0202, lrs02448, ms242, s1007, s9244, s9244letrika, sn0087r, str20001, str7150, str7158, str7162, ts1602, us857, 8ea732680001, 6574, 6582, 6582n, 6582r, 6592n, 6592r, 6737, 23498a, 60857, 103971, 220601, 220601a, 323911, 367520rx, 508416, 508421, 508434, 860318, 1113277, 1113291, 1113594, 1998488, 3604677, 3604677rx, 3675204, 3909914, 3918377, 3918378, 3926932, 8200064, 8213287, 10455500, 10461283, 10461286, 10461465, 10461468, 10461469, 10461486, 10479616, 10479622, 10479623, 10479655, 10479656, 11023450, 20128201, 41012111, 90014361, 0230002030, 0230002031, 0230002040, 0230002270, 0230002470, 641527103, 641528103, 672021104, 0986023450
