Article no.: F032111913

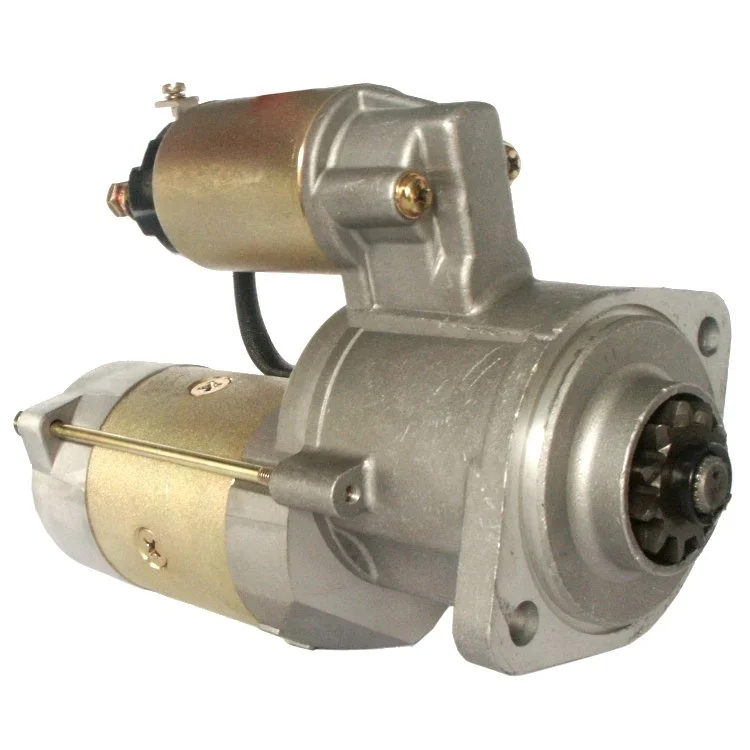

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 3.2, No./teeth: 9, Rotation: CW

Description

Voltage: 24
kW: 3.2
Mounting flange: 82.50
Drive distance: 22.50
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 218.50
Distance / front: 31.50
Number / teeth: 9
B+: M8
Position / B+: 15
Position / 50: 60
Terminal 50: M5
Gear type: GR
Distance in millimeters: 104.50
Rotation: CW
Total length in millimeters: 250.50
Clutch type: Dry
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: Yes
Number / mounting holes: 2 (0)

Files

  • OEM
    F032111913, js777, M002T65271, M002T65272, M002T65275, M003T54071, M003T54072, M005T27671, m2t65271, m2t65272, m2t65275, m3t54071, m3t54072, m5t27671, 34466-03101, 34466-15101, 34466-15102, 34466-20102, 3785426

  • Normalised article numbler
    acs913, cst35600, drs3284, f032111913, f042001173, f042s01173, js777, lrs01842, m002t65271, m002t65272, m002t65275, m003t54071, m003t54072, m005t27671, m2t65271, m2t65272, m2t65275, m3t54071, m3t54072, m5t27671, pbns3017, s5003, str6144, 8ea732662001, 4297, 8404, 18245, 18245n, 18245r, 20777, 22103mi, 33755, 103624, 107087, 220195, 220195a, 451095, 2752515, 3785426, 8052515, 11040337, 20513017, 626008114, 3446603101, 3446615101, 3446615102, 3446620102
  • Description
    Voltage: 24
    kW: 3.2
    Mounting flange: 82.50
    Drive distance: 22.50
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 218.50
    Distance / front: 31.50
    Number / teeth: 9
    B+: M8
    Position / B+: 15
    Position / 50: 60
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 104.50
    Rotation: CW
    Total length in millimeters: 250.50
    Clutch type: Dry
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: Yes
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111913, js777, M002T65271, M002T65272, M002T65275, M003T54071, M003T54072, M005T27671, m2t65271, m2t65272, m2t65275, m3t54071, m3t54072, m5t27671, 34466-03101, 34466-15101, 34466-15102, 34466-20102, 3785426

    • Normalised article numbler
      acs913, cst35600, drs3284, f032111913, f042001173, f042s01173, js777, lrs01842, m002t65271, m002t65272, m002t65275, m003t54071, m003t54072, m005t27671, m2t65271, m2t65272, m2t65275, m3t54071, m3t54072, m5t27671, pbns3017, s5003, str6144, 8ea732662001, 4297, 8404, 18245, 18245n, 18245r, 20777, 22103mi, 33755, 103624, 107087, 220195, 220195a, 451095, 2752515, 3785426, 8052515, 11040337, 20513017, 626008114, 3446603101, 3446615101, 3446615102, 3446620102
