Article no.: F032112037

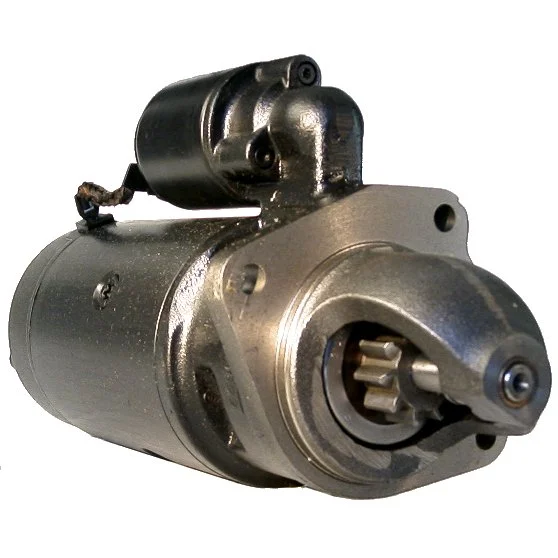

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Description

HC-Cargo Starter motor

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 29.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / back: 267.00
Distance / front: 77.00
Number / teeth: 10
B+: M10
Position / 50: 45
Terminal 50: M5
Gear type: DD
Distance 2: 127.00
Distance 3: 89.50
Distance mm: 89.50
Rotation: CW
Total length mm: 341.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    F032112037, 109-2361, 714/34000, 2873d304, 0001368085, 11702594, 19024260, 154011053, 9011702594

  • Normalised article numbler
    bsx1140025, cst10671, drs0039, f032112037, lrs01917, s0170, str22032, 2873d304, 18251n, 22285bo, 220273, 220273a, 254191, 452353, 1092361, 0001368085, 11090069, 11702594, 19024260, 71434000, 154011053, 0986019753, 9011702594
  • Description
    HC-Cargo Starter motor

    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 29.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance / back: 267.00
    Distance / front: 77.00
    Number / teeth: 10
    B+: M10
    Position / 50: 45
    Terminal 50: M5
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 89.50
    Distance mm: 89.50
    Rotation: CW
    Total length mm: 341.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112037, 109-2361, 714/34000, 2873d304, 0001368085, 11702594, 19024260, 154011053, 9011702594

    • Normalised article numbler
      bsx1140025, cst10671, drs0039, f032112037, lrs01917, s0170, str22032, 2873d304, 18251n, 22285bo, 220273, 220273a, 254191, 452353, 1092361, 0001368085, 11090069, 11702594, 19024260, 71434000, 154011053, 0986019753, 9011702594
