Article no.: F032112120

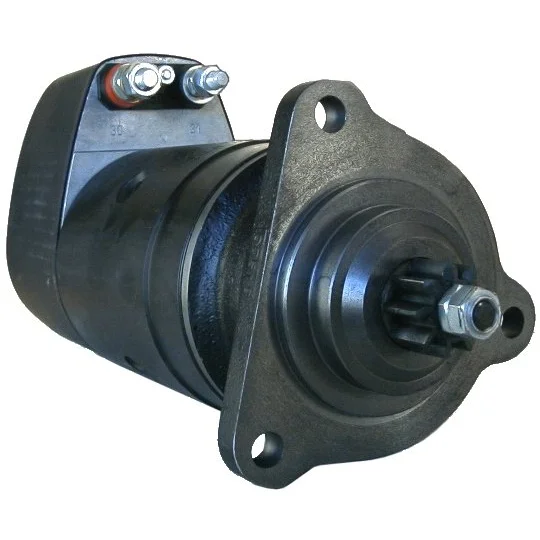

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 6.6, No./teeth: 9, Rotation: CW

Description

Voltage: 24
kW: 6.6
Insulated return: Yes
Mount. flange: 92.00
Drive distance: 47.50
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Distance / back: 338.00
Distance / front: 63.00
Number / teeth: 9
B+: M12
Position / 50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 126.00
Distance 3: 126.00
Distance mm: 126.00
Rotation: CW
B-: M10
Total length mm: 405.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mount holes: 3 (0)

Files

  • OEM
    A0021512801, A0031516201, F032112120, 51.26201-7091, 51.26201-7124, 51.26201-7139, 637, 860698, 0001330066, 0001411022, 0001417037, 19024072, 0021512801, 0031516201

  • Normalised article numbler
    a0021512801, a0031516201, cst10779, f032112120, f042002124, f042200051, f042s02124, is9082, ms579, s0003, s0817s, str23903, 637, 21981nd2, 33647, 254328, 451403, 860698, 0001330066, 0001411022, 0001417037, 8812960, 11012960, 19024072, 0021512801, 0031516201, 551568093, 600053094, 943252236, 51262017091, 51262017124, 51262017139, 943252236010
  • Description
    Voltage: 24
    kW: 6.6
    Insulated return: Yes
    Mount. flange: 92.00
    Drive distance: 47.50
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Distance / back: 338.00
    Distance / front: 63.00
    Number / teeth: 9
    B+: M12
    Position / 50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 126.00
    Distance 3: 126.00
    Distance mm: 126.00
    Rotation: CW
    B-: M10
    Total length mm: 405.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mount holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A0021512801, A0031516201, F032112120, 51.26201-7091, 51.26201-7124, 51.26201-7139, 637, 860698, 0001330066, 0001411022, 0001417037, 19024072, 0021512801, 0031516201

    • Normalised article numbler
      a0021512801, a0031516201, cst10779, f032112120, f042002124, f042200051, f042s02124, is9082, ms579, s0003, s0817s, str23903, 637, 21981nd2, 33647, 254328, 451403, 860698, 0001330066, 0001411022, 0001417037, 8812960, 11012960, 19024072, 0021512801, 0031516201, 551568093, 600053094, 943252236, 51262017091, 51262017124, 51262017139, 943252236010
