HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112132

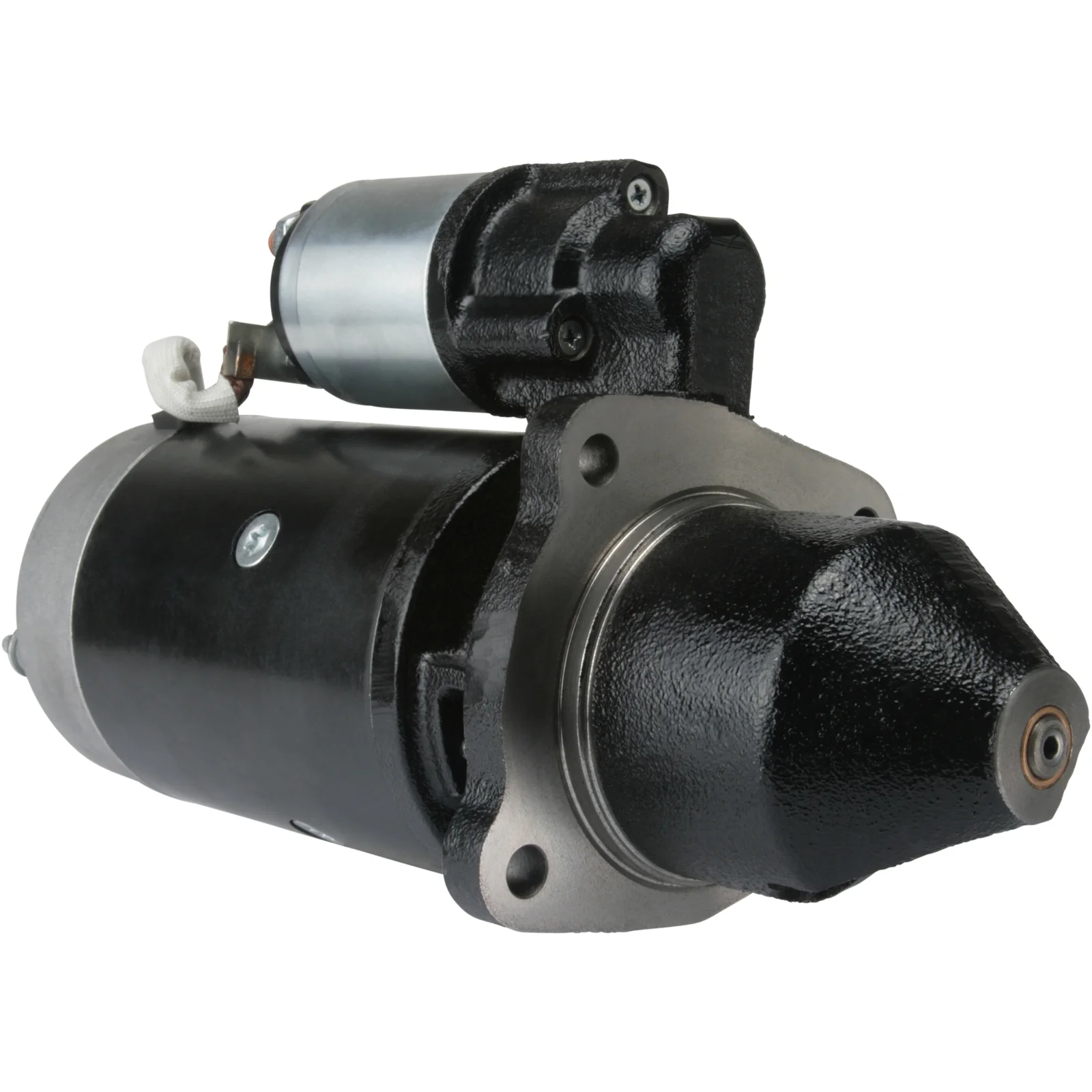

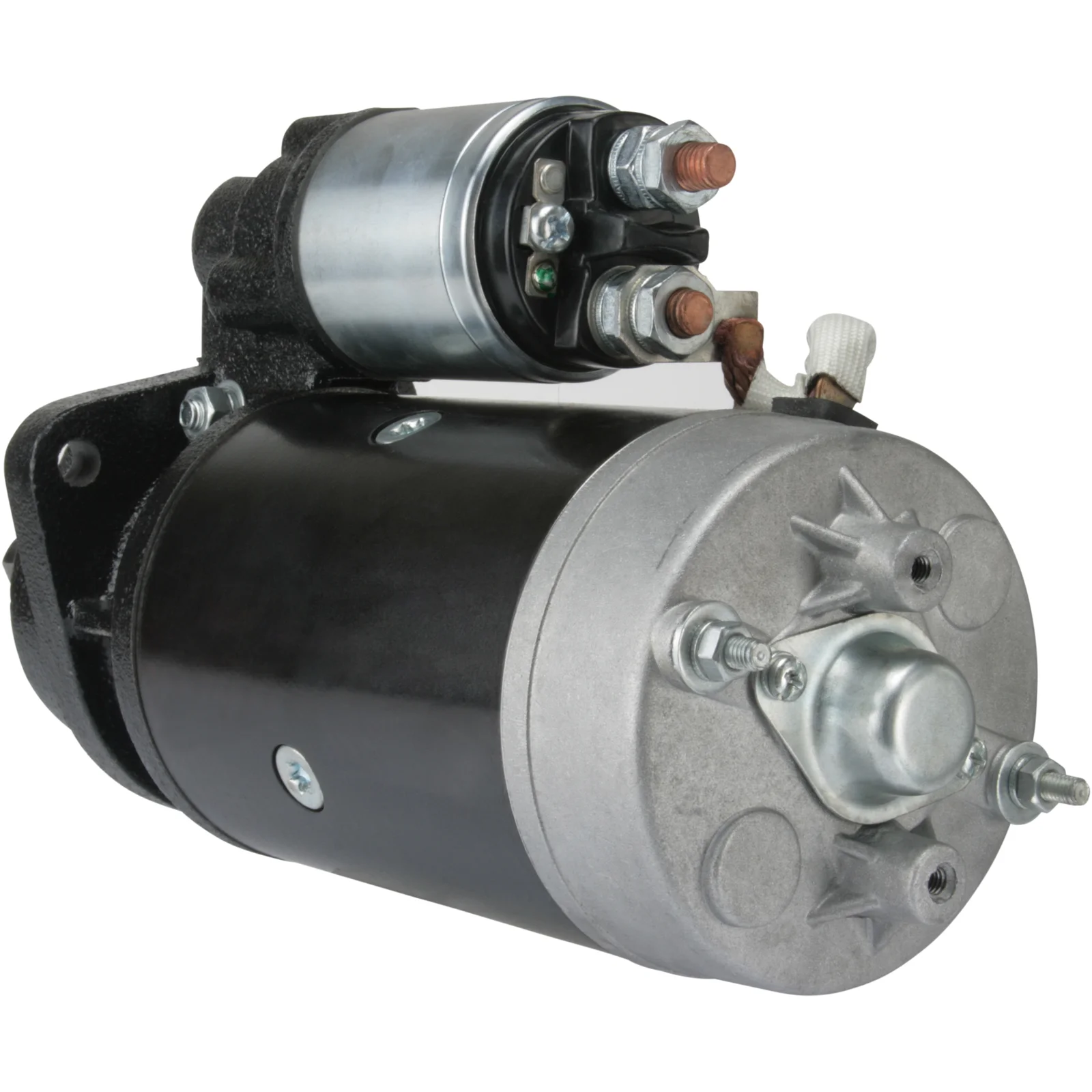

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 9, Rotation: CW

Description

Start 24V-4.0kW fits Volvo 24V - 4.0kW, 9k, Oil-sealed A - 89mm, B - 48mm For Yourrex product order 91-600-1137 is Oil-sealed!

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 47.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 237.00
Distance / front: 96.00
Number / teeth: 9
B+: M10
Position / 50: 45
Terminal 50: M4
Gear type: DD
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 339.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Info: BOSCH OE 0001360036 IS OIL-SEALED. HC-CARGO 112132 IS NOT!
Number / mounting holes: 3 (0)

Files

  • OEM
    AZJ 3277, azj3277, cs726, F032112132, LRS 796, 0001 360 023, 0001 360 036, 0001 368 030, 11.130.766, 91-600-1137, 0766, 0986 011 370, 11130 766, 243007, 0001360023, 0001360036, 0001368030, 3097086M91, 4785541, 4880691, 9004880691

  • Normalised article numbler
    azj3277, cs726, cst10614, drs1280, drs1370, drs1370n, f032112132, is0766, lrs00796, lrs796, ms319, s0804s, s9217letrika, str50164, 8ea015642421, 8ea731770001, 0766, 4119, 8668, 10726, 19782n, 33898, 103444, 243007, 450354, 0001360023, 0001360036, 0001368030, 3097086m91, 4785541, 4880691, 8811370, 11011370, 11130766, 638009094, 916001137, 0986011370, 0986011373, 9004880691
  • Description
    Start 24V-4.0kW fits Volvo 24V - 4.0kW, 9k, Oil-sealed A - 89mm, B - 48mm For Yourrex product order 91-600-1137 is Oil-sealed!

    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 47.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 237.00
    Distance / front: 96.00
    Number / teeth: 9
    B+: M10
    Position / 50: 45
    Terminal 50: M4
    Gear type: DD
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 339.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Info: BOSCH OE 0001360036 IS OIL-SEALED. HC-CARGO 112132 IS NOT!
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZJ 3277, azj3277, cs726, F032112132, LRS 796, 0001 360 023, 0001 360 036, 0001 368 030, 11.130.766, 91-600-1137, 0766, 0986 011 370, 11130 766, 243007, 0001360023, 0001360036, 0001368030, 3097086M91, 4785541, 4880691, 9004880691

    • Normalised article numbler
      azj3277, cs726, cst10614, drs1280, drs1370, drs1370n, f032112132, is0766, lrs00796, lrs796, ms319, s0804s, s9217letrika, str50164, 8ea015642421, 8ea731770001, 0766, 4119, 8668, 10726, 19782n, 33898, 103444, 243007, 450354, 0001360023, 0001360036, 0001368030, 3097086m91, 4785541, 4880691, 8811370, 11011370, 11130766, 638009094, 916001137, 0986011370, 0986011373, 9004880691
