HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112174

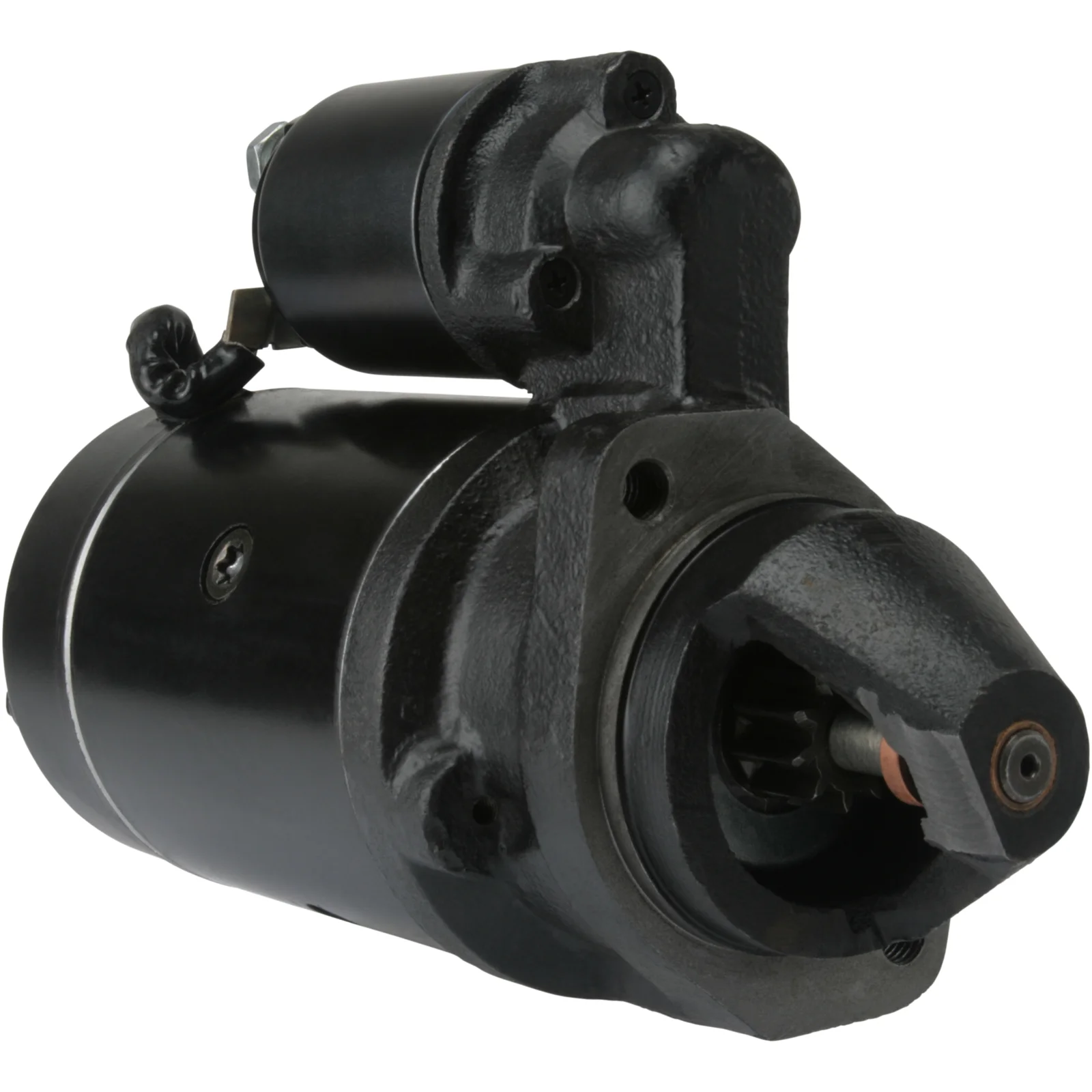

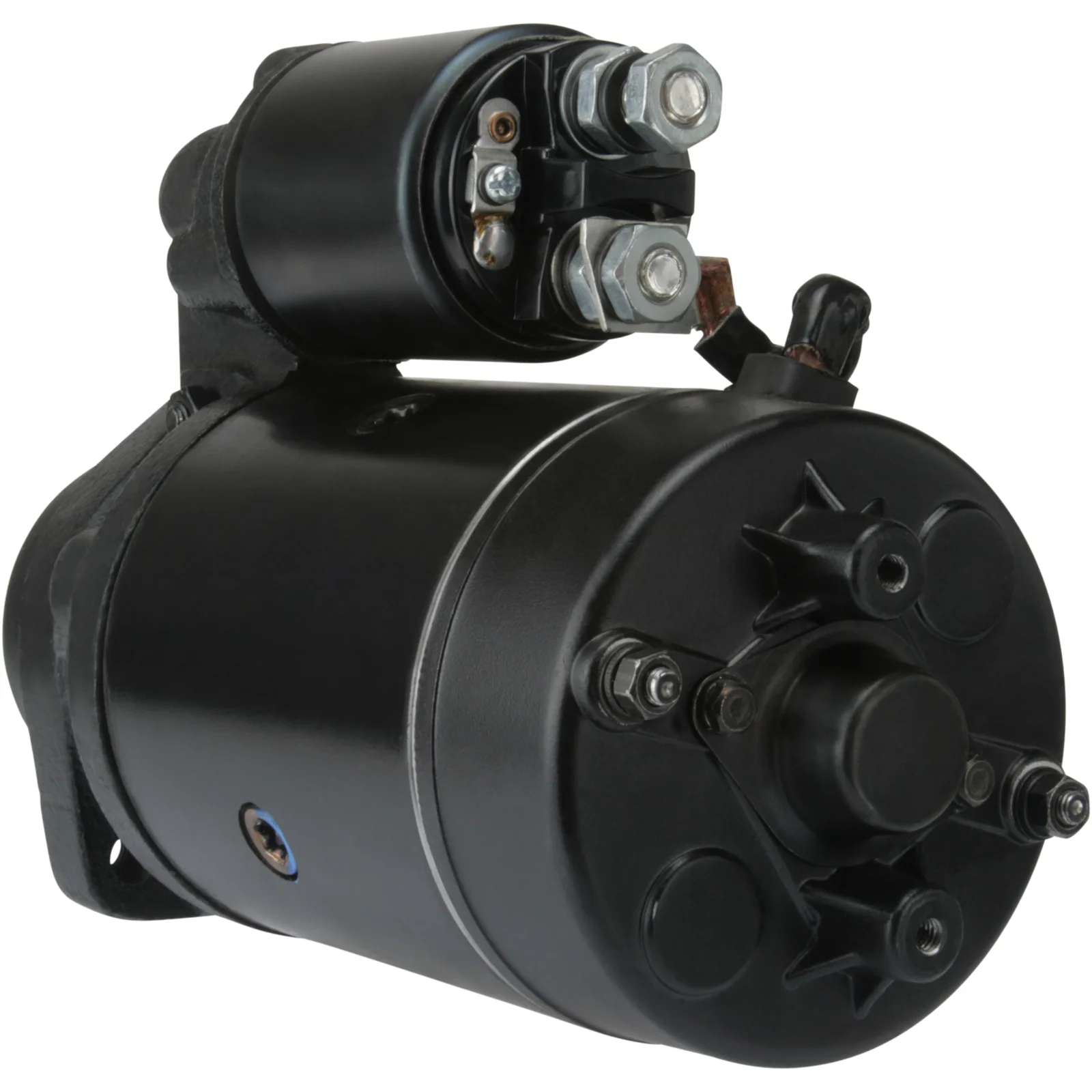

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 3.2, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 3.2
Mounting flange: 82.50
Drive distance: 21.00
Dist./back: 217.00
Dist./front: 62.50
Number / teeth: 10
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. mm: 105.00
Rotation: CW
Total length mm: 289.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (2)

Files

  • OEM
    A0031512201, F032112174, 522456, 0001363001, 0001363106, 0001363119, 0001363120, 0001363123, 0031512201

  • Normalised article numbler
    a0031512201, cst10721, drs3030, f032112174, lrs01856, s0867s, str50209, 451286, 522456, 0001363001, 0001363106, 0001363119, 0001363120, 0001363123, 0031512201, 291001102, 291002102
  • Description
    Voltage: 24
    kW: 3.2
    Mounting flange: 82.50
    Drive distance: 21.00
    Dist./back: 217.00
    Dist./front: 62.50
    Number / teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 289.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      A0031512201, F032112174, 522456, 0001363001, 0001363106, 0001363119, 0001363120, 0001363123, 0031512201

    • Normalised article numbler
      a0031512201, cst10721, drs3030, f032112174, lrs01856, s0867s, str50209, 451286, 522456, 0001363001, 0001363106, 0001363119, 0001363120, 0001363123, 0031512201, 291001102, 291002102
