Article no.: F032112454

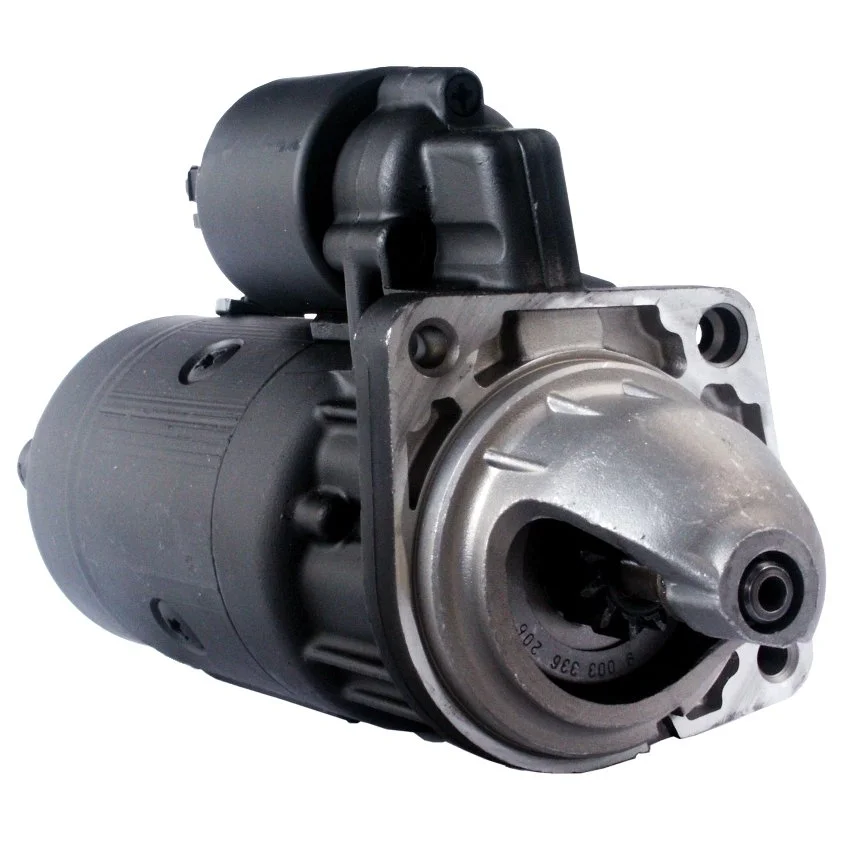

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kilowatts: 2.2
Mounting flange: 82.50
Drive distance: 21.00
Mounting hole 3 mm: 8.20
Mounting hole 2 mm: 8.20
Mounting hole 1 mm: 8.20
Distance / back: 211.00
Distance / front: 62.50
Number / teeth: 11
B+ : M8
Position / B+: 60
Position / 50: 43
Terminal 50: M4
Gear type: GR
Distance 2: 113.00
Distance 3: 71.50
Distance mm: 74.00
Rotation: CW
Total length mm: 274.00
Clutch type: Dry
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    cs611, F032112454, RGO 112454, 0001218023, 0001218125, 0001218158, 0001218175, 0001218725, 04796044, 035532011A, 035532011F, 35532011A, 35532011F, 035532037F, 35532037F, 035532041F, 35532041F, 60412969, 60512969, 605129690, 195270503000

  • Normalised article numbler
    cs611, cst10225, drs5610, drs7950, drs7950x, f032112454, frs679, lrs00972, lrt00195, qs1828, rgo112454, s0166, str50083, 8ea012527061, 8ea730181001, 1425, 3575, 10611, 11501, 31195n, 220080, 220080a, 252032, 458523, 458556, 1015610, 0001218023, 0001218125, 0001218158, 0001218175, 0001218725, 04796044, 11015610, 11017950, 035532011a, 035532011f, 35532011a, 35532011f, 035532037f, 35532037f, 035532041f, 35532041f, 60412969, 60512969, 100506113, 310008112, 605129690, 0986015610, 0986017950, 195270503000, 943241008010
  • Description
    Voltage: 12
    kilowatts: 2.2
    Mounting flange: 82.50
    Drive distance: 21.00
    Mounting hole 3 mm: 8.20
    Mounting hole 2 mm: 8.20
    Mounting hole 1 mm: 8.20
    Distance / back: 211.00
    Distance / front: 62.50
    Number / teeth: 11
    B+ : M8
    Position / B+: 60
    Position / 50: 43
    Terminal 50: M4
    Gear type: GR
    Distance 2: 113.00
    Distance 3: 71.50
    Distance mm: 74.00
    Rotation: CW
    Total length mm: 274.00
    Clutch type: Dry
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs611, F032112454, RGO 112454, 0001218023, 0001218125, 0001218158, 0001218175, 0001218725, 04796044, 035532011A, 035532011F, 35532011A, 35532011F, 035532037F, 35532037F, 035532041F, 35532041F, 60412969, 60512969, 605129690, 195270503000

    • Normalised article numbler
      cs611, cst10225, drs5610, drs7950, drs7950x, f032112454, frs679, lrs00972, lrt00195, qs1828, rgo112454, s0166, str50083, 8ea012527061, 8ea730181001, 1425, 3575, 10611, 11501, 31195n, 220080, 220080a, 252032, 458523, 458556, 1015610, 0001218023, 0001218125, 0001218158, 0001218175, 0001218725, 04796044, 11015610, 11017950, 035532011a, 035532011f, 35532011a, 35532011f, 035532037f, 35532037f, 035532041f, 35532041f, 60412969, 60512969, 100506113, 310008112, 605129690, 0986015610, 0986017950, 195270503000, 943241008010
