Article no.: F032113925

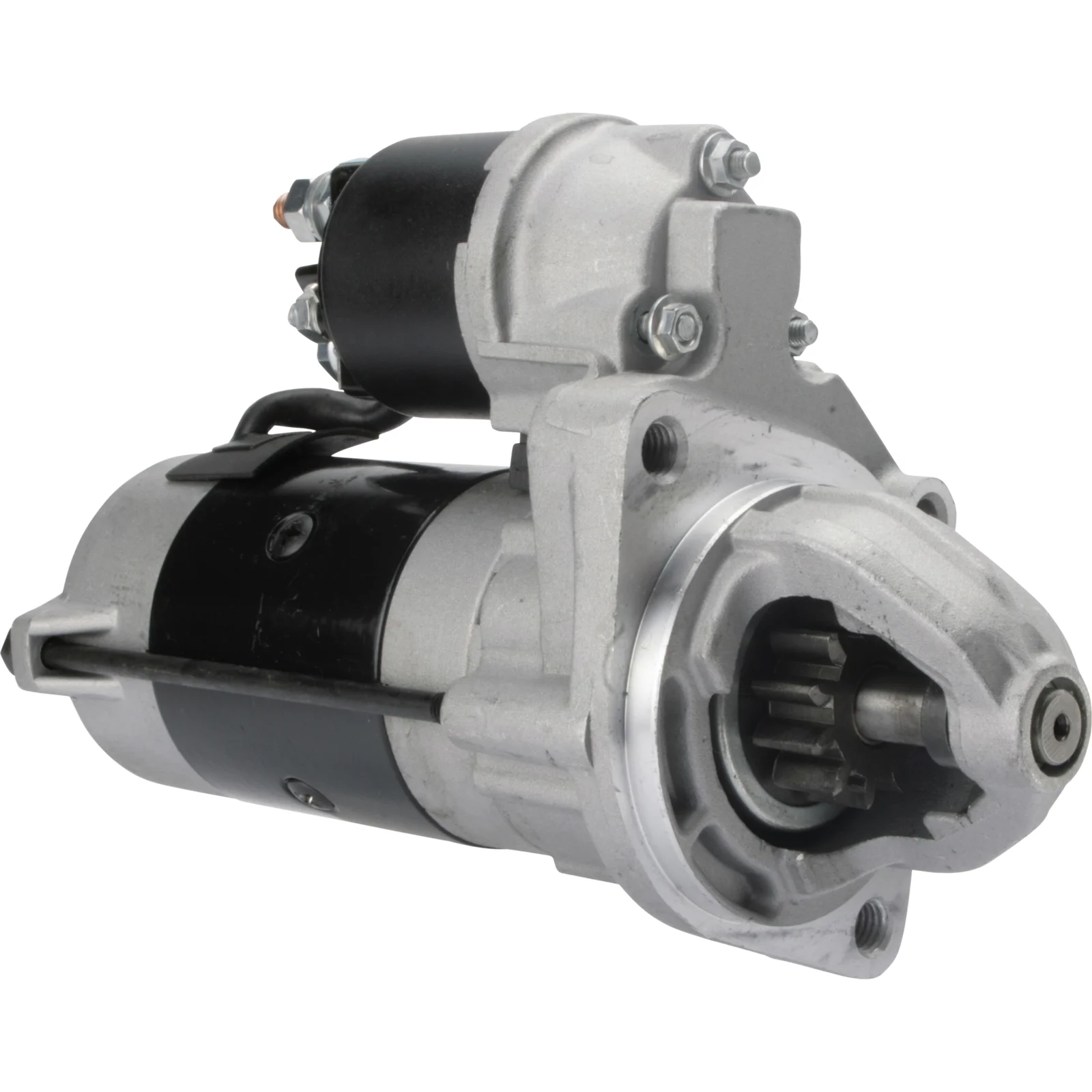

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.8
Mounting flange: 76.00
Drive distance: 21.00
Mounting hole 3 mm: M10
Mounting hole 1 mm: 7.80
Distance/back: 167.50
Distance/front: 57.00
Number of teeth: 11
B+: M8
Position/50: 18
Terminal 50: M6
Gear type: GR
Distance 2: 105.00
Distance 3: 74.00
Distance mm: 74.00
Rotation: CW
Total length mm: 227.00
Terminal 30h: M5
Position/30h: 45
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 3 (2)

Files

  • OEM
    cs1265, E5579N, F032113925, RGO 113925, 2247063, 2249295, 4496934, 63113001, 63193001, 12412247063, 12412249295, 12414496934

  • Normalised article numbler
    cs1265, cst30154, dendsn504, drs3929, drs3929x, dsn504, e5579n, f032113925, f042s0h072, lrs01791, msn808, rgo113925, s4031, strh072, 8ea738027001, 3184, 32791, 32791n, 32791r, 101265, 105158, 220508, 220508a, 263000, 458888, 2247063, 2249295, 4496934, 8080191, 11022580, 42063193, 63113001, 63193001, 315120112, 0986022581, 0986022583, 12412247063, 12412249295, 12414496934, 063193001010, 944280801910
  • Description
    Voltage: 12
    kW: 1.8
    Mounting flange: 76.00
    Drive distance: 21.00
    Mounting hole 3 mm: M10
    Mounting hole 1 mm: 7.80
    Distance/back: 167.50
    Distance/front: 57.00
    Number of teeth: 11
    B+: M8
    Position/50: 18
    Terminal 50: M6
    Gear type: GR
    Distance 2: 105.00
    Distance 3: 74.00
    Distance mm: 74.00
    Rotation: CW
    Total length mm: 227.00
    Terminal 30h: M5
    Position/30h: 45
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 3 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs1265, E5579N, F032113925, RGO 113925, 2247063, 2249295, 4496934, 63113001, 63193001, 12412247063, 12412249295, 12414496934

    • Normalised article numbler
      cs1265, cst30154, dendsn504, drs3929, drs3929x, dsn504, e5579n, f032113925, f042s0h072, lrs01791, msn808, rgo113925, s4031, strh072, 8ea738027001, 3184, 32791, 32791n, 32791r, 101265, 105158, 220508, 220508a, 263000, 458888, 2247063, 2249295, 4496934, 8080191, 11022580, 42063193, 63113001, 63193001, 315120112, 0986022581, 0986022583, 12412247063, 12412249295, 12414496934, 063193001010, 944280801910
