Article no.: F032111136

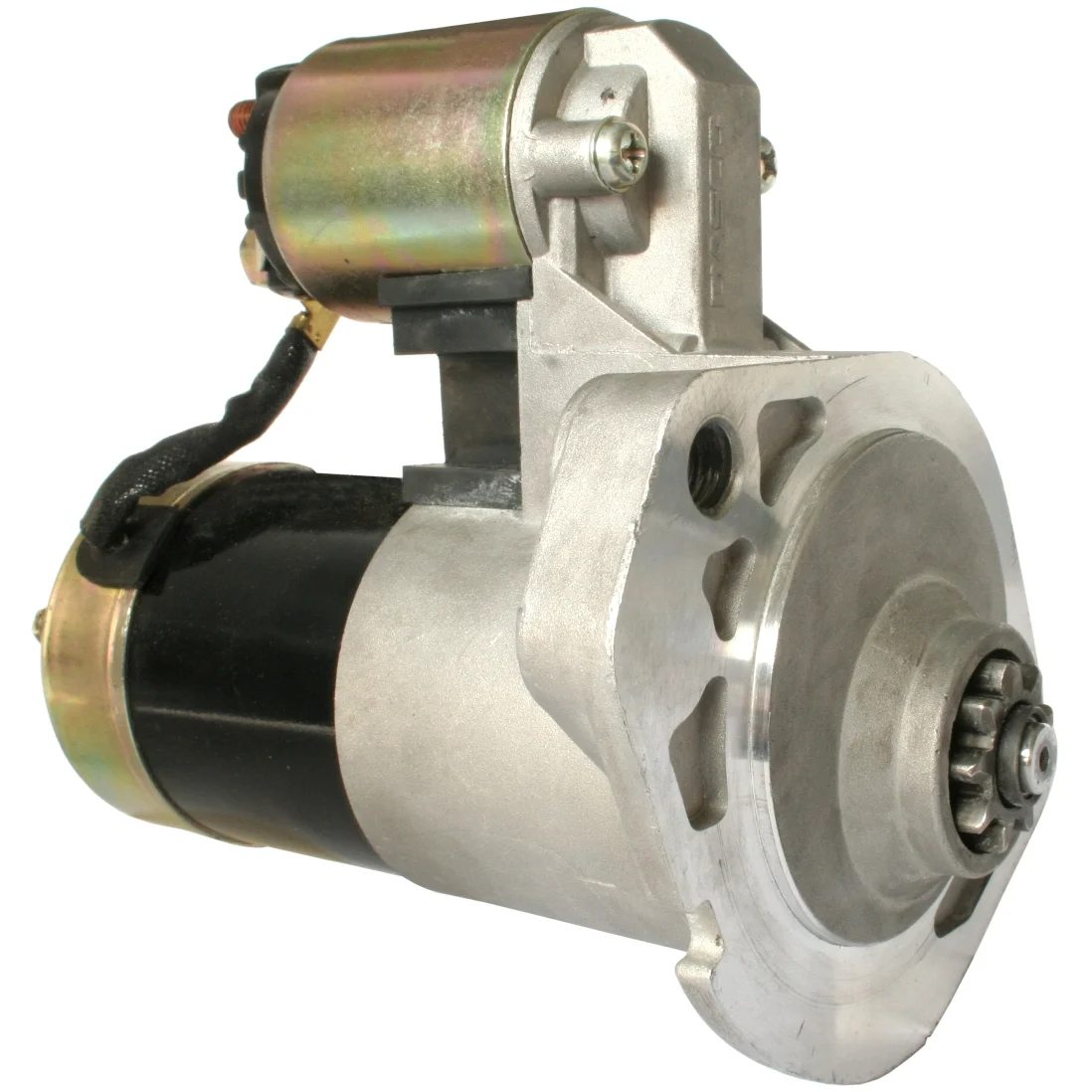

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Starter motor 12V - 1.4kW, 9k For Yourex product order 91-430-1615

Voltage: 12
kW: 1.4
Mounting flange: 78.00
Drive distance: 19.00
Mounting hole 1 mm: 11.80
Distance/-back: 176.00
Distance/front: 23.50
Number of teeth: 9
B+: M8
Position/50: 45
Terminal 50: M4
Gear type: GR
Distance in millimeters: 117.50
Rotation: CW
Total length in millimeters: 199.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (1)

Files

  • OEM
    F032111136, js651, R1040015, R1040024, R1040039, RGO 111136, S114-473, s114-473, S114-480, s114-480, S114-480A, s114-480a, S114-480B, s114-480b, 8-94386-3280, 8-94454-8911, 8-94483-9180, 8-97117-7700, 0986 016 151, 0986 016 171, 111136, 1202009, 1202026, 1202136, 1202178, 0001310011, 09117556, 09163857, 9512052, 94386328, 94454891, 94483918, 97117770, 8943863280, 8944548911, 8944839180, 8971177700

  • Normalised article numbler
    aus951, aus953, bso7118, bso7136, cst20106, drs3189, drs3189x, drs3394x, drs3774, f032111136, f042004046, f042004047, f042s04047, frs670, is9300, js651, lrs00429, lrs00738, ms662, qs1502, r1040015, r1040024, r1040039, rgo111136, s114473, s114480, s114480a, s114480b, s2004, s2078sr, s2109pr, str6021, str6021an, str6021b, str72052, vs339, 8ea011610861, 8ea730239001, 4228, 11524, 11666, 18278, 18279n, 20651, 30134r, 103537, 104560, 111136, 220048, 220048a, 251276, 252055, 455743, 455886, 726813, 726860, 1202009, 1202026, 1202136, 1202178, 0001310011, 2652908, 8016151, 8080011, 8213026, 09117556, 09163857, 9512052, 11040193, 11040194, 94386328, 94454891, 94483918, 97117770, 328028092, 328029092, 943241107, 0986016151, 0986016153, 0986016171, 0986016173, 8943863280, 8944548911, 8944839180, 8971177700
  • Description
    Starter motor 12V - 1.4kW, 9k For Yourex product order 91-430-1615

    Voltage: 12
    kW: 1.4
    Mounting flange: 78.00
    Drive distance: 19.00
    Mounting hole 1 mm: 11.80
    Distance/-back: 176.00
    Distance/front: 23.50
    Number of teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: M4
    Gear type: GR
    Distance in millimeters: 117.50
    Rotation: CW
    Total length in millimeters: 199.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032111136, js651, R1040015, R1040024, R1040039, RGO 111136, S114-473, s114-473, S114-480, s114-480, S114-480A, s114-480a, S114-480B, s114-480b, 8-94386-3280, 8-94454-8911, 8-94483-9180, 8-97117-7700, 0986 016 151, 0986 016 171, 111136, 1202009, 1202026, 1202136, 1202178, 0001310011, 09117556, 09163857, 9512052, 94386328, 94454891, 94483918, 97117770, 8943863280, 8944548911, 8944839180, 8971177700

    • Normalised article numbler
      aus951, aus953, bso7118, bso7136, cst20106, drs3189, drs3189x, drs3394x, drs3774, f032111136, f042004046, f042004047, f042s04047, frs670, is9300, js651, lrs00429, lrs00738, ms662, qs1502, r1040015, r1040024, r1040039, rgo111136, s114473, s114480, s114480a, s114480b, s2004, s2078sr, s2109pr, str6021, str6021an, str6021b, str72052, vs339, 8ea011610861, 8ea730239001, 4228, 11524, 11666, 18278, 18279n, 20651, 30134r, 103537, 104560, 111136, 220048, 220048a, 251276, 252055, 455743, 455886, 726813, 726860, 1202009, 1202026, 1202136, 1202178, 0001310011, 2652908, 8016151, 8080011, 8213026, 09117556, 09163857, 9512052, 11040193, 11040194, 94386328, 94454891, 94483918, 97117770, 328028092, 328029092, 943241107, 0986016151, 0986016153, 0986016171, 0986016173, 8943863280, 8944548911, 8944839180, 8971177700
