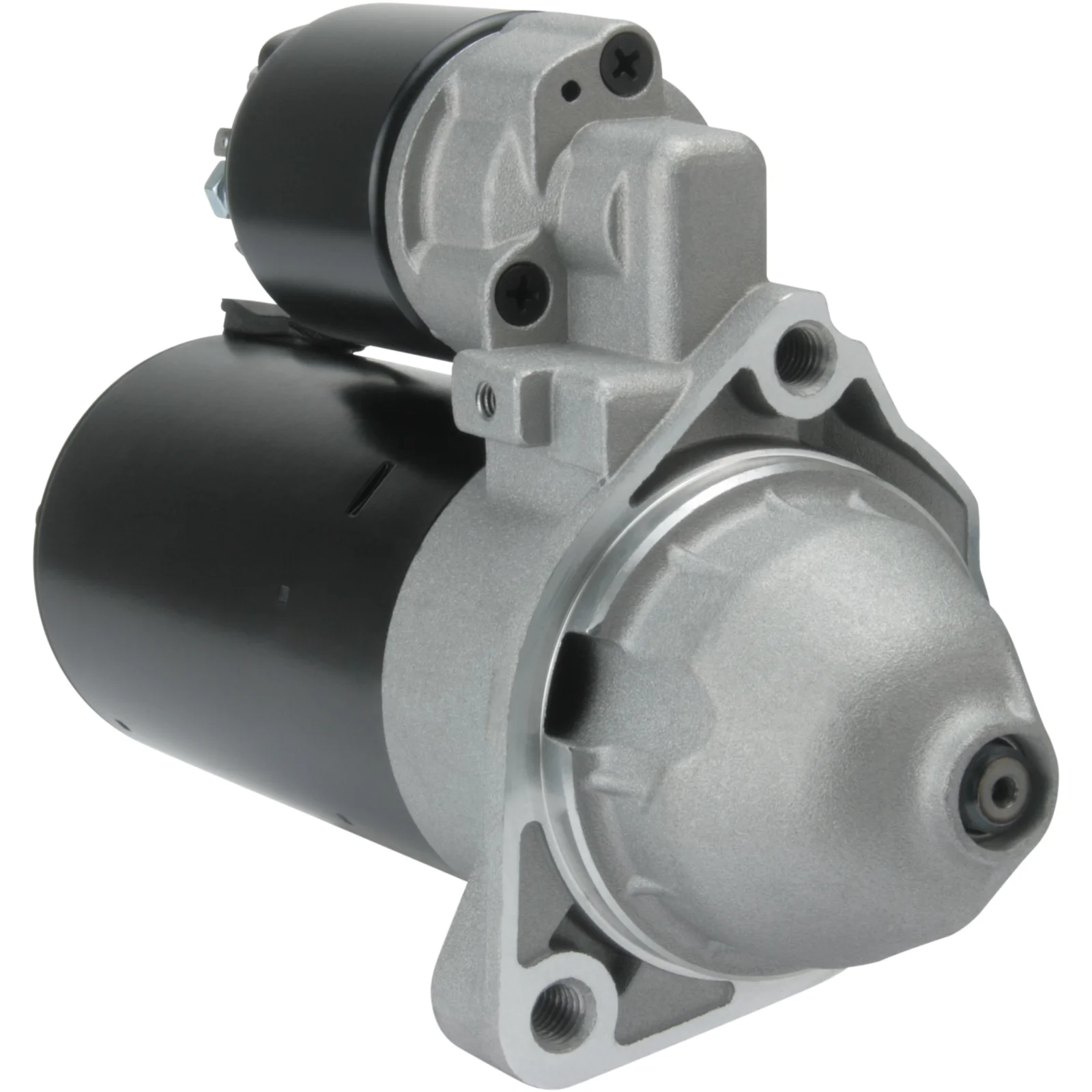

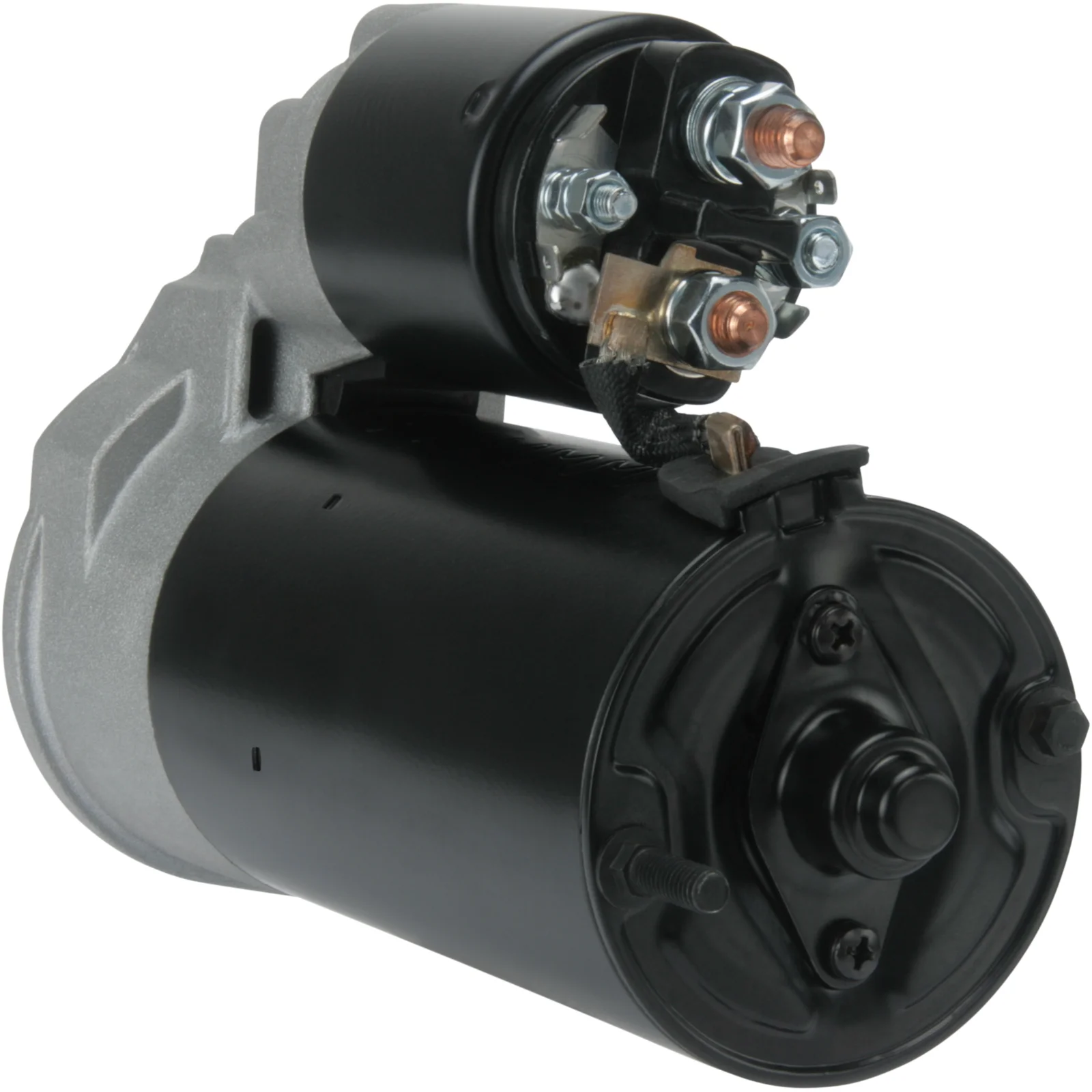

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115940

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.8
Mount. flange: 76.20
Drive dist.: 21.00
Dist./back: 174.50
Dist./front: 57.50
No./teeth: 9
B+: M8
Thread length mm: 13.50
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. mm: 110.50
Rotation: CW
Total length mm: 245.00
Terminal 30h: M5
Position/30h: 45
Prod. info: BN
No./mount. holes: 2 (2)

Files

  • OEM
    F032115940, RGO 115940, 1986S00749, 0001109057, 0001109427, 7508636, 12417508634, 12417508636

  • Normalised article numbler
    cst10429, drs3686, f032115940, lrs02431, rgo115940, s0215, 1986s00749, 17856n, 105596, 254103, 0001109057, 0001109427, 7508636, 11090136, 210512092, 315129092, 0986021993, 12417508634, 12417508636
  • Description
    Voltage: 12
    kW: 1.8
    Mount. flange: 76.20
    Drive dist.: 21.00
    Dist./back: 174.50
    Dist./front: 57.50
    No./teeth: 9
    B+: M8
    Thread length mm: 13.50
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Dist. mm: 110.50
    Rotation: CW
    Total length mm: 245.00
    Terminal 30h: M5
    Position/30h: 45
    Prod. info: BN
    No./mount. holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032115940, RGO 115940, 1986S00749, 0001109057, 0001109427, 7508636, 12417508634, 12417508636

    • Normalised article numbler
      cst10429, drs3686, f032115940, lrs02431, rgo115940, s0215, 1986s00749, 17856n, 105596, 254103, 0001109057, 0001109427, 7508636, 11090136, 210512092, 315129092, 0986021993, 12417508634, 12417508636
