HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112124

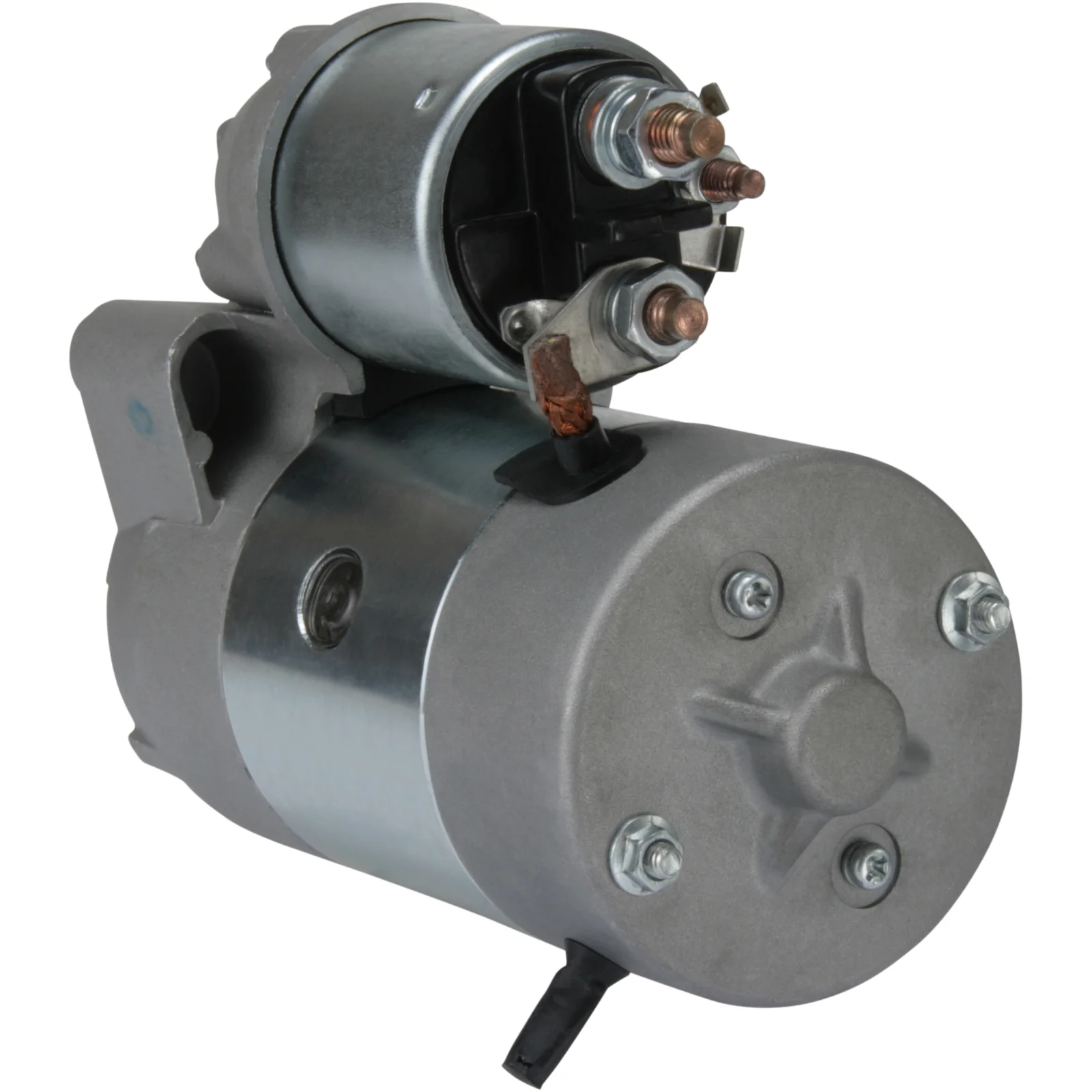

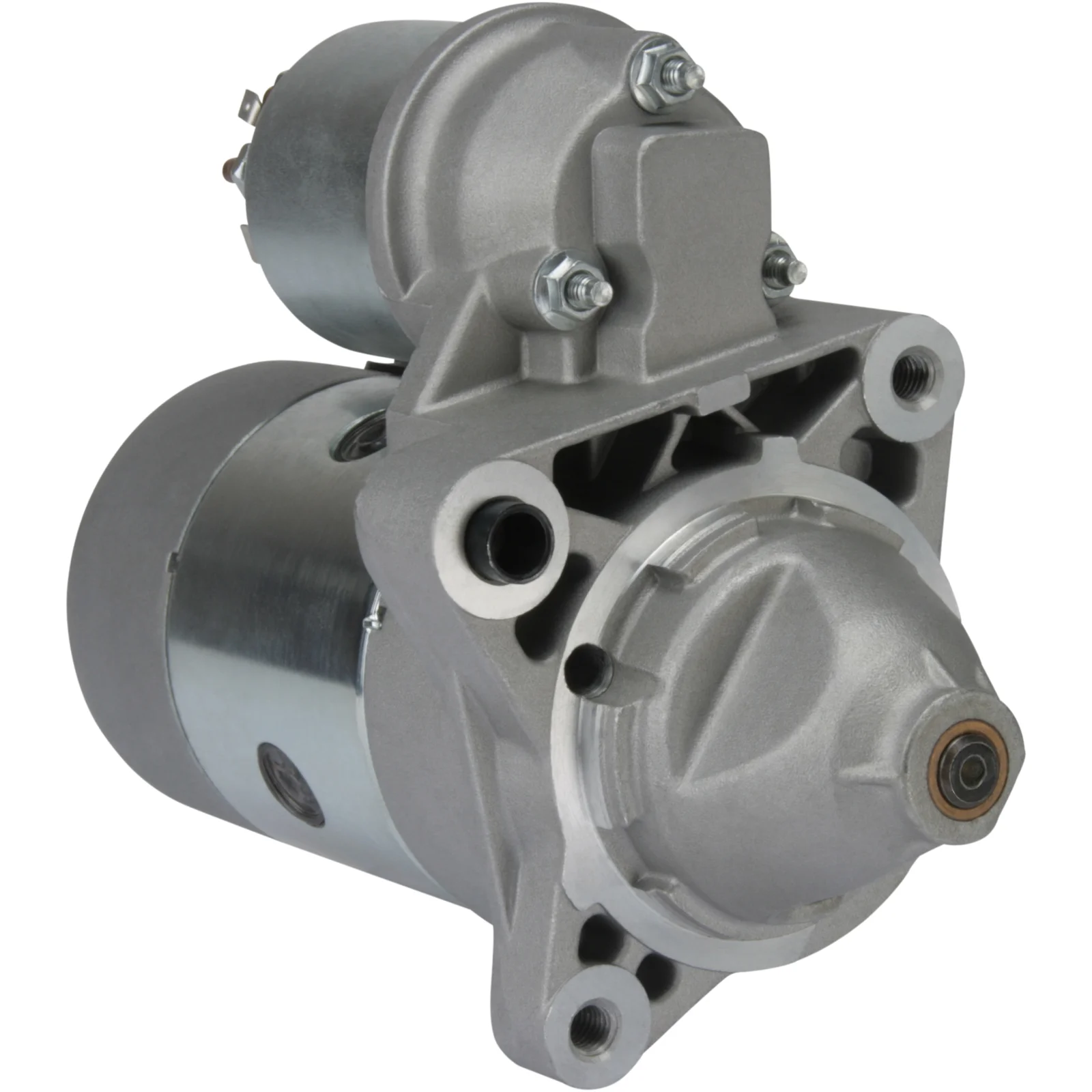

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.9, No./teeth: 8, Rotation: CW

Description

Voltage: 12
kW: 0.9
Mounting flange: 64.00
Drive distance: 11.00
Mounting hole 3 mm: M8
Distance / back: 152.00
Distance / front: 47.00
Number / teeth: 8
B+: M8
Position / 50: 20
Terminal 50: M6
Gear type: DD / GR
Distance 2: 71.50
Distance 3: 72.50
Distance in mm: 105.00
Rotation: CW
Total length in mm: 206.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (3)

Files

  • OEM
    cs975, F032112124, nsb132, RGO 112124, 1986S00972, 7642573, 7773812, 46231540, 46417006, 46431502, 46475793, 46475794, 46774415, 50246648, 63103002, 63103007, 63103022, 63222831, 63222833, 63223001, 63223031, 63223033, 63223085, 63223101, 63223303, 063103002000, 063103002010, 063103007000, 063103007010, 063216731000, 063223101000

  • Normalised article numbler
    bso7255, cs975, cst30116, dendsn577, dendsn586, drs3104, drs3697, drs3697x, drs3698, dsn577, dsn586, f032112124, frs179, is0392, lrs00697, lrt00147, msr327, nsb132, qs2411, rgo112124, s4020, str52003, vs241, 8ea737082001, 8ea737148001, 1986s00972, 4146, 4423, 5802m1, 10883, 11520, 11680, 30696r, 30697r, 103663, 220018, 220018a, 220166, 220166a, 251184, 252051, 252210, 436007, 455872, 1910450, 7642573, 7773812, 8080043, 11090022, 11090051, 35258890, 46231540, 46417006, 46431502, 46475793, 46475794, 46774415, 50246648, 063103002, 63103002, 63103007, 063103022, 63103022, 63222831, 63222833, 63223001, 63223031, 63223033, 63223085, 063223101, 63223101, 63223303, 318034092, 318049092, 318056092, 318059092, 943223085, 0986010450, 0986010451, 0986025480, 063103002000, 063103002010, 063103007000, 063103007010, 063103022010, 063216731000, 063223101000, 944280800430
  • Description
    Voltage: 12
    kW: 0.9
    Mounting flange: 64.00
    Drive distance: 11.00
    Mounting hole 3 mm: M8
    Distance / back: 152.00
    Distance / front: 47.00
    Number / teeth: 8
    B+: M8
    Position / 50: 20
    Terminal 50: M6
    Gear type: DD / GR
    Distance 2: 71.50
    Distance 3: 72.50
    Distance in mm: 105.00
    Rotation: CW
    Total length in mm: 206.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      cs975, F032112124, nsb132, RGO 112124, 1986S00972, 7642573, 7773812, 46231540, 46417006, 46431502, 46475793, 46475794, 46774415, 50246648, 63103002, 63103007, 63103022, 63222831, 63222833, 63223001, 63223031, 63223033, 63223085, 63223101, 63223303, 063103002000, 063103002010, 063103007000, 063103007010, 063216731000, 063223101000

    • Normalised article numbler
      bso7255, cs975, cst30116, dendsn577, dendsn586, drs3104, drs3697, drs3697x, drs3698, dsn577, dsn586, f032112124, frs179, is0392, lrs00697, lrt00147, msr327, nsb132, qs2411, rgo112124, s4020, str52003, vs241, 8ea737082001, 8ea737148001, 1986s00972, 4146, 4423, 5802m1, 10883, 11520, 11680, 30696r, 30697r, 103663, 220018, 220018a, 220166, 220166a, 251184, 252051, 252210, 436007, 455872, 1910450, 7642573, 7773812, 8080043, 11090022, 11090051, 35258890, 46231540, 46417006, 46431502, 46475793, 46475794, 46774415, 50246648, 063103002, 63103002, 63103007, 063103022, 63103022, 63222831, 63222833, 63223001, 63223031, 63223033, 63223085, 063223101, 63223101, 63223303, 318034092, 318049092, 318056092, 318059092, 943223085, 0986010450, 0986010451, 0986025480, 063103002000, 063103002010, 063103007000, 063103007010, 063103022010, 063216731000, 063223101000, 944280800430
