Article no.: F032113327

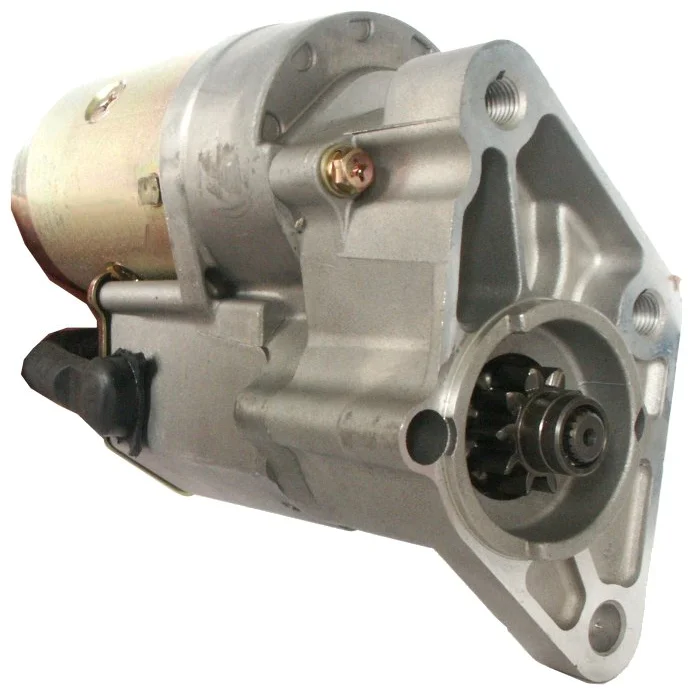

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 64.00
Drive distance: 4.50
Mounting hole 3 mm: M12-1.50
Mounting hole 2 mm: 13.50
Distance / back: 167.00
Distance / front: 17.00
Number / teeth: 10
B+: M8
Position / 50: 35
Terminal 50: 6.30
Gear type: GR
Distance 2: 139.50
Distance 3: 75.00
Distance mm: 83.50
Rotation: CW
Total length mm: 236.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (2)

Files

  • OEM
    0K55218400, 0K55218400A, 0K5531-8-400, F032113327, js1298, OK55218400, OK55218400A, OK553-18-400, RGO 113327, 03111-4140, 36100-4X100

  • Normalised article numbler
    0k55218400, 0k55218400a, 0k55318400, cst41101, drs3924, drs3924n, f032113327, f042s0h051, j5210300, js1298, lrs01623, ok55218400, ok55218400a, ok55318400, pbns3020, rgo113327, s6008, str75000, strh051, 8ea011610731, 8ea738042001, 9785, 32623n, 32623r, 105409, 201298, 220352, 220352a, 253150, 361004x100, 8070300, 8212931, 11040627, 11040682, 031114140, 063522615, 624010102, 0986022770, 063522615010, 944280703000
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 64.00
    Drive distance: 4.50
    Mounting hole 3 mm: M12-1.50
    Mounting hole 2 mm: 13.50
    Distance / back: 167.00
    Distance / front: 17.00
    Number / teeth: 10
    B+: M8
    Position / 50: 35
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 139.50
    Distance 3: 75.00
    Distance mm: 83.50
    Rotation: CW
    Total length mm: 236.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (2)

    Files

  • Suitable for these vehicles

    • OEM
      0K55218400, 0K55218400A, 0K5531-8-400, F032113327, js1298, OK55218400, OK55218400A, OK553-18-400, RGO 113327, 03111-4140, 36100-4X100

    • Normalised article numbler
      0k55218400, 0k55218400a, 0k55318400, cst41101, drs3924, drs3924n, f032113327, f042s0h051, j5210300, js1298, lrs01623, ok55218400, ok55218400a, ok55318400, pbns3020, rgo113327, s6008, str75000, strh051, 8ea011610731, 8ea738042001, 9785, 32623n, 32623r, 105409, 201298, 220352, 220352a, 253150, 361004x100, 8070300, 8212931, 11040627, 11040682, 031114140, 063522615, 624010102, 0986022770, 063522615010, 944280703000
