Article no.: F032110839

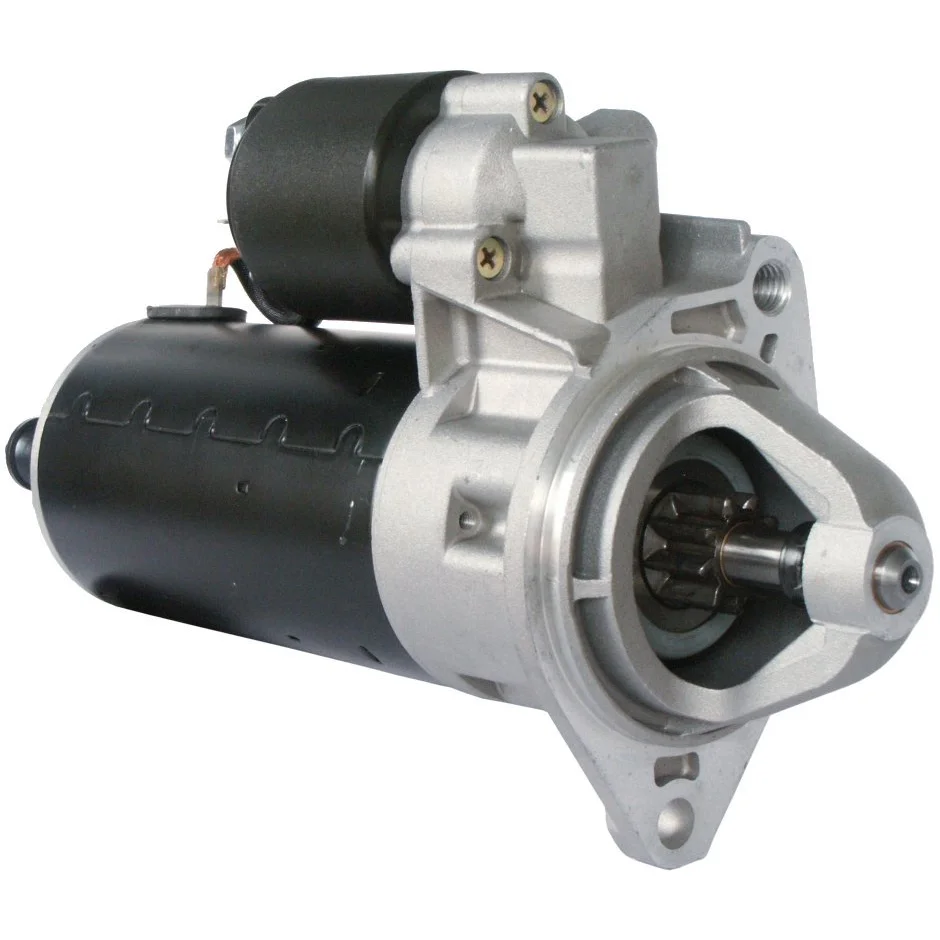

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 9, Rotation: CW

Description

Opel Diesel Starter motor 12V-1.7kW 12V - 1.7kW, 10k For Youre product order 91-430-1308

Voltage: 12
kW: 1.7
Mounting flange: 82.00
Drive distance: 19.50
Mounting hole 2 mm: 10.30
Distance/back: 212.00
Distance/front: 57.50
Number of teeth: 9
B+: M8
Position/50: 3
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 113.00
Rotation: CW
Total length in millimeters: 269.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (1)

Files

  • OEM
    aze2507, b001117012, cs322, F032110839, R1040009, R1040028, RGO 110839, 0001 110 012, 0001 110 055, 0001 110 115, 11.130.558, 0986 013 080, 110839, 0001110012, 0001110055, 0001110115, 1202013, 1202016, 1202036, 1202045, 1202118, 1202143, 1202156, 1202956, 0001317013, 0001317022, 0001317025, 3471396, 6202046, 09193455, 09512420, 9512763, 90008257, 90055369, 90166122, 90197192, 90243160, 90337030, 90349285, 90443488, 90511841, 90519332, 90540586, 93175881, 93175899

  • Normalised article numbler
    aze2507, b001117012, bso7066, cs322, cst10215, drs0930, drs3080, drs8210, drs8210x, f032110839, f042002062, f042s02062, frs156, is0558, lrs00478, lrs00657, lrs02365, ms218, msr486, qs0915, qs1446, r1040009, r1040028, rgo110839, s0217, s0646s, str2207, vs174, vs195, 8ea012526631, 8ea726051001, 8ea726070001, 1139, 1246, 3567, 3674, 10290, 10322, 11308, 11309, 30657n, 103182, 110839, 201187, 220052, 220052a, 250406, 251008, 254037, 433344, 438435, 440756, 455696, 726070, 726870, 0001110012, 0001110055, 0001110115, 1202013, 1202016, 1202036, 1202045, 1202118, 1202143, 1202156, 1202956, 0001317013, 0001317022, 0001317025, 2910930, 2913080, 3471396, 6202046, 8013080, 8018210, 09193455, 09512420, 9512763, 11010930, 11013080, 11018210, 11130558, 42013080, 90008257, 90055369, 90166122, 90197192, 90243160, 90337030, 90349285, 90443488, 90511841, 90519332, 90540586, 93175881, 93175899, 130009092, 328005092, 328018092, 328066102, 943251438, 944280130, 0986010930, 0986010933, 0986013080, 0986013088, 0986018210, 0986018213, 944280109300, 944280130800, 944280182100
  • Description
    Opel Diesel Starter motor 12V-1.7kW 12V - 1.7kW, 10k For Youre product order 91-430-1308

    Voltage: 12
    kW: 1.7
    Mounting flange: 82.00
    Drive distance: 19.50
    Mounting hole 2 mm: 10.30
    Distance/back: 212.00
    Distance/front: 57.50
    Number of teeth: 9
    B+: M8
    Position/50: 3
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 113.00
    Rotation: CW
    Total length in millimeters: 269.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      aze2507, b001117012, cs322, F032110839, R1040009, R1040028, RGO 110839, 0001 110 012, 0001 110 055, 0001 110 115, 11.130.558, 0986 013 080, 110839, 0001110012, 0001110055, 0001110115, 1202013, 1202016, 1202036, 1202045, 1202118, 1202143, 1202156, 1202956, 0001317013, 0001317022, 0001317025, 3471396, 6202046, 09193455, 09512420, 9512763, 90008257, 90055369, 90166122, 90197192, 90243160, 90337030, 90349285, 90443488, 90511841, 90519332, 90540586, 93175881, 93175899

    • Normalised article numbler
      aze2507, b001117012, bso7066, cs322, cst10215, drs0930, drs3080, drs8210, drs8210x, f032110839, f042002062, f042s02062, frs156, is0558, lrs00478, lrs00657, lrs02365, ms218, msr486, qs0915, qs1446, r1040009, r1040028, rgo110839, s0217, s0646s, str2207, vs174, vs195, 8ea012526631, 8ea726051001, 8ea726070001, 1139, 1246, 3567, 3674, 10290, 10322, 11308, 11309, 30657n, 103182, 110839, 201187, 220052, 220052a, 250406, 251008, 254037, 433344, 438435, 440756, 455696, 726070, 726870, 0001110012, 0001110055, 0001110115, 1202013, 1202016, 1202036, 1202045, 1202118, 1202143, 1202156, 1202956, 0001317013, 0001317022, 0001317025, 2910930, 2913080, 3471396, 6202046, 8013080, 8018210, 09193455, 09512420, 9512763, 11010930, 11013080, 11018210, 11130558, 42013080, 90008257, 90055369, 90166122, 90197192, 90243160, 90337030, 90349285, 90443488, 90511841, 90519332, 90540586, 93175881, 93175899, 130009092, 328005092, 328018092, 328066102, 943251438, 944280130, 0986010930, 0986010933, 0986013080, 0986013088, 0986018210, 0986018213, 944280109300, 944280130800, 944280182100
