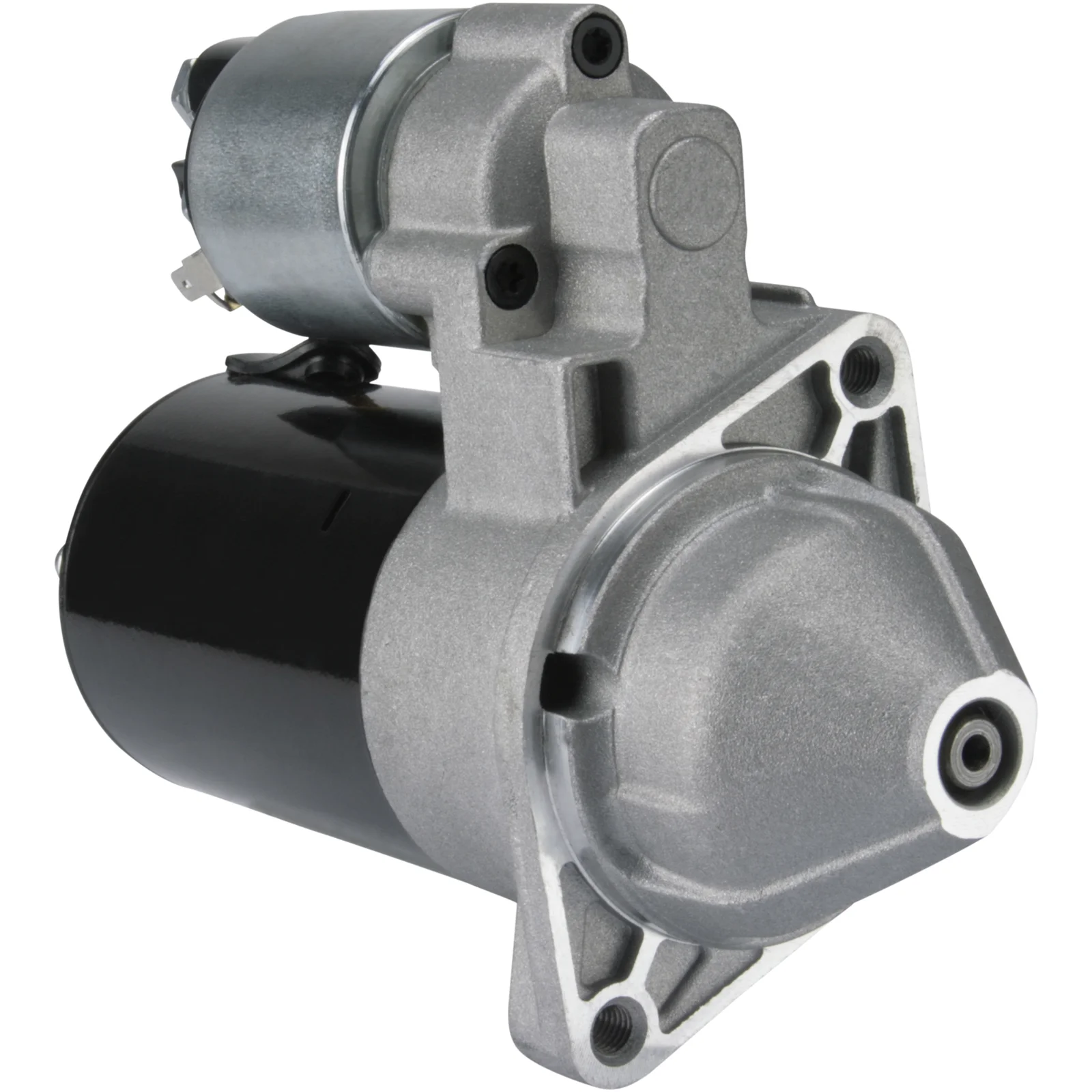

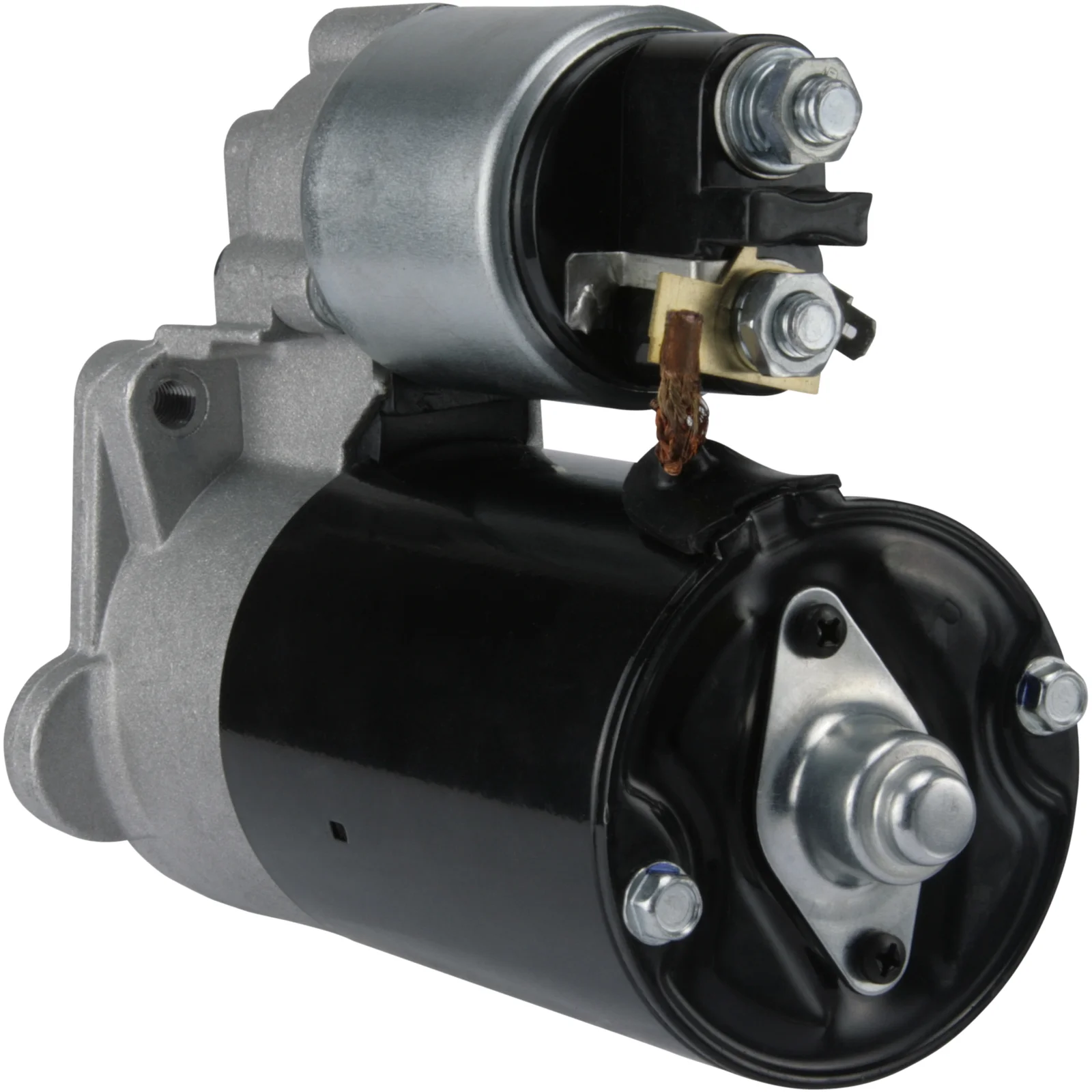

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114051

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.0
Mounting flange: 70.00
Drive distance: 15.00
Distance/back: 155.50
Distance/front: 48.00
Number of teeth: 9
B+: M8
Position/B+: 60
Position/50: 20
Terminal 50: M6-6.30
Gear type: Gear
Distributor mm: 100.00
Rotation: CW
Total length mm: 203.50
Drive type: Steel
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (2)

Files

  • OEM
    A0001477V006, A0051513801, A005151380180, A6601510101, A660151010180, cs1241, F032114051, Q0001477V006, RGO 114051, 0001477V006, 1986S00649, 0001106014, 0001106025, 0051513801, 005151380180, 6601510101, 660151010180

  • Normalised article numbler
    a0001477v006, a0051513801, a005151380180, a6601510101, a660151010180, cs1241, cst10194, drs3877, f032114051, f042s0h082, lrs01575, q0001477v006, rgo114051, s0498, strh082, 8ea012527821, 8ea737906001, 0001477v006, 1986s00649, 3032, 32545n, 32580, 32580n, 32580r, 101241, 105117, 220214, 220214a, 253077, 0001106014, 0001106025, 11019940, 42019940, 0051513801, 063521060, 325030092, 325045092, 0986019940, 005151380180, 6601510101, 063521060140, 660151010180, 944280800960
  • Description
    Voltage: 12
    kW: 1.0
    Mounting flange: 70.00
    Drive distance: 15.00
    Distance/back: 155.50
    Distance/front: 48.00
    Number of teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 20
    Terminal 50: M6-6.30
    Gear type: Gear
    Distributor mm: 100.00
    Rotation: CW
    Total length mm: 203.50
    Drive type: Steel
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      A0001477V006, A0051513801, A005151380180, A6601510101, A660151010180, cs1241, F032114051, Q0001477V006, RGO 114051, 0001477V006, 1986S00649, 0001106014, 0001106025, 0051513801, 005151380180, 6601510101, 660151010180

    • Normalised article numbler
      a0001477v006, a0051513801, a005151380180, a6601510101, a660151010180, cs1241, cst10194, drs3877, f032114051, f042s0h082, lrs01575, q0001477v006, rgo114051, s0498, strh082, 8ea012527821, 8ea737906001, 0001477v006, 1986s00649, 3032, 32545n, 32580, 32580n, 32580r, 101241, 105117, 220214, 220214a, 253077, 0001106014, 0001106025, 11019940, 42019940, 0051513801, 063521060, 325030092, 325045092, 0986019940, 005151380180, 6601510101, 063521060140, 660151010180, 944280800960
