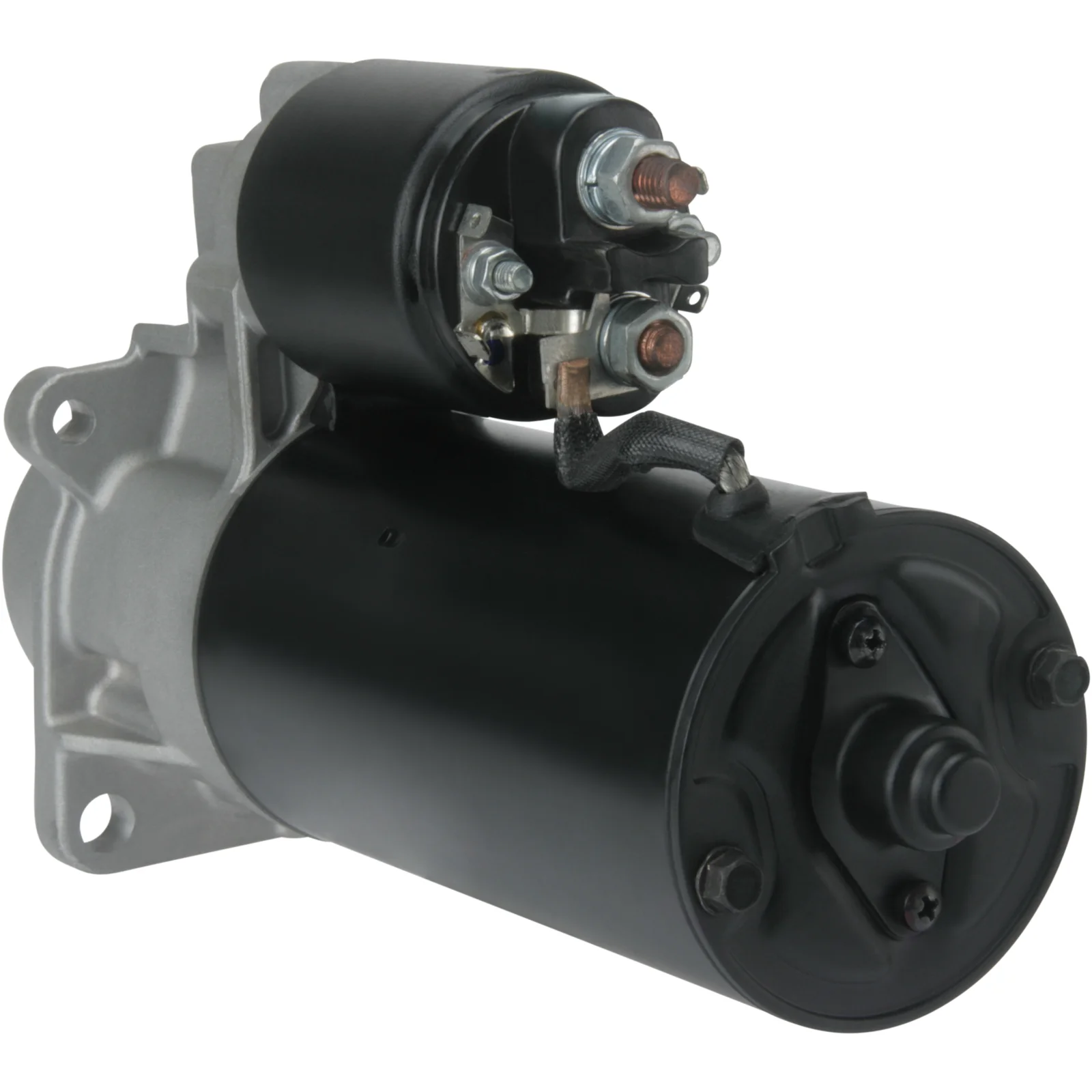

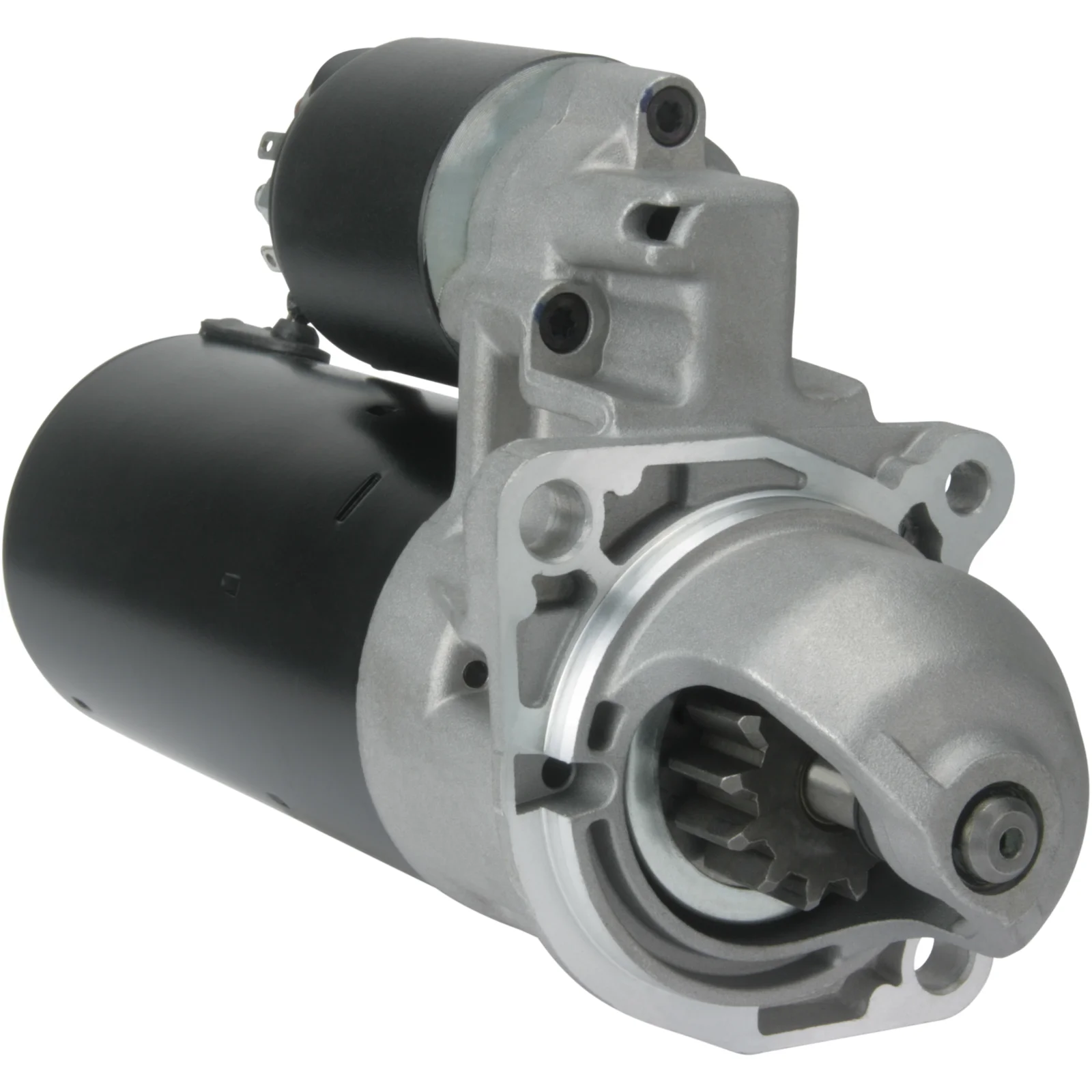

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111908

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 13, Rotation: CW

Description

Voltage: 12
kW: 1.8
Mounting flange: 76.20
Drive distance: 21.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Distance/behind: 193.00
Distance/in front: 59.00
Number/teeth: 13
B+: M8
Position/50: 15
Terminal 50: M6
Gear type: GR
Distance 2: 105.00
Distance 3: 76.00
Distance mm: 76.00
Rotation: CW
Total length mm: 265.50
Terminal 30h: M5
Position/30h: 45
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 3 (0)

Files

  • OEM
    cs1048, F032111908, RGO 111908, 0001110110, 2245328, 12412245328, 12412246388

  • Normalised article numbler
    cs1048, cst10214, drs7180, f032111908, les0541, lrt00226, rgo111908, s0271, str50215, 8ea012528341, 8ea737312001, 3515, 4491, 31226n, 101048, 103562, 252205, 458528, 726964, 726985, 0001110110, 2245328, 8212730, 11017180, 315116132, 0986017180, 0986017183, 12412245328, 12412246388, 943253136010, 944280171800
  • Description
    Voltage: 12
    kW: 1.8
    Mounting flange: 76.20
    Drive distance: 21.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Distance/behind: 193.00
    Distance/in front: 59.00
    Number/teeth: 13
    B+: M8
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Distance 2: 105.00
    Distance 3: 76.00
    Distance mm: 76.00
    Rotation: CW
    Total length mm: 265.50
    Terminal 30h: M5
    Position/30h: 45
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1048, F032111908, RGO 111908, 0001110110, 2245328, 12412245328, 12412246388

    • Normalised article numbler
      cs1048, cst10214, drs7180, f032111908, les0541, lrt00226, rgo111908, s0271, str50215, 8ea012528341, 8ea737312001, 3515, 4491, 31226n, 101048, 103562, 252205, 458528, 726964, 726985, 0001110110, 2245328, 8212730, 11017180, 315116132, 0986017180, 0986017183, 12412245328, 12412246388, 943253136010, 944280171800
