Article no.: F032112014

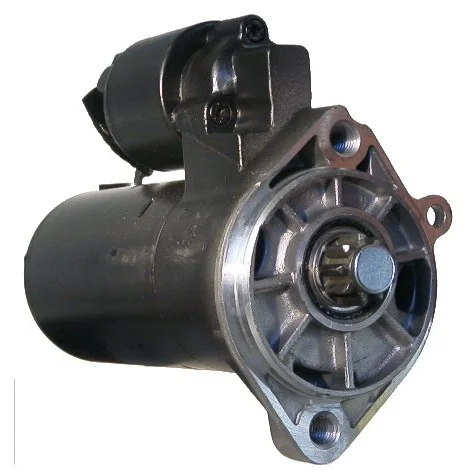

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 82.50
Drive distance: 21.00
Dist./back: 211.50
Dist./front: 24.50
Number of teeth: 9
B+: M8
Position/B+: 40
Position/50: 55
Terminal 50: Plug
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 237.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (2)

Files

  • OEM
    cs1115, F032112014, RGO 112014, 0001125503, 0001125504, 0001125513, 0001125514, 1516661R, 069911023h, 069911023HX, 069911023K, 069911023KX

  • Normalised article numbler
    cs1115, cst10555, drs3809, f032112014, lrs01519, pbns3055, rgo112014, s0169, str50178, 8ea737567001, 4573, 32555n, 101115, 104382, 252492, 0001125503, 0001125504, 0001125513, 0001125514, 1516661r, 11090034, 20513055, 069911023h, 069911023hx, 069911023k, 069911023kx, 311072092, 0986023800
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 82.50
    Drive distance: 21.00
    Dist./back: 211.50
    Dist./front: 24.50
    Number of teeth: 9
    B+: M8
    Position/B+: 40
    Position/50: 55
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 237.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      cs1115, F032112014, RGO 112014, 0001125503, 0001125504, 0001125513, 0001125514, 1516661R, 069911023h, 069911023HX, 069911023K, 069911023KX

    • Normalised article numbler
      cs1115, cst10555, drs3809, f032112014, lrs01519, pbns3055, rgo112014, s0169, str50178, 8ea737567001, 4573, 32555n, 101115, 104382, 252492, 0001125503, 0001125504, 0001125513, 0001125514, 1516661r, 11090034, 20513055, 069911023h, 069911023hx, 069911023k, 069911023kx, 311072092, 0986023800
