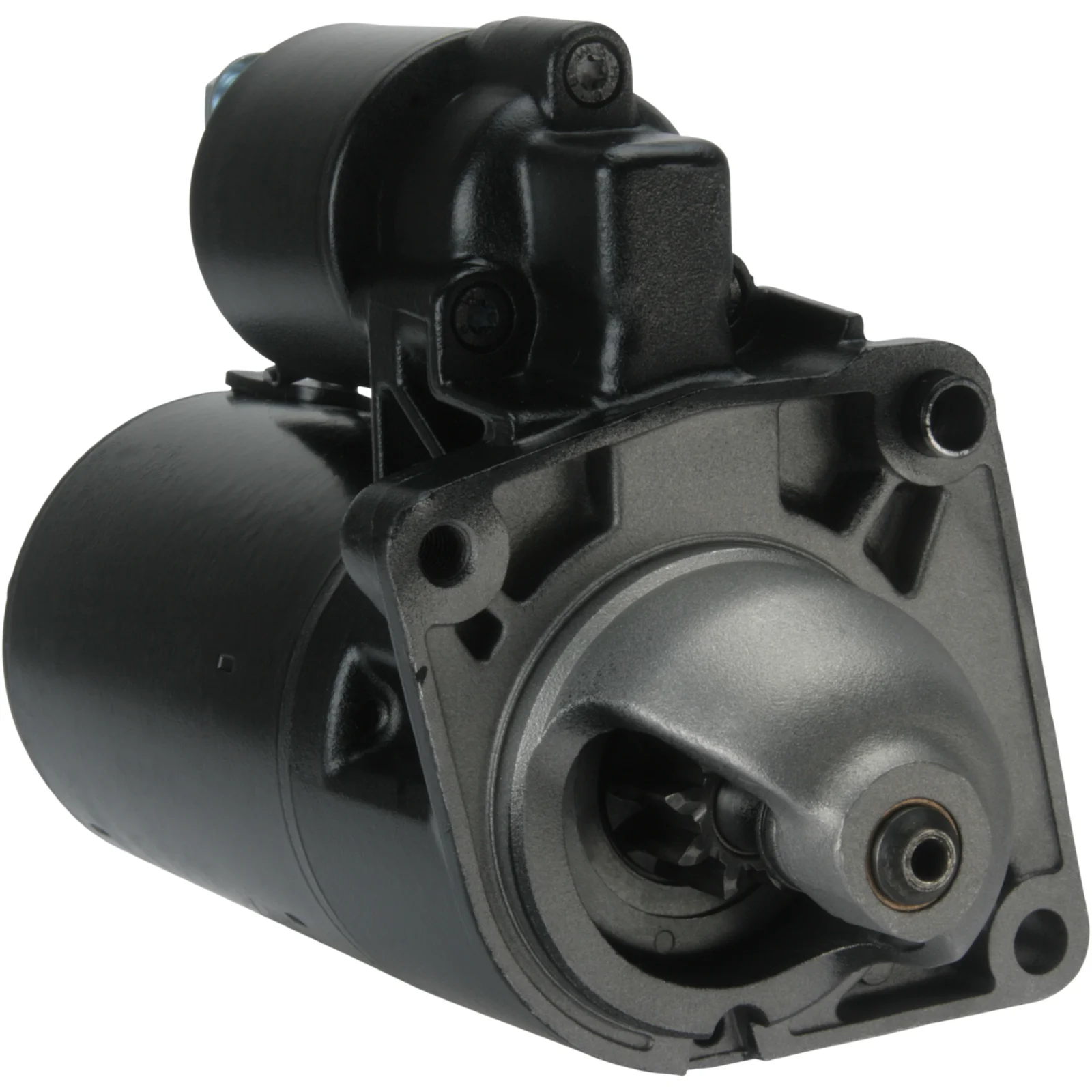

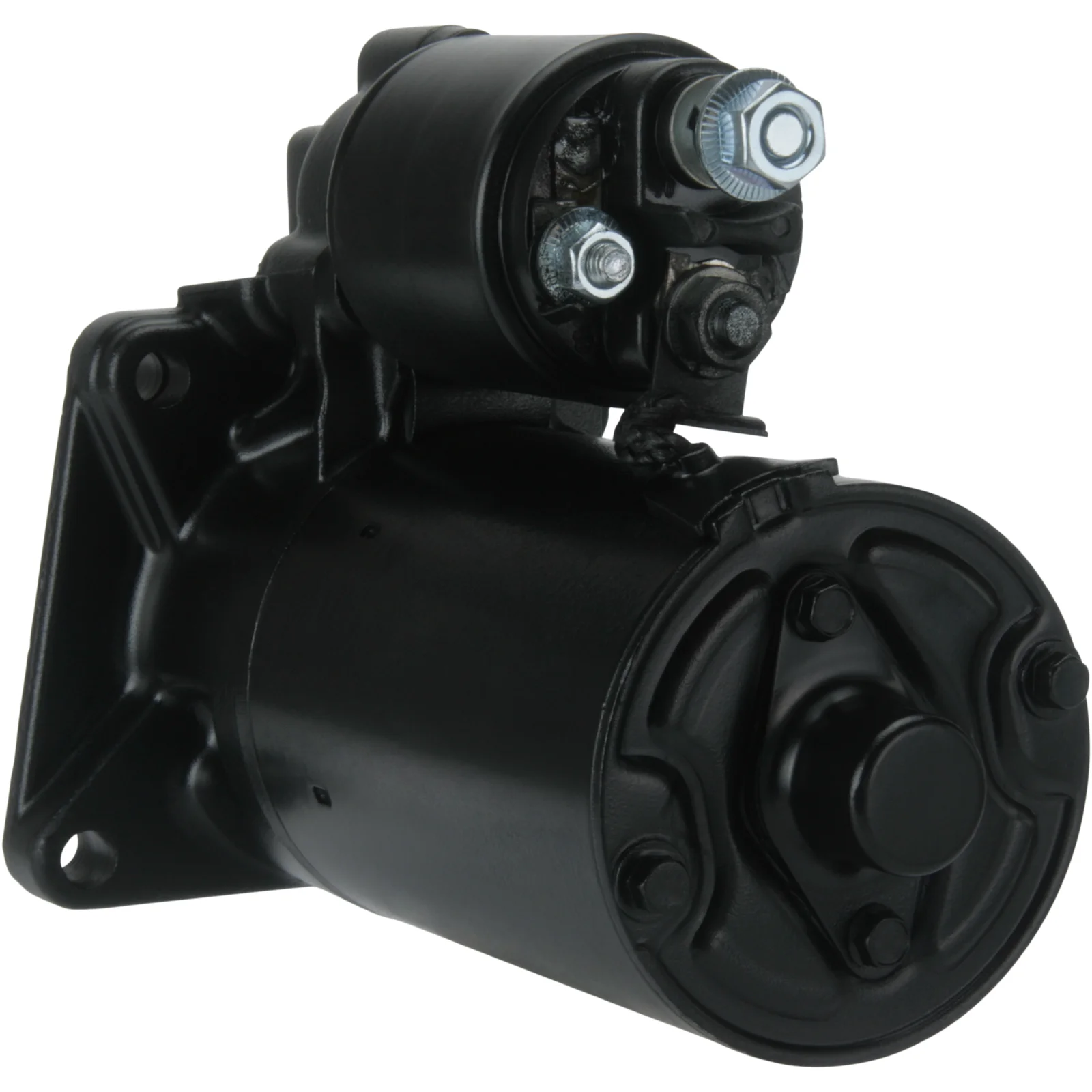

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111422

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Description

Starter motor 12V - 0.9kW, 9k 12V - 0.9kW, 9k For Yourex product order 91-165-1703 Voltage: 12 kW: 0.8 Mounting flange: 64.00 Drive distance: 11.50 Mounting hole 3 mm: M8 Mounting hole 2 mm: 9.20 Mounting hole 1 mm: 8.20 Distance / back: 152.50 Distance / front: 47.00 Number / teeth: 9 B+: M8 Position / 50: 45 Terminal 50: M6 Gear type: DD/GR Distance 2: 109.50 Distance 3: 73.00 Distance mm: 74.50 Rotation: CW Total length mm: 206.00 Drive type: Steel Product info: BN Waterproof: No Oil sealed: No Number / mounting holes: 3 (1)

Files

  • OEM
    AZE 1202, AZE 1511, AZE1202, aze1511, cs796, D6RA 59, d6ra59, f000al0319, F032111422, LRS 989, RGO 111422, 0001 113 006, 0001 116 005, 11.130.421, 11.130.763, 0421, 0763, 0986 017 030, 1986S01025, 11130 421, 111422, 432643, 455553, 0001113006, 0001116005, 7735162, 7772456, 7772459, 7785449, 7796598, 9432228, 46231531, 46429594, 46430785, 46473785, 46476785, 46518059, 55196400, 63101002, 63221834, 63222888, 63222889, 63222890, 63222936, 63223200, 71752055

  • Normalised article numbler
    aze1202, aze1511, bso7153, cs796, cst10331, cst15125, cst30107, cst30162, d6ra59, drs3274, drs3274x, drs3777, f000al0319, f032111422, frs638, is0763, is90763, les0342, lrs00989, lrs02095, lrs02104, lrs989, lrt00198, nd159, qs1574, rgo111422, s3155s, s4022, s4022pr, s4066pr, s4066sr, str52007, vs287, 8ea011350511, 8ea012526931, 0421, 0763, 1986s01025, 3829, 10796, 11679, 30989n, 30989r, 111422, 201074, 220024, 220024a, 220182, 220182a, 251480, 252003, 252419, 253055, 432643, 446519, 455553, 726020, 726820, 838006, 0001113006, 0001116005, 7735162, 7772456, 7772459, 7785449, 7796598, 8017030, 8212205, 9432228, 11017030, 11130421, 11130763, 42017030, 46231531, 46429594, 46430785, 46473785, 46476785, 46518059, 55196400, 63101002, 063221834, 63221834, 63222888, 63222889, 63222890, 63222936, 63223200, 063521130, 71752055, 318053092, 318058092, 318072082, 318203102, 0986017030, 0986017031, 0986019291, 063101015010, 063521130060, 944280170300
  • Description
    Starter motor 12V - 0.9kW, 9k 12V - 0.9kW, 9k For Yourex product order 91-165-1703 Voltage: 12 kW: 0.8 Mounting flange: 64.00 Drive distance: 11.50 Mounting hole 3 mm: M8 Mounting hole 2 mm: 9.20 Mounting hole 1 mm: 8.20 Distance / back: 152.50 Distance / front: 47.00 Number / teeth: 9 B+: M8 Position / 50: 45 Terminal 50: M6 Gear type: DD/GR Distance 2: 109.50 Distance 3: 73.00 Distance mm: 74.50 Rotation: CW Total length mm: 206.00 Drive type: Steel Product info: BN Waterproof: No Oil sealed: No Number / mounting holes: 3 (1)

    Files

  • Suitable for these vehicles

    • OEM
      AZE 1202, AZE 1511, AZE1202, aze1511, cs796, D6RA 59, d6ra59, f000al0319, F032111422, LRS 989, RGO 111422, 0001 113 006, 0001 116 005, 11.130.421, 11.130.763, 0421, 0763, 0986 017 030, 1986S01025, 11130 421, 111422, 432643, 455553, 0001113006, 0001116005, 7735162, 7772456, 7772459, 7785449, 7796598, 9432228, 46231531, 46429594, 46430785, 46473785, 46476785, 46518059, 55196400, 63101002, 63221834, 63222888, 63222889, 63222890, 63222936, 63223200, 71752055

    • Normalised article numbler
      aze1202, aze1511, bso7153, cs796, cst10331, cst15125, cst30107, cst30162, d6ra59, drs3274, drs3274x, drs3777, f000al0319, f032111422, frs638, is0763, is90763, les0342, lrs00989, lrs02095, lrs02104, lrs989, lrt00198, nd159, qs1574, rgo111422, s3155s, s4022, s4022pr, s4066pr, s4066sr, str52007, vs287, 8ea011350511, 8ea012526931, 0421, 0763, 1986s01025, 3829, 10796, 11679, 30989n, 30989r, 111422, 201074, 220024, 220024a, 220182, 220182a, 251480, 252003, 252419, 253055, 432643, 446519, 455553, 726020, 726820, 838006, 0001113006, 0001116005, 7735162, 7772456, 7772459, 7785449, 7796598, 8017030, 8212205, 9432228, 11017030, 11130421, 11130763, 42017030, 46231531, 46429594, 46430785, 46473785, 46476785, 46518059, 55196400, 63101002, 063221834, 63221834, 63222888, 63222889, 63222890, 63222936, 63223200, 063521130, 71752055, 318053092, 318058092, 318072082, 318203102, 0986017030, 0986017031, 0986019291, 063101015010, 063521130060, 944280170300
