Article no.: F032111585

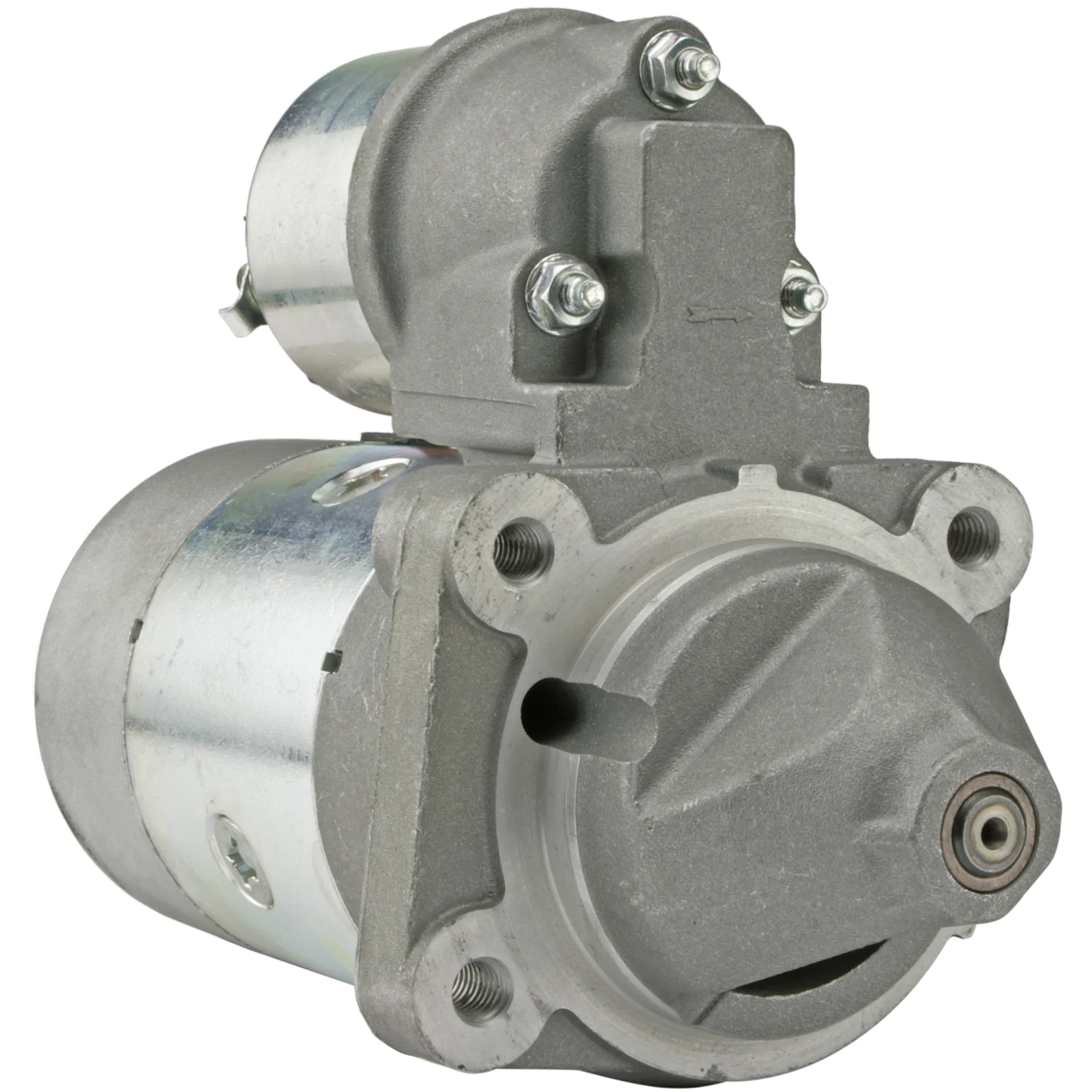

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.8
Mount. flange: 62.00
Drive dist.: 13.00
Mount. hole 3 mm: M8
Dist./back: 150.00
Dist./front: 49.00
No./teeth: 9
B+: M8
Position/50: 20
Terminal 50: M6
Gear type: DD
Dist. 2: 53.00
Dist. 3: 67.00
Dist. mm: 89.50
Rotation: CW
Total length mm: 206.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (3)

Files

  • OEM
    cs1038, F032111585, r80c, r80c1, RGO 111585, 7668988, 7737262, 8100000, 46231500, 46432301, 63222836, 63222837, 63222897, 63222905, 63222908, 8020020000, 9000330929, 9000330948

  • Normalised article numbler
    cs1038, cst30113, dendsn585, drs1891, drs7041, drs7041n, drs7041x, dsn585, f032111585, is0586, lrs00234, qs1570, r80c, r80c1, rgo111585, s4033, s4033pr, str52001, str52020, 8ea737273001, 4479, 11201, 0011891, 30191r, 30193r, 101038, 103556, 220162, 220162a, 250048, 252257, 433276, 7668988, 7737262, 8017041, 8100000, 11017040, 46231500, 46432301, 63222836, 63222837, 63222897, 063222905, 63222905, 063222908, 63222908, 318005092, 318073092, 318085092, 0986011898, 0986014718, 0986017041, 8020020000, 9000330929, 9000330948, 944280170410
  • Description
    Voltage: 12
    kW: 0.8
    Mount. flange: 62.00
    Drive dist.: 13.00
    Mount. hole 3 mm: M8
    Dist./back: 150.00
    Dist./front: 49.00
    No./teeth: 9
    B+: M8
    Position/50: 20
    Terminal 50: M6
    Gear type: DD
    Dist. 2: 53.00
    Dist. 3: 67.00
    Dist. mm: 89.50
    Rotation: CW
    Total length mm: 206.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      cs1038, F032111585, r80c, r80c1, RGO 111585, 7668988, 7737262, 8100000, 46231500, 46432301, 63222836, 63222837, 63222897, 63222905, 63222908, 8020020000, 9000330929, 9000330948

    • Normalised article numbler
      cs1038, cst30113, dendsn585, drs1891, drs7041, drs7041n, drs7041x, dsn585, f032111585, is0586, lrs00234, qs1570, r80c, r80c1, rgo111585, s4033, s4033pr, str52001, str52020, 8ea737273001, 4479, 11201, 0011891, 30191r, 30193r, 101038, 103556, 220162, 220162a, 250048, 252257, 433276, 7668988, 7737262, 8017041, 8100000, 11017040, 46231500, 46432301, 63222836, 63222837, 63222897, 063222905, 63222905, 063222908, 63222908, 318005092, 318073092, 318085092, 0986011898, 0986014718, 0986017041, 8020020000, 9000330929, 9000330948, 944280170410
