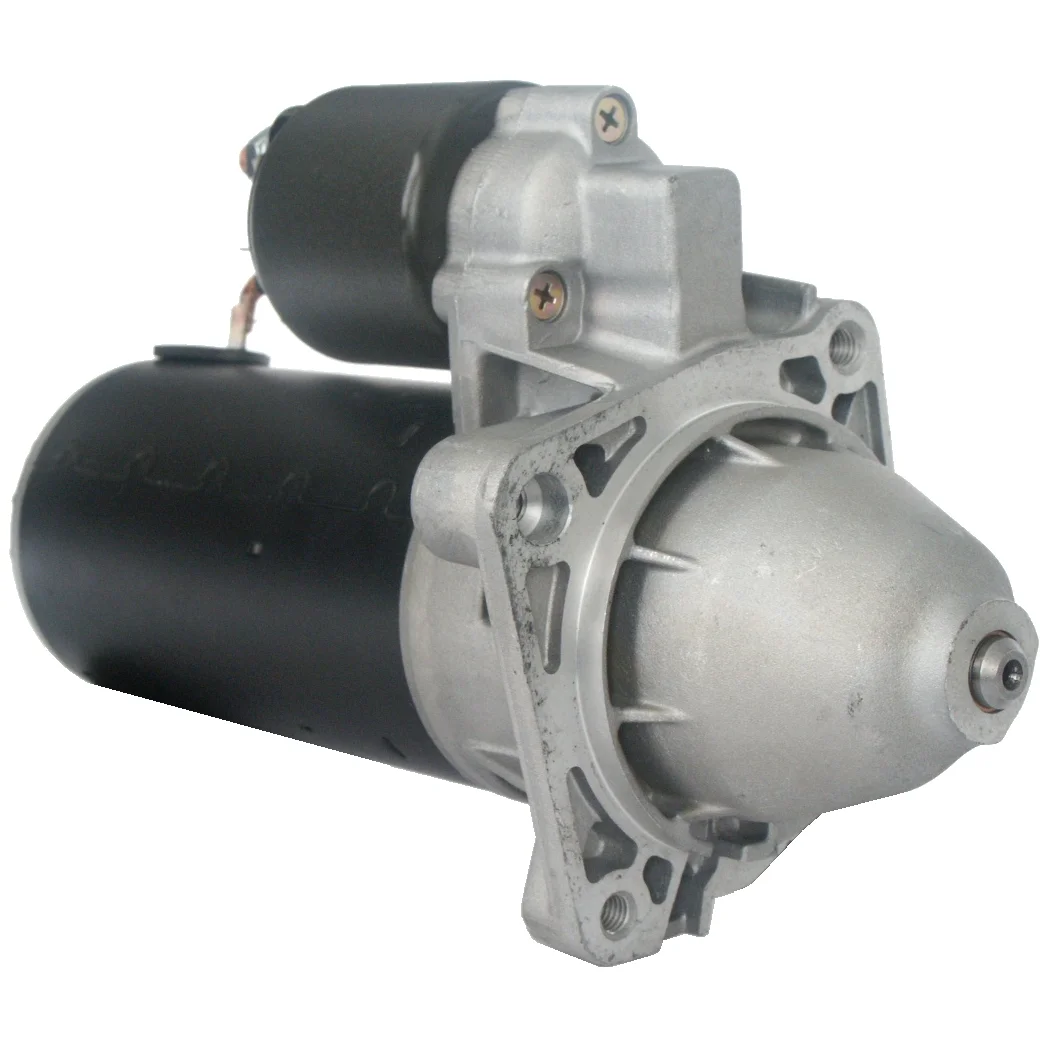

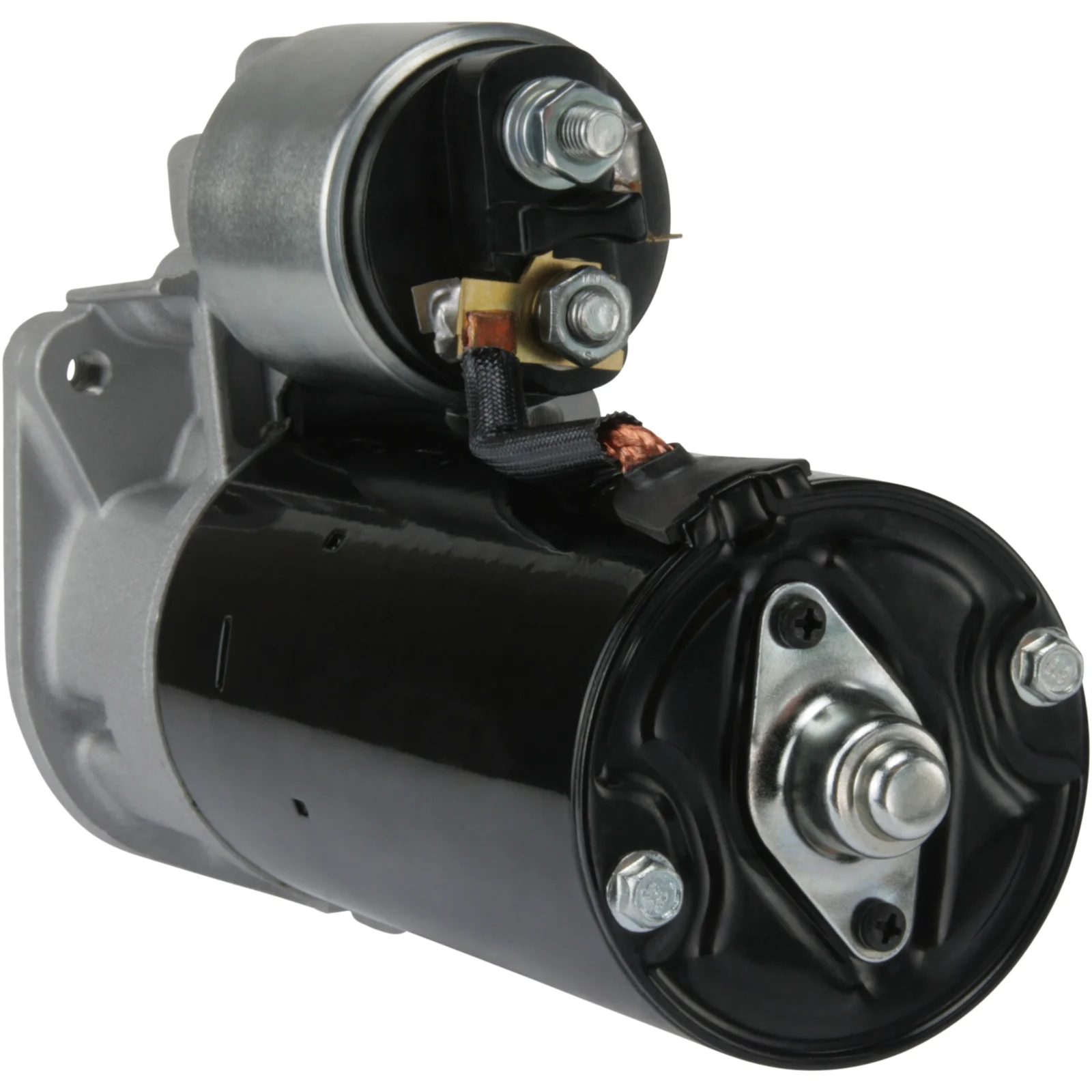

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111619

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 1.7
Mounting flange: 82.50
Drive distance: 23.00
Mounting hole 3 mm: M8
Distance / back: 192.00
Distance / front: 62.50
Number / teeth: 10
B+: M8
Position / 50: 15
Terminal 50: 6.30
Gear type: GR
Distance 2: 75.50
Distance 3: 79.50
Distance mm: 114.00
Rotation: CW
Total length mm: 263.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (3)

Files

  • OEM
    cs374, d7r42, F032111619, RGO 111619, 0001110025, 1110025, 0001110082, 0001110125, 5997309, 7580192, 7716766, 8111509, 9141385, 46231601, 46231602, 46446291, 77167660, 77323430

  • Normalised article numbler
    bso7146, cs374, cst10149, d7r42, drs4700, drs6900, f032111619, f042002067, f042s02067, is9330, lrs00665, qs1200, rgo111619, s0433, s0433bosch, str2214, str50113, vs291, 8ea011610381, 8ea726122001, 8ea737373001, 1264, 3614, 4513, 10374, 11197, 11617, 12174r1g, 30212r, 30665n, 30665r, 30666r, 101059, 103272, 103370, 201182, 220216, 220216a, 251053, 253170, 436049, 438053, 726859, 0001110025, 1110025, 0001110082, 0001110125, 1910880, 1914700, 1916900, 5997309, 7580192, 7716766, 8014700, 8016900, 8111509, 9141385, 11014700, 11016900, 35258420, 42014701, 46231601, 46231602, 46446291, 063223332, 77167660, 77323430, 318032102, 318066102, 943251275, 943251856, 944280147, 0986014700, 0986014701, 0986016900, 063521101250, 943251275010, 943251856010, 944280147000
  • Description
    Voltage: 12
    kW: 1.7
    Mounting flange: 82.50
    Drive distance: 23.00
    Mounting hole 3 mm: M8
    Distance / back: 192.00
    Distance / front: 62.50
    Number / teeth: 10
    B+: M8
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: GR
    Distance 2: 75.50
    Distance 3: 79.50
    Distance mm: 114.00
    Rotation: CW
    Total length mm: 263.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      cs374, d7r42, F032111619, RGO 111619, 0001110025, 1110025, 0001110082, 0001110125, 5997309, 7580192, 7716766, 8111509, 9141385, 46231601, 46231602, 46446291, 77167660, 77323430

    • Normalised article numbler
      bso7146, cs374, cst10149, d7r42, drs4700, drs6900, f032111619, f042002067, f042s02067, is9330, lrs00665, qs1200, rgo111619, s0433, s0433bosch, str2214, str50113, vs291, 8ea011610381, 8ea726122001, 8ea737373001, 1264, 3614, 4513, 10374, 11197, 11617, 12174r1g, 30212r, 30665n, 30665r, 30666r, 101059, 103272, 103370, 201182, 220216, 220216a, 251053, 253170, 436049, 438053, 726859, 0001110025, 1110025, 0001110082, 0001110125, 1910880, 1914700, 1916900, 5997309, 7580192, 7716766, 8014700, 8016900, 8111509, 9141385, 11014700, 11016900, 35258420, 42014701, 46231601, 46231602, 46446291, 063223332, 77167660, 77323430, 318032102, 318066102, 943251275, 943251856, 944280147, 0986014700, 0986014701, 0986016900, 063521101250, 943251275010, 943251856010, 944280147000
