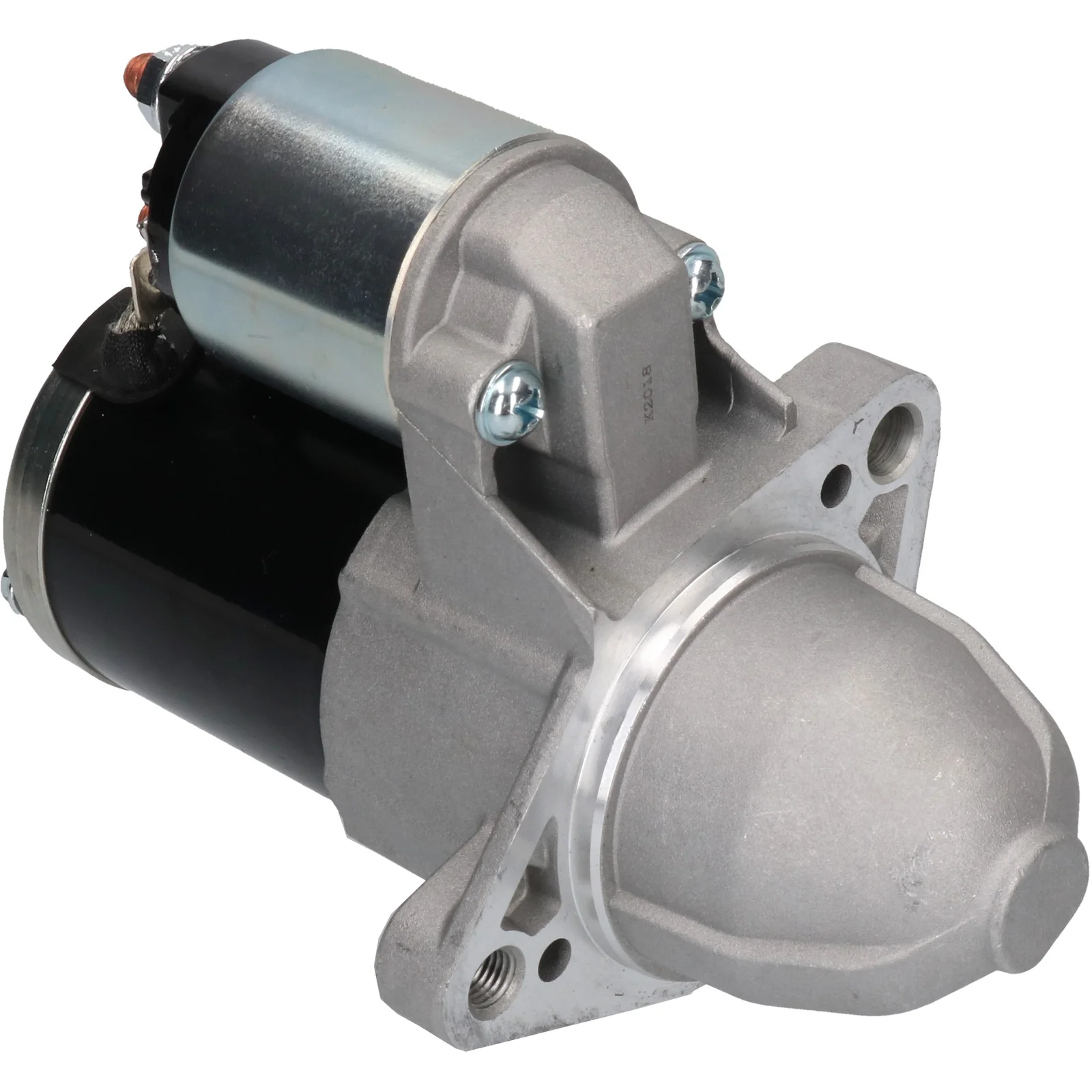

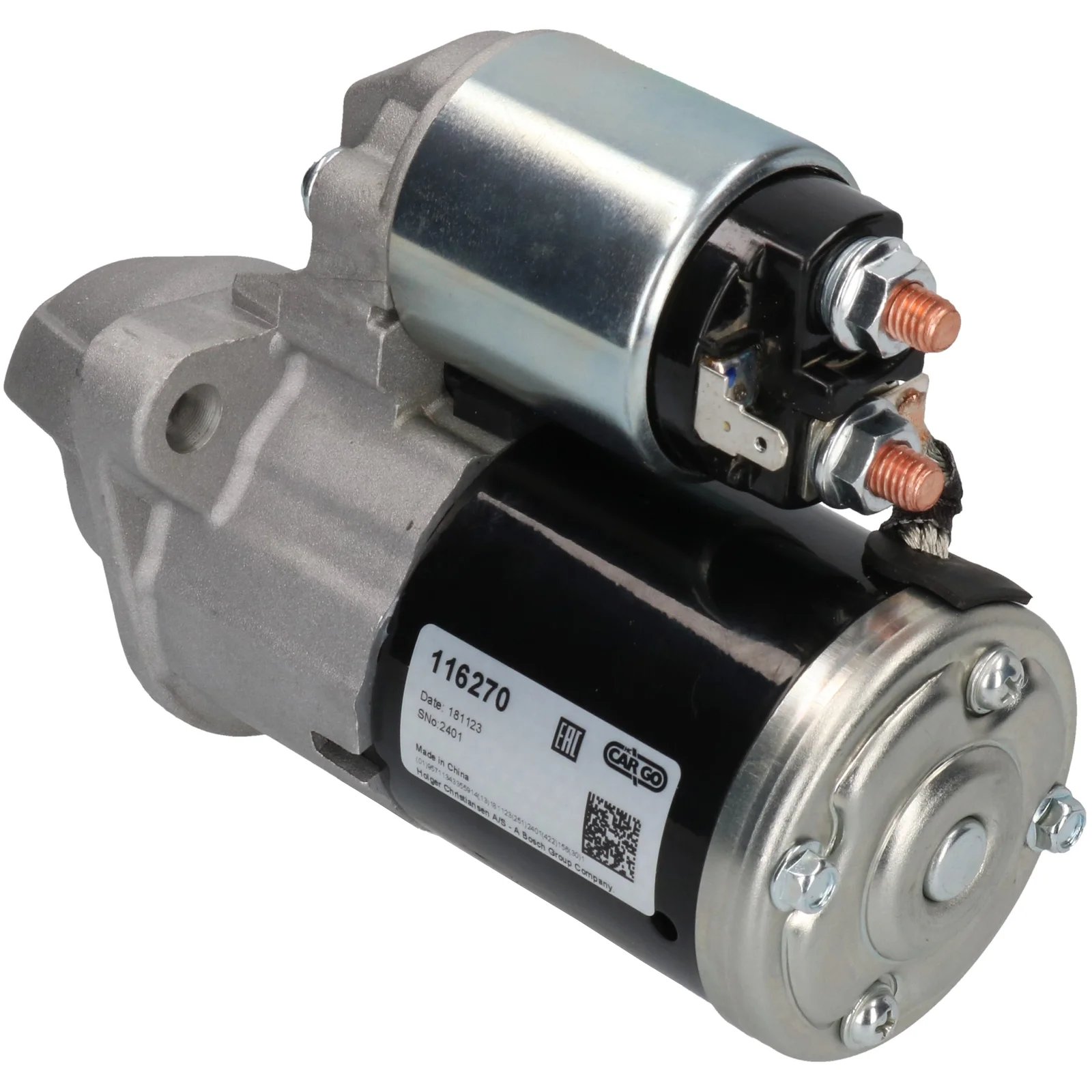

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116270

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mounting flange: 70.00
Drive distance: 28.00
Mounting hole 1 mm: 11.00
Distance/backshell: 131.00
Distance/front: 60.00
Number/teeth: 10
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Distribution in millimeters: 101.50
Rotation: clockwise
Total length in millimeters: 193.00
Number/mounting holes: 2 (1)

Files

  • OEM
    F032116270, M000T38071, M000T38071ZE, M000TD0871ZE, M000TF0072, M000TF0073, M0T38071, m0t38071ze, M0TF0072, RGO 116270, 31100-51k10, 31100-61MA1, 31100-73k10, 95507894

  • Normalised article numbler
    cst35356, drs0644, f032116270, lrs02561, m000t38071, m000t38071ze, m000td0871ze, m000tf0072, m000tf0073, m0t38071, m0t38071ze, m0tf0072, rgo116270, s5288s, 8ea011611791, 30520, 30520os, 254233, 3110051k10, 3110061ma1, 3110073k10, 11040932, 95507894, 180520102, 345030102
  • Description
    Voltage: 12
    kW: 1.2
    Mounting flange: 70.00
    Drive distance: 28.00
    Mounting hole 1 mm: 11.00
    Distance/backshell: 131.00
    Distance/front: 60.00
    Number/teeth: 10
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distribution in millimeters: 101.50
    Rotation: clockwise
    Total length in millimeters: 193.00
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032116270, M000T38071, M000T38071ZE, M000TD0871ZE, M000TF0072, M000TF0073, M0T38071, m0t38071ze, M0TF0072, RGO 116270, 31100-51k10, 31100-61MA1, 31100-73k10, 95507894

    • Normalised article numbler
      cst35356, drs0644, f032116270, lrs02561, m000t38071, m000t38071ze, m000td0871ze, m000tf0072, m000tf0073, m0t38071, m0t38071ze, m0tf0072, rgo116270, s5288s, 8ea011611791, 30520, 30520os, 254233, 3110051k10, 3110061ma1, 3110073k10, 11040932, 95507894, 180520102, 345030102
